Chapter 13 — Power Supply
Physical Appearance
PSU Board
132
Downloaded from
www.Manualslib.com
The PSU comes as a complete unit consisting of a large metal bracket to
which the following parts are factory-fi tted:
• Plastic protection sheet
• Power supply pcb (attached to the bracket using four #T10 Torx screws
and washers)
• AC power cord socket (attached to the bracket using two #T10 Torx
screws and nuts)
• On/off switch (attached to the bracket using snap-locks)
• Label
The bracket is fi tted to the center section and rear plate using a total of fi ve
#T20 Torx screws.
Label

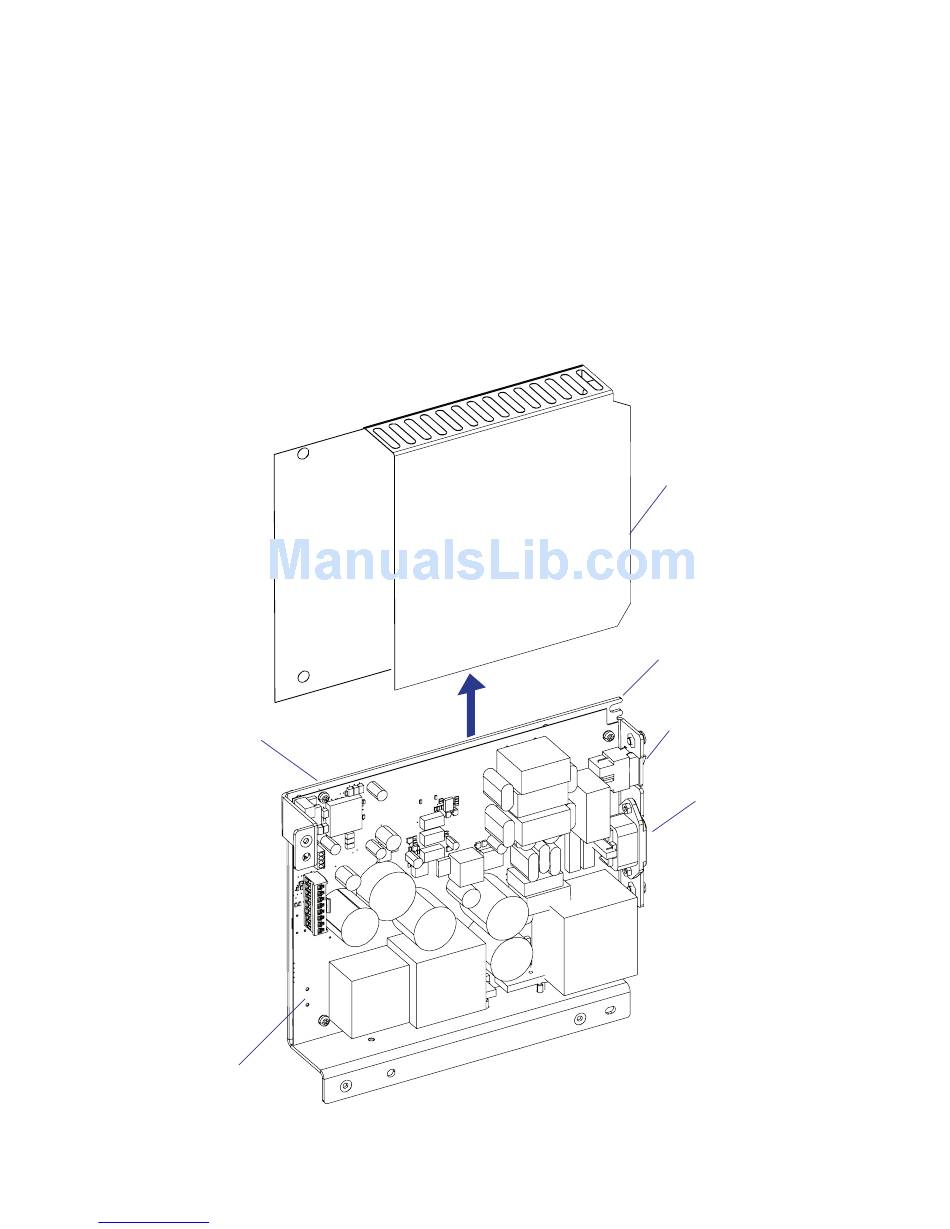

Power supply unit (simplifi ed drawing)
manuals search engine
Protection Sheet
(shown separately)
Bracket
On/Off Switch
Power cord
socket
EasyCoder PX4i and PX6i Service Manual
