Configuration Information - D-Link xStack User Manual

xStack

Configuration Information

The following window is used to view information regarding configuration files saved in the Switch. The Switch can hold two
configuration files in its memory. Configuration Files can be uploaded to the Switch using the TFTP services located in the
Administration folder.
To view this window, click, Save Services > Configure Information, as shown below:
This window holds the following information:
Parameter Description
ID States the image ID number of the configuration file in the Switch's memory. The Switch can store
2 configuration files for use. Image ID 1 will be the default boot up configuration file for the Switch
unless otherwise configured by the user.
Version States the firmware version.
Size States the size of the corresponding configuration file, in bytes.
Update Time States the specific time the configuration file was downloaded to the Switch.
From States the origin of the firmware. There are five ways configuration files may be uploaded to the
Switch.
R – If the IP address has this letter attached to it, it denotes a configuration file upgrade through the
Console Serial Port (RS-232).
T – If the IP address has this letter attached to it, it denotes a configuration file upgrade through
Telnet.
S – If the IP address has this letter attached to it, it denotes a configuration file upgrade through the
Simple Network Management Protocol (SNMP).
W – If the IP address has this letter attached to it, it denotes a configuration file upgrade through
the web-based management interface.
SIM – If the IP address has this letter attached to it, it denotes a configuration file upgrade through
the Single IP Management feature.
User States the user who uploaded the configuration file. This field may read "Anonymous" or
"Unknown" for users that are not identified.
Boot If this field reads an asterisk (*), then this configuration file is the boot up configuration file for the
Switch.
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

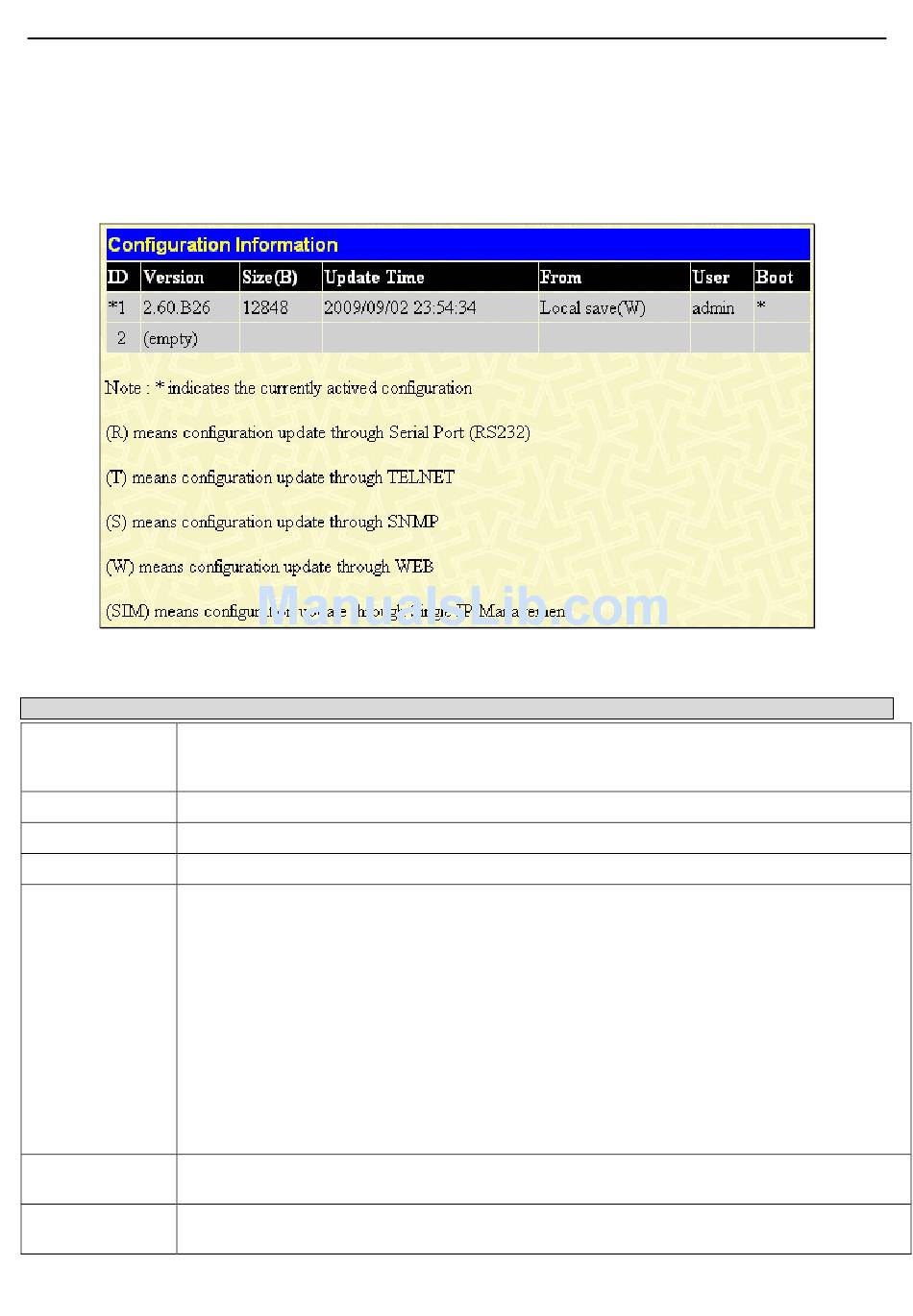

Figure 8 - 4 Configuration Information window
