Multicast Filtering Mode

This window allows users to configure the Switch to forward or filter the Unregistered Groups per VLAN.
To view this window click, L2 Features > Forwarding & Filtering >Multicast Filtering Mode, as shown below:
The following parameters can be set:
Parameter Description
VLAN Name The VLAN to which the specified filtering action applies. Select the All option to apply the action to
all VLANs on the Switch.
Filtering Mode This drop-down menu allows you to select the action the Switch will take when it receives a
multicast packet that requires forwarding to a port in the specified VLAN.
Click Apply to implement changes made.

LLDP

The Link Layer Discovery Protocol (LLDP) allows stations attached to an IEEE 802 LAN to advertise, to other stations attached
to the same IEEE 802 LAN. The major capabilities provided by this system is that it incorporates the station, the management
address or addresses of the entity or entities that provide management of those capabilities, and the identification of the station's
point of attachment to the IEEE 802 LAN required by those management entity or entities.
The information distributed via this protocol is stored by its recipients in a standard Management Information Base (MIB),
making it possible for the information to be accessed by a Network Management System (NMS) through a management protocol
such as the Simple Network Management Protocol (SNMP).
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

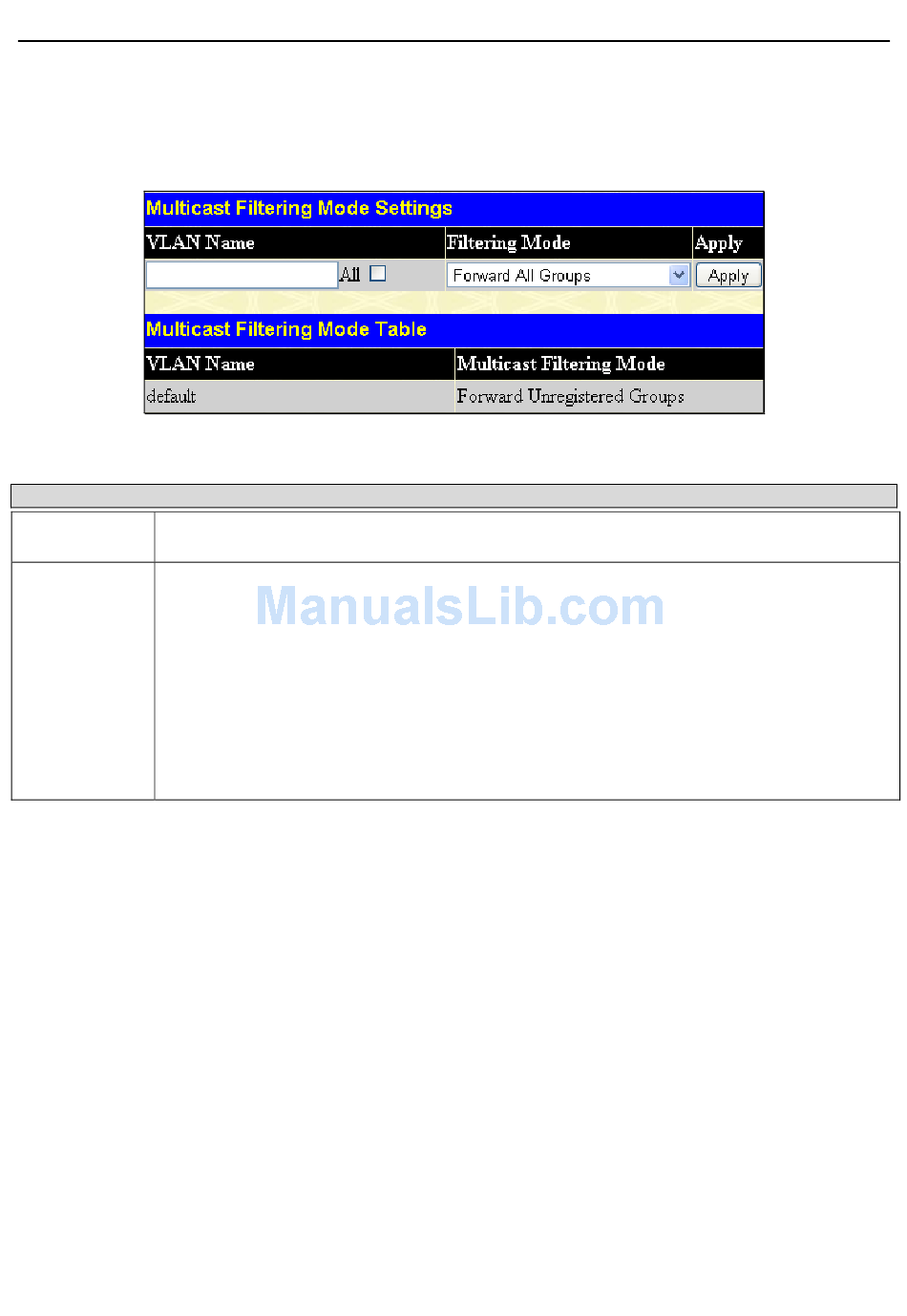

Figure 3 - 57 Multicast Filtering Mode Settings window
•
Forward All Groups – This will instruct the Switch to forward a multicast packet to all
multicast groups residing within the range of ports specified above.
•
Forward Unregistered Groups – This will instruct the Switch to forward a multicast packet
whose destination is an unregistered multicast group residing within the range of ports
specified above.
•
Filter Unregistered Groups – This will instruct the Switch to filter any multicast packets
whose destination is an unregistered multicast group residing within the range of ports
specified above.
