IP Multicast VLAN Replication

The following windows allow the user to configure the settings for IP Multicast VLAN Replication on the Switch.

IP Multicast VLAN Replication Global Settings

This window is used to enable the global settings for IP multicast VLAN replication on the Switch.
To view this window, click Administration > IP Multicast VLAN Replication > IP Multicast VLAN Replication Global
Settings, as shown below:

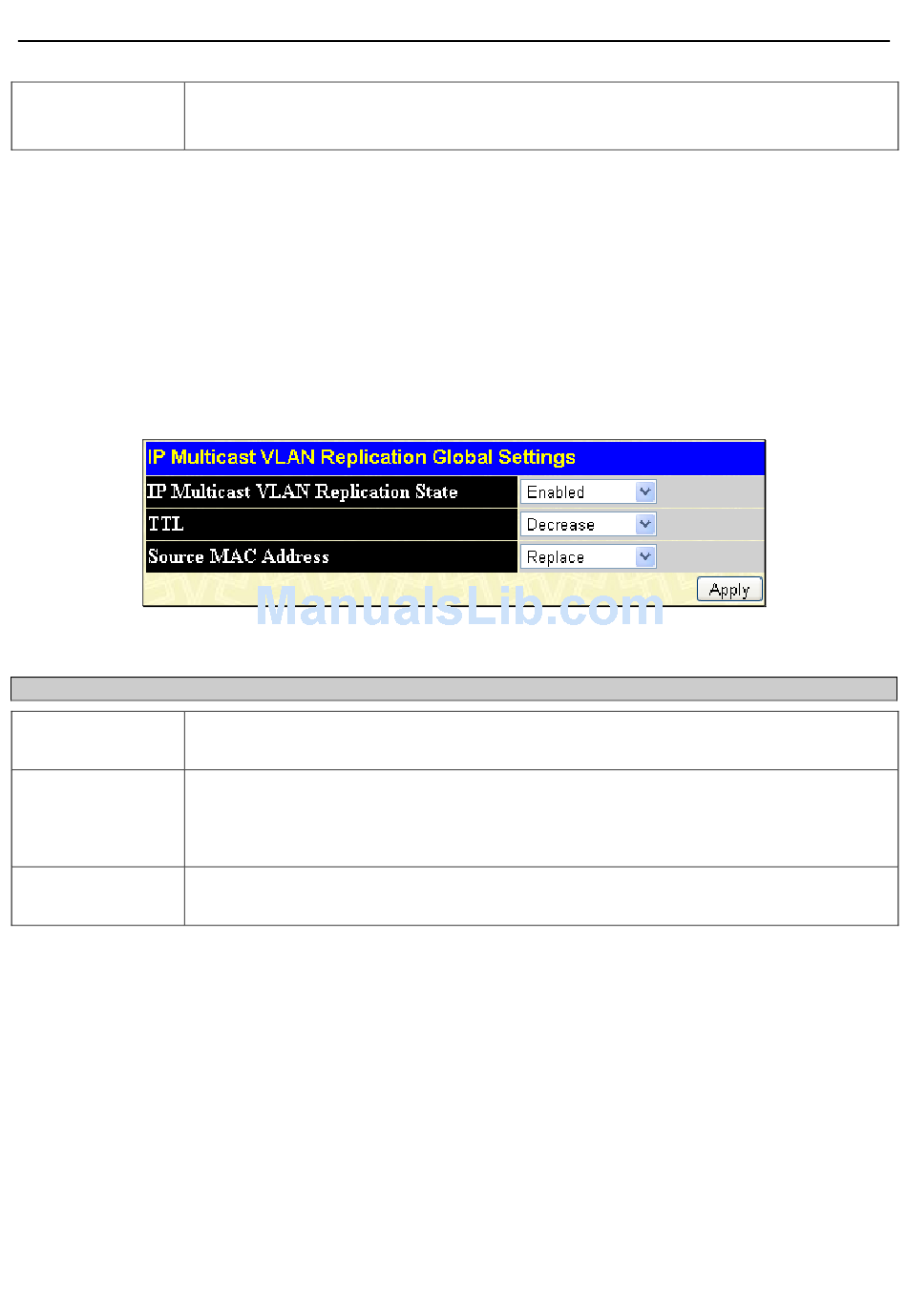

Figure 2 - 97 IP Multicast VLAN Replication Global Settings window
The following fields may be set:
Parameter
IP Multicast VLAN
Replication State
TTL
Source MAC
Address
Click Apply to implement changes made.

IP Multicast VLAN Replication Settings

This window allows the user to create an IP Multicast VLAN replication entry. An IP Multicast VLAN Replication entry defines
what traffic will be replicated and how the packet will be replicated.
To view this window, click Administration > IP Multicast VLAN Replication > IP Multicast VLAN Replication Settings, as
shown below:
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
every time this interval reaches 0, and this information will be included in the sFlow datagrams
that will be sent to the sFlow Analyzer for examination. Ticking the Disabled check box will
disable the counter polling for this entry.
Description
Enable or Disable the IP Multicast VLAN Replication State on the Switch.
TTL specifies whether to decrease the time to live of a packet, the user can choose either
Decrease or No Decrease. When a multicast packet is forwarded across VLANs, the time to
live will be decreased by one. If No Decrease is specified, the time to live will not be
decreased. By default, TTL will be decreased.
Specifies whether to replace the source MAC address of a packet, the user can choose either
Replace or No Replace. By default, the source MAC address will be replaced.
