Port Configuration

To view this window, click Administration >
Port Configuration > Port Configuration, as
shown on the right:
To configure switch ports:
1. Choose the port or sequential range of
ports using the From/To port pull-
down menus.
2. Use the remaining pull-down menus to
configure the parameters described
below:
The following parameters can be configured:
Parameter Description
Unit Choose the switch in the switch stack for which to configure these settings..
From/To Choose the port or sequential range of ports.
State Toggle the State field to either enable or disable a given port or group of ports.
Displays the flow control scheme used for the various port configurations. Ports configured for
Flow Control
full-duplex use 802.3x flow control, half-duplex ports use backpressure flow control, and Auto
ports use an automatic selection of the two. The default is Disabled.
Learning Enable or disable MAC address learning for the selected ports. When Enabled, destination and
source MAC addresses are automatically listed in the forwarding table. When learning is Dis-
abled, MAC addresses must be manually entered into the forwarding table. This is sometimes
done for reasons of security or efficiency. See the section on Forwarding/Filtering for
information on entering MAC addresses into the forwarding table. The default setting is
Enabled.
Medium Type If configuring the Combo ports, this defines the type of transport medium to be used, whether
copper or fiber.
Speed/Duplex
Toggle the Speed/Duplex field to either select the speed and duplex/half-duplex state of the
port. Auto denotes auto-negotiation between 10 and 1000 Mbps devices, in full- or half-duplex.
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

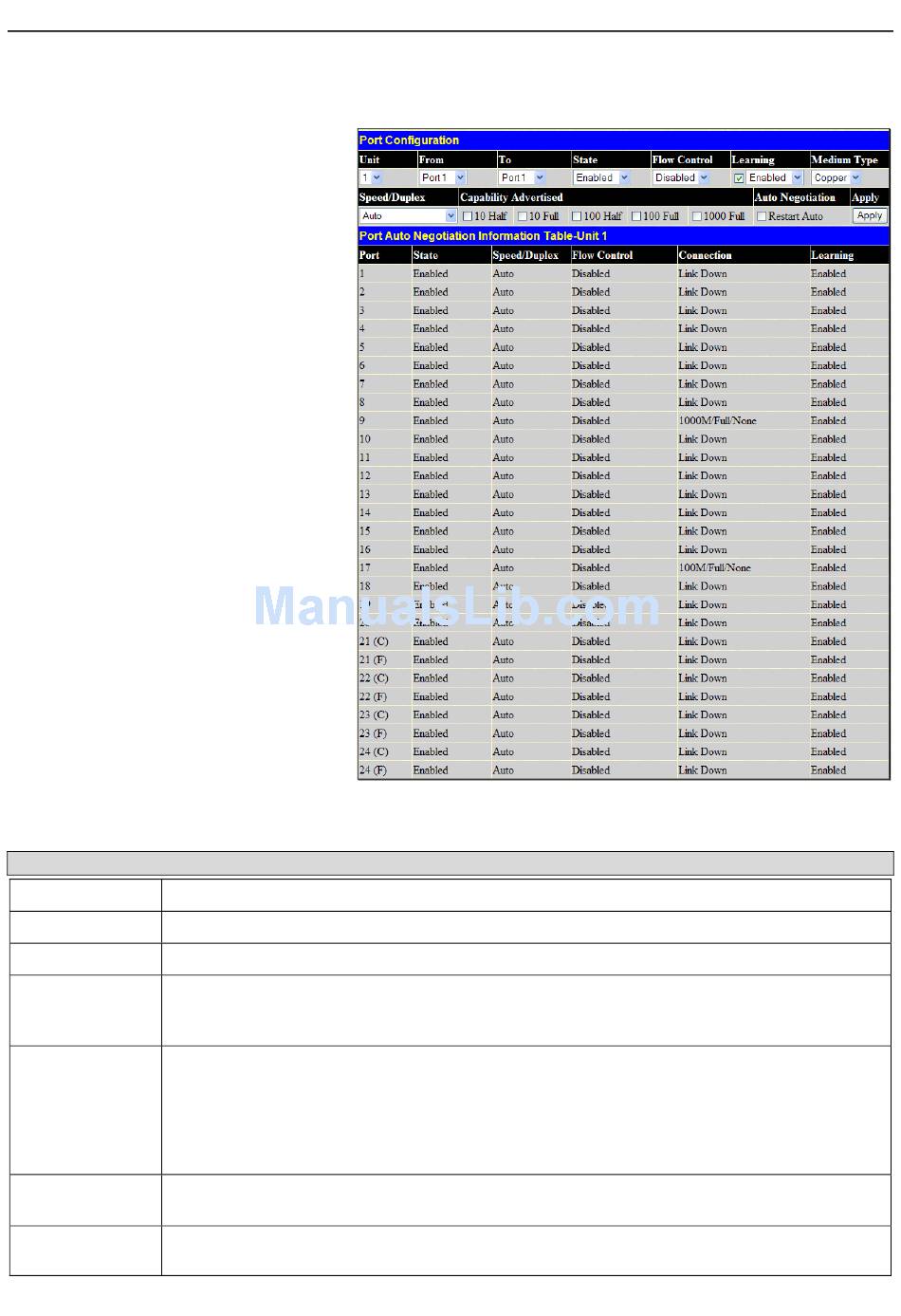

Figure 2 - 13 Port Configuration window
