xStack
Green – When an IP flow is in the green mode, its configurable parameters can be set in the Conform field, where the
packets can have their DSCP field changed. This is an acceptable flow rate for the ACL Flow Meter function.
Yellow – When an IP flow is in the yellow mode, its configurable parameters can be set in the Exceed field. Users
may choose to either Permit or Drop exceeded packets. Users may also choose to change the DSCP field of the
packets.
Red – When an IP flow is in the red mode, its configurable parameters can be set in the Exceed field. Users may
choose to either Permit or Drop exceeded packets. Users may also choose to change the DSCP field of the packets.
Users may also choose to count exceeded packets by clicking the Counter check box. If the counter is enabled, the
counter setting in the access profile will be disabled. Users may only enable two counters for one flow meter at any
given time.

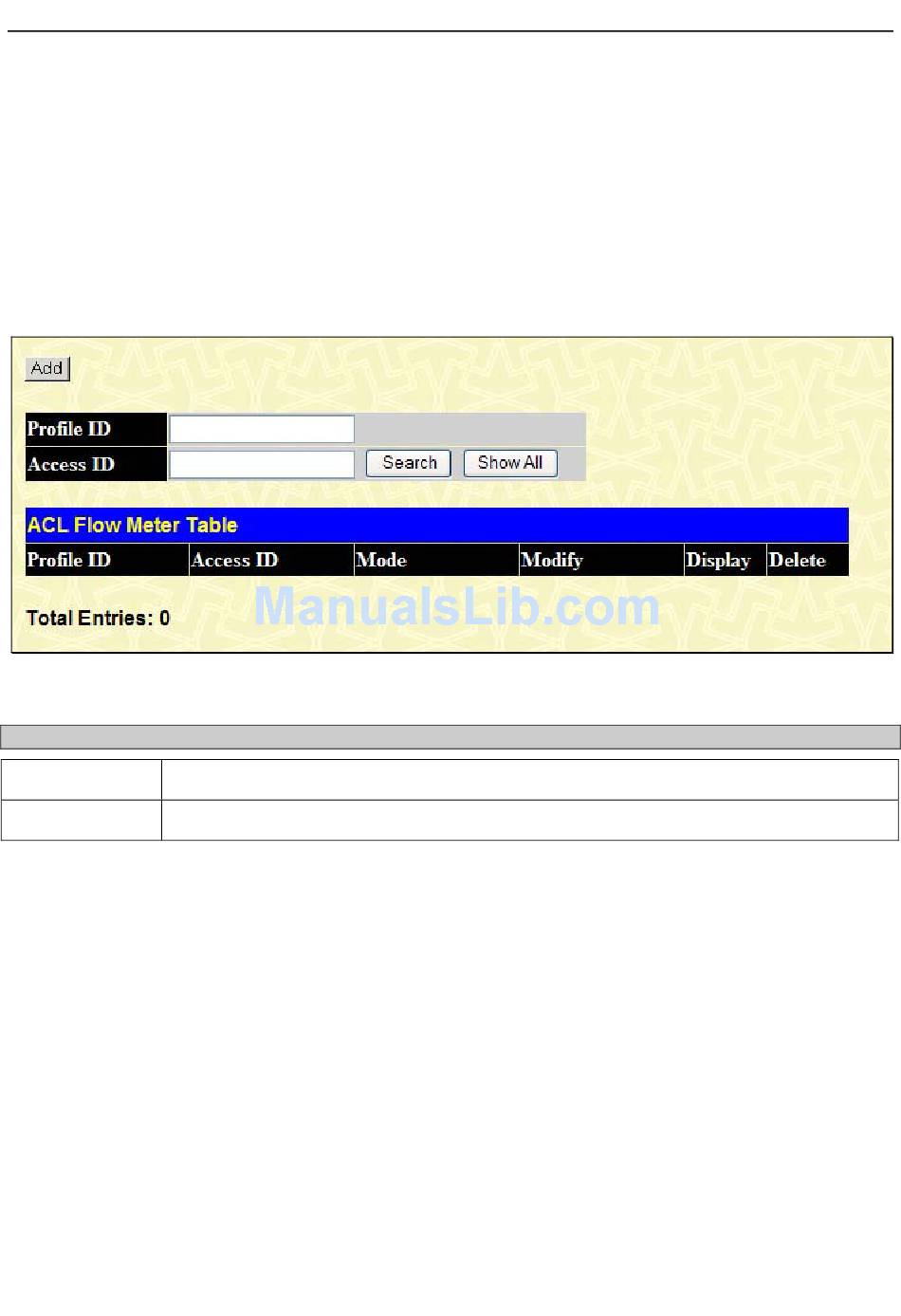

To view this window, click ACL > ACL Flow Meter, as shown below.
The following fields may be configured:
Parameter Description
Profile ID The pre-configured Profile ID for which to configure the Flow Metering parameters.
Access ID The pre-configured Access ID for which to configure the Flow Metering parameters.
The previous window allows users to view the ACL profile and rule that is utilizing the ACL Flow Meter function, and
the mode associated with that profile and rule. Users may search a particular Profile ID or Access ID by entering that
value into one of the available fields and clicking Search. The result should be displayed in the table. Click Show All to
show all ACL Profiles and Access IDs that are utilizing the ACL Flow Metering function. To add an ACL Flow Meter
configuration for an Access Profile and Rule, click the Add button, which will display the following window for users to
configure.
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Figure 5 - 23 ACL Flow Meter window
