The following fields can be configured:
Parameter
VLAN Name
VID (1-4094)
Rx Source Ports
Tx Source Ports
Redirect Port
Modify
To remove an entry, click the corresponding Delete by VLAN icon. To search for an entry enter the appropriate information and
click the Find by VLAN button. To modify an existing entry, click the corresponding Modify button, revealing the following
window to configure:
The following fields can be configured:
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

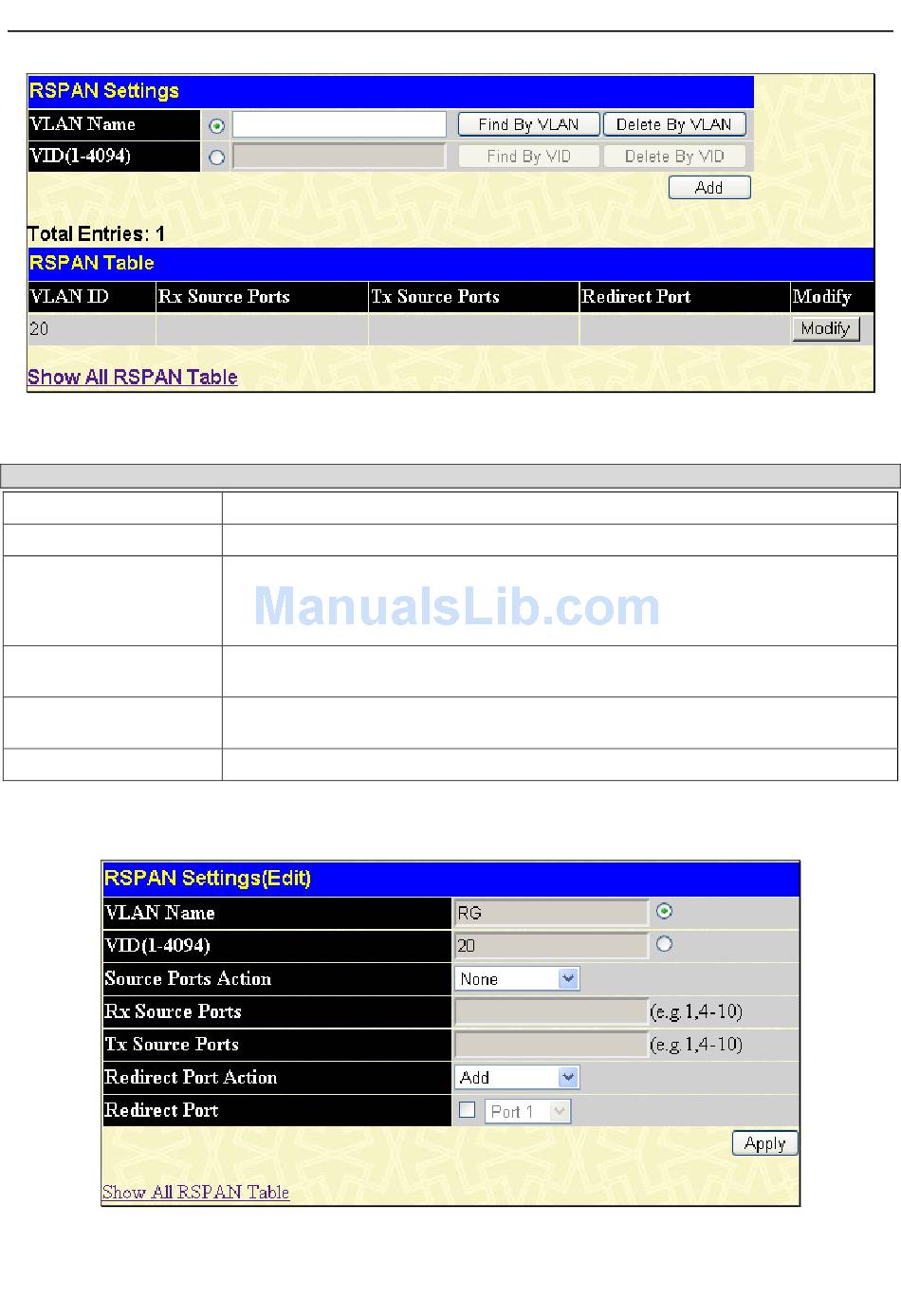

Figure 2 - 71 RSPAN Settings window
Description
Enter the name of the VLAN you wish to Add, Find or Delete.
Enter the VLAN ID of the VLAN you wish to Add Find or Delete.
The goal of Rx source ports is to monitor as much as possible all the packets received
by the source interface or VLAN before any modification or processing is performed by
the switch. A copy of each packet received by the source is sent to the destination port
for that RSPAN session.
The goal of Tx source ports is to monitor as much as possible all the packets sent by the
source interface after all modification and processing is performed by the switch.
RSPAN redirect function will work when RSPAN is enabled and at least one RSPAN
VLAN has been configured with redirect ports.
Click on the corresponding Modify button to edit the entries.
Figure 2 - 72 RSPAN Settings – Edit window
