xStack
To create a new rule set for an access profile click the Add Rule button. A new window is displayed. To remove a previously
created rule, click the corresponding

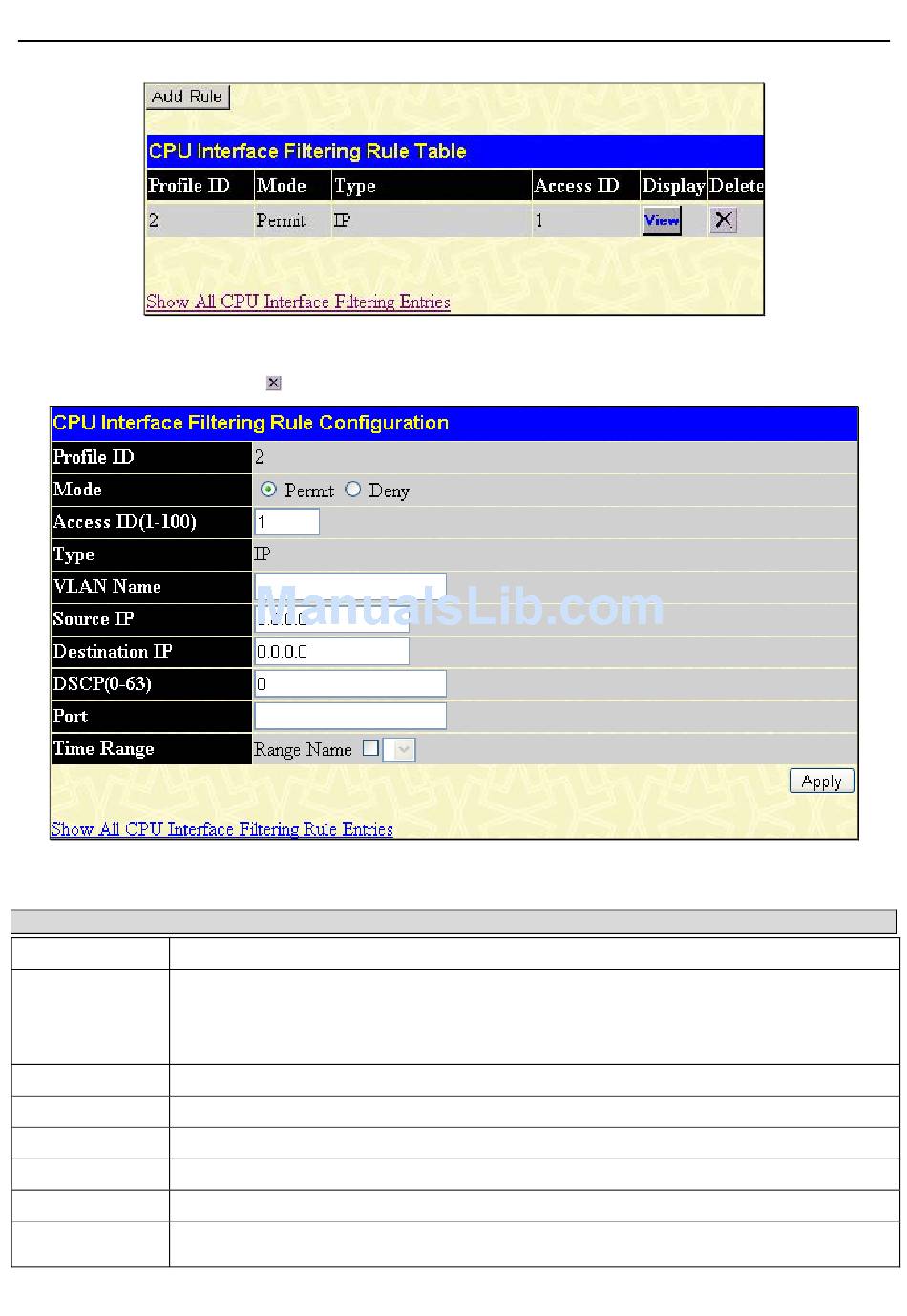

Figure 5 - 39 CPU Interface Filtering Rule Configuration window (IP)
Configure the following Access Rule Configuration settings for IP:
Parameter Description
Profile ID This is the identifier number for this profile set.
Mode Select Permit to specify that the packets that match the access profile are forwarded by the
Switch, according to any additional rule added (see below).
Select Deny to specify that packets that match the access profile are not forwarded by the Switch
and will be filtered.
Access ID Type in a unique identifier number for this access. This value can be set from 1 to 100.
Type Specifies the type of profile that is being created.
VLAN Name Allows the entry of a name for a previously configured VLAN.
Source IP Source IP Address – Enter an IP Address mask for the source IP address.
Destination IP Destination IP Address – Enter an IP Address mask for the destination IP address.
DSCP (0-63) This field allows the user to enter a DSCP value in the space provided, which will instruct the
Switch to examine the DiffServ Code part of each packet header and use this as the, or part of
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Figure 5 - 38 CPU Interface Filtering Rule Table window (IP)
button. The following window is used for the IP Rule configuration.
