CPU Interface Filtering Table

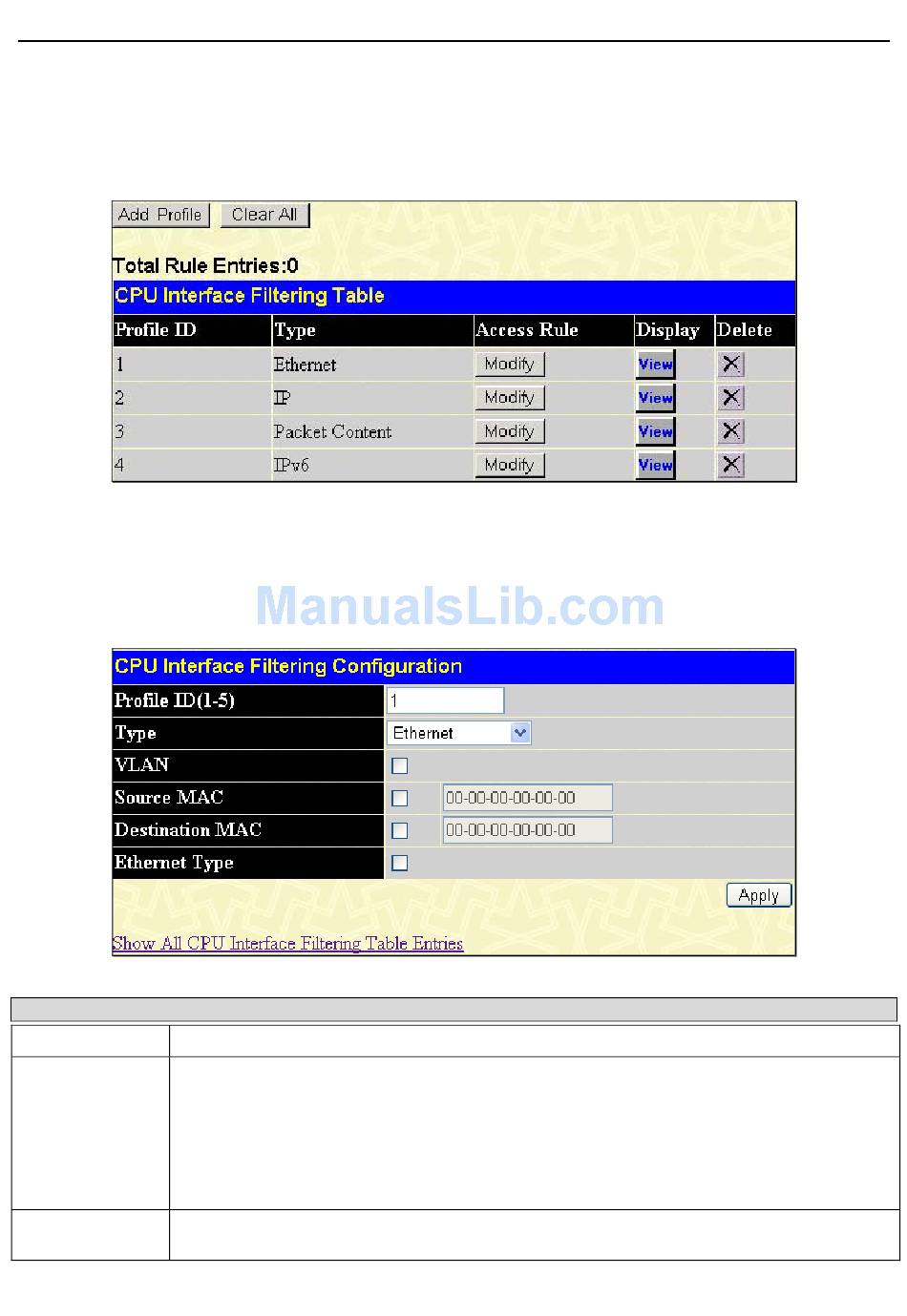

This window displays the CPU Access Profile Table entries created on the Switch.
To view this window, click ACL > CPU Interface Filtering > CPU Interface Filtering Table, as shown below:
To add an entry to this window, click the Add Profile button. This will open the CPU Interface Filtering Configuration
window, as shown below. To remove all CPU Interface Filtering Table entries, click the Clear All button. There are four Access
Profile Configuration windows; one for Ethernet (or MAC address-based) profile configuration, one for IP address-based profile
configuration, one for the Packet Content Mask and one for IPv6. You can switch between the four Access Profile Configuration
windows by using the Type drop-down menu. The window shown below is the Ethernet CPU Interface Filtering
Configuration window.
Figure 5 - 28 CPU Interface Filtering Configuration window (Ethernet)
Parameter Description
Profile ID (1-5) Type in a unique identifier number for this profile set. This value can be set from 1 to 5.
Type Select profile based on Ethernet (MAC Address), IP address, IPv6 address or packet content
mask. This will change the menu according to the requirements for the type of profile.
Select Ethernet to instruct the Switch to examine the layer 2 part of each packet header.
Select IP to instruct the Switch to examine the IP address in each frame's header.
Select Packet Content Mask to specify a mask to hide the content of the packet header.
Select IPv6 to instruct the Switch to examine the IPv6 address in each frame's header.
VLAN Selecting this option instructs the Switch to examine the VLAN identifier of each packet header
and use this as the full or partial criterion for forwarding.
®
