xStack
This screen will aid the user in configuring the Switch to mask packet headers beginning with the offset value specified. The
following fields are used to configure the Packet Content Mask:
Parameter Description
Profile ID (1-5) Type in a unique identifier number for this profile set. This value can be set from 1 to 5.
Type Select profile based on Ethernet (MAC Address), IP address, IPv6 address or packet content
mask. This will change the menu according to the requirements for the type of profile.
Select Ethernet to instruct the Switch to examine the layer 2 part of each packet header.
Select IP to instruct the Switch to examine the IP address in each frame's header.
Select Packet Content Mask to specify a mask to hide the content of the packet header.
Select IPv6 to instruct the Switch to examine the IPv6 address in each frame's header.
Offset This field will instruct the Switch to mask the packet header beginning with the offset value
specified:
Click Apply to implement changes made.
To view the settings of a previously correctly created profile, click
following window:

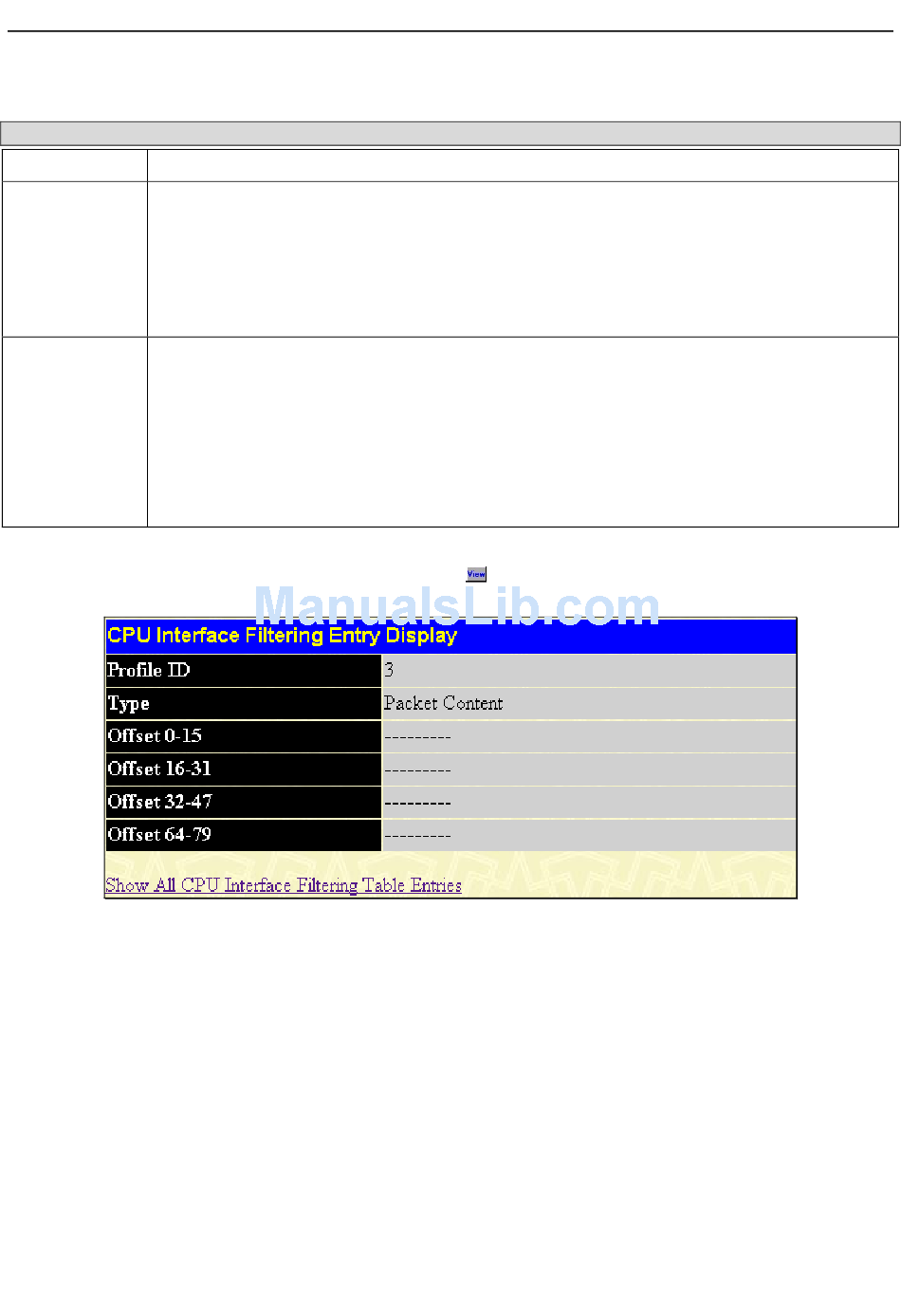

Figure 5 - 33 CPU Interface Filtering Display window (Packet Content)
To establish the rule for a previously created CPU Access Profile:
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
• value (0-15) – Enter a value in hex form to mask the packet from the beginning of the
packet to the 15th byte.
• value (16-31) – Enter a value in hex form to mask the packet from byte 16 to byte 31.
• value (32-47) – Enter a value in hex form to mask the packet from byte 32 to byte 47.
• value (48-63) – Enter a value in hex form to mask the packet from byte 48 to byte 63.
• value (64-79) – Enter a value in hex form to mask the packet from byte 64 to byte 79.
in the CPU Interface Filtering Table window to view the
