ACL Mode is that it ensures better security by checking both ARP Packets and IP Packets. However, doing so requires the use of
ACL rules. ACL Mode can be viewed as an enhanced version of ARP Mode because ARP Mode is enabled by default when ACL
Mode is selected.
Strict and Loose State
Other than ACL and ARP mode, users can also configure the state on a port for granular control. There are two states: Strict and
Loose, and only one state can be selected per port. If a port is set to Strict state, all packets entering the port are denied (dropped)
by default. The switch will continuously compare all IP and ARP packets it receives on that port with its IMPB entries. If the IP-
MAC pair in the packet matches the IMPB entry, the MAC address will be unblocked and subsequent packets sent from this client
will be forwarded. On the other hand, if a port is set to Loose state, all packets entering the port are permitted (forwarded) by
default. The switch will continuously compare all ARP packets it receives on that port with its IMPB entries. If the IP-MAC pair
in the ARP packet does not match the IMPB white list, the MAC address will be blocked and subsequent packets sent from this
client will be dropped.
DHCP Snooping Option
If DHCP snooping is enabled, the switch learns IP-MAC pairs by snooping DHCP packets automatically and then saves them to
the IP-MAC-Port Binding white list. This enables a hassle-free configuration because the administrator does not need to manually
enter each IMPB entry. A prerequisite for this is that the valid DHCP server's IP-MAC pair must be configured on the switch's
IMPB while list first; otherwise the DHCP server packets will be dropped. DHCP snooping is generally considered to be more
secure because it enforces all clients to acquire IP through the DHCP server. Additionally, it makes IP Information auditable
because clients cannot manually configure their own IP address.

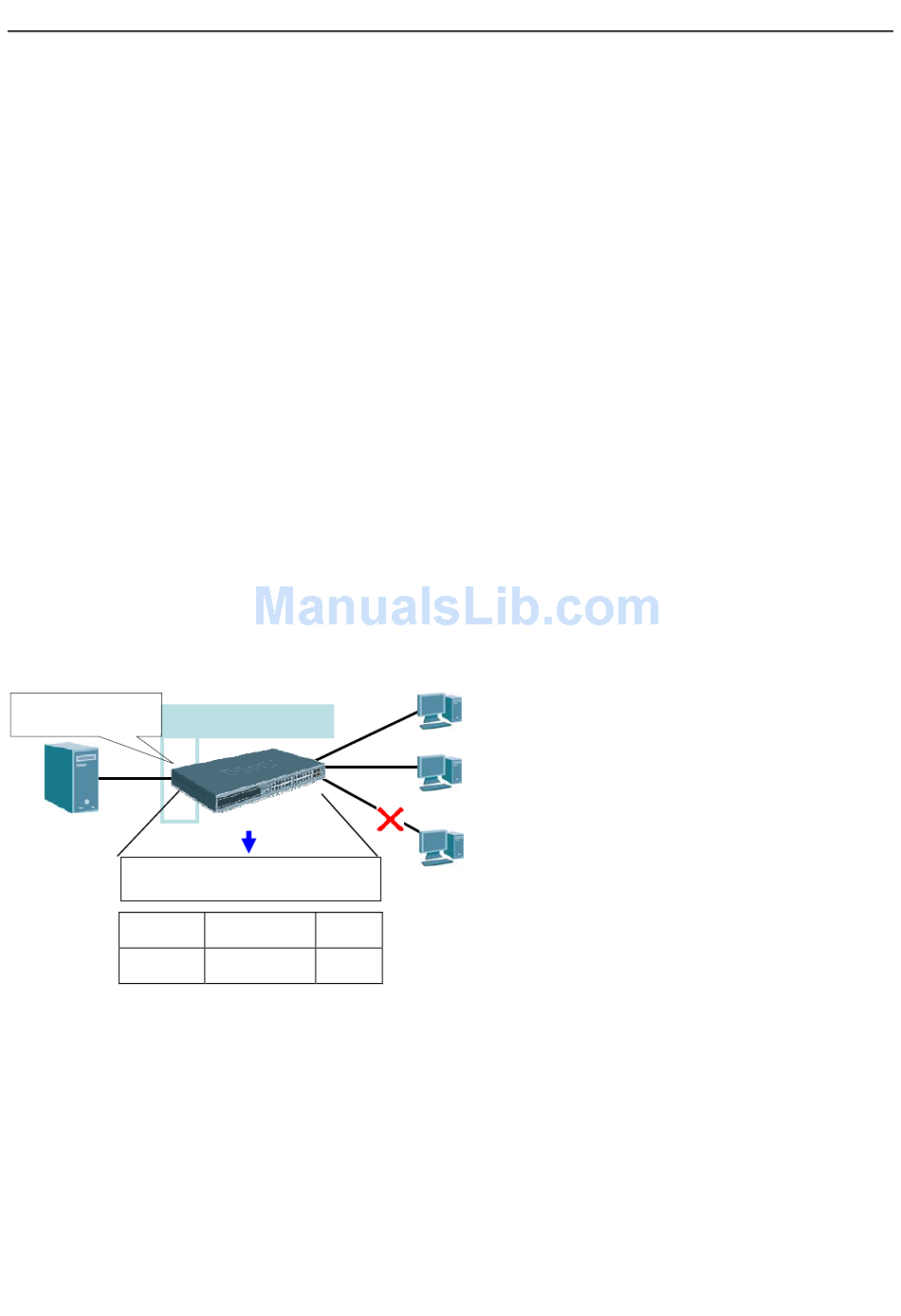

An example of DHCP snooping in which PC-A and PC-B get their IP addresses from a DHCP server is depicted below. The
switch snoops the DHCP conversation between PC-A, PC-B, and the DHCP server. The IP address, MAC address, and connecting
ports of both PC-A and PC-B are learned and stored in the switch's IMPB white list. Therefore, these PCs will be able to connect
to the network. Then there is PC-C, whose IP address is manually configured by the user. Since this PC's IP-MAC pair does not
match the one on Switch's IMPB white list, traffic from PC-C will be blocked.
Doesn't match the
White list, block PC-C
DHCP Server
Address Learning
192.168.1.1
192.168.1.2

IMP Global Settings

This window is used to enable or disable the global IMPB settings: Trap Log State and DHCP Snoop state, on the Switch.
The Trap/Log field will enable and disable the sending of trap / log messages for IMPB. When enabled, the Switch will send
traps and log messages when an ARP packet is received that doesn't match the IP-MAC binding entries configured on the Switch.
The DHCP Snoop State field will enable and disable the DHCP Snooping option.
To view this window, click Security > IP-MAC-Port Binding > IMP Global Settings:
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
IMP Binding Enabled
White List
00E0-0211-111 Port 1
00E0-0211-222 Port 2
PC-A
192.168.1.1
00E0-0211-1111
PC-B
192.168.1.2
00E0-0211-2222
PC-C
192.168.1.1
00E0-0211-3333
(IP manually configured by user)
225
(IP assigned by DHCP for
PC-A and PC-B)
