Mirroring within the Switch Stack

Users may configure mirroring between switches in the switch stack but certain conditions and restrictions apply.
1. When mirroring is configured in the stack, the primary master and the backup master will save and synchronize these
mirroring configurations in their respective databases. Therefore, if the primary master is removed, the backup master
will still hold the mirroring configurations set.
2. If the device hot-removed from the stack holds the target port for the mirroring function, the primary master will disable
the mirroring function for the whole stack.
3. Stacking ports cannot be source ports or target mirror ports.

System Log

This section contains information for configuring various attributes and properties for System Log Configurations, including
System Log Host and System Log Save Mode Settings.

System Log Host

This window is used to send syslog messages to up to four designated servers using the System Log Server.
To view this window, click System Log Settings > System Log Host, as shown below:
The parameters configured for adding and editing System Log Server settings are the same. See the table below for a description.
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

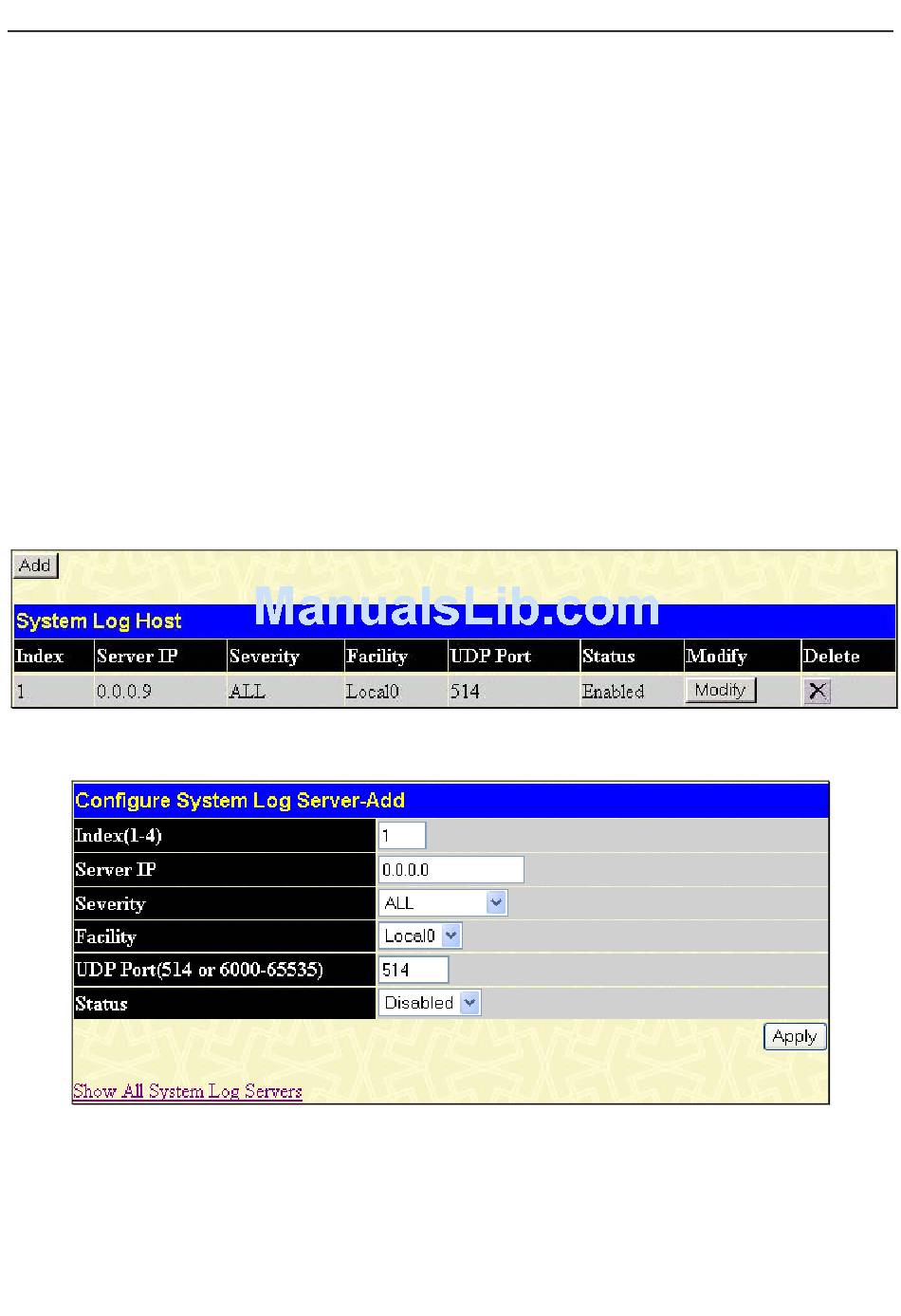

Figure 2 - 25 System Log Host list
Figure 2 - 26 Configure System Log Server – Add window
