Enter a name for the IP Multicast Replication entry and click Apply. The new entry will appear in the IP Multicast VLAN
Replication Entries Table. The user can then configure the Source and Destination settings by clicking the corresponding View
buttons as shown below:
This table is used to configure the traffic to be replicated by the IP Multicast VLAN replication entry. The traffic is described by a
source VLAN, a list of Multicast Group addresses and an optional source IP address associated with the multicast group.

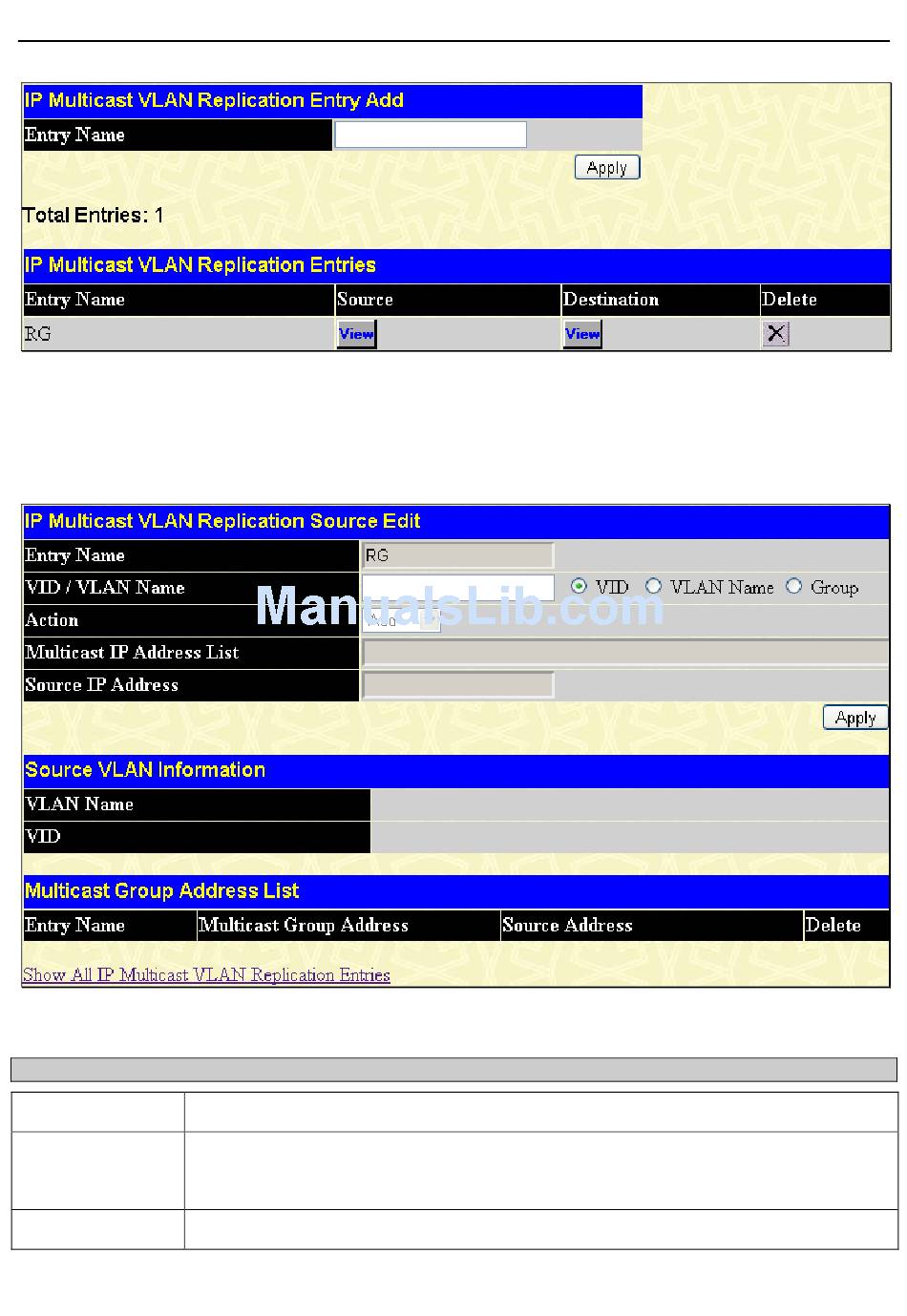

Figure 2 - 99 IP Multicast VLAN Replication Source Edit window
The following fields may be set:
Parameter
Entry Name
VID / VLAN Name
Action
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Figure 2 - 98 IP Multicast VLAN Replication Settings window
Description
The name of the previously created IP Multicast VLAN Replication entry will be displayed.
Select VID and enter a source VLAN ID. Select VLAN Name and enter a source VLAN Name.
When Group is selected, the user can configure the Action, Multicast IP Address List and the
Source IP Address in the following fields.
The user can specify to either Add or Delete the IP multicast address.
