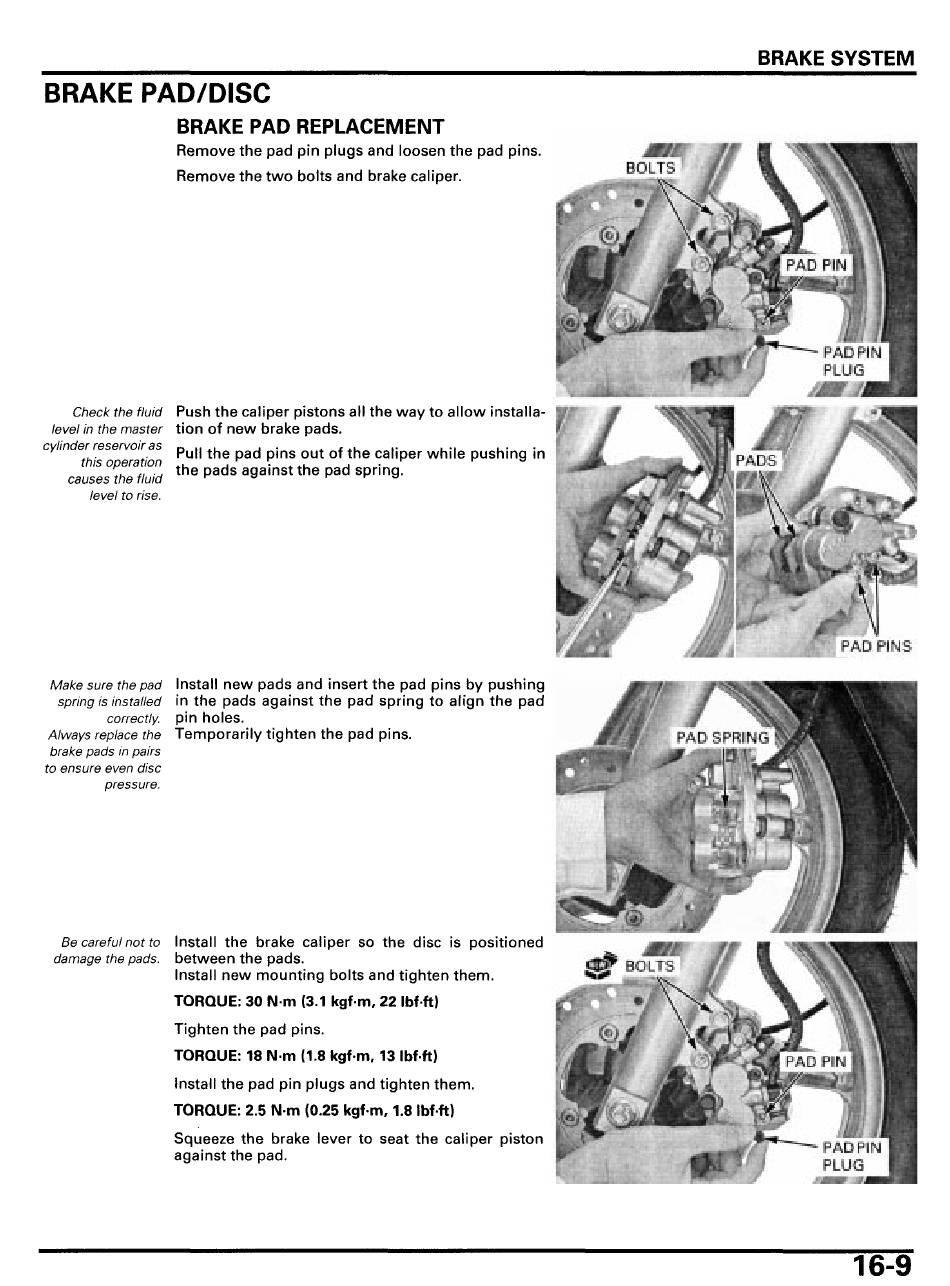

BRAKE SYSTEM
BRAKE PAD/DISC
BRAKE PAD REPLACEMENT
Remove the pad pin plugs and loosen the pad pins.
Remove the two bolts and brake caliper.
Check the fluid
Push the caliper pistons all the way to allow installa-
level in the master
tion of new brake pads.
Pull the pad pins out of the caliper while pushing in
cylinder reservoir as
the pads against the pad spring.
this operation
causes the fluid
level to rise.
Make sure the pad
Install new pads and insert the pad pins by pushing
spring is installed
in the pads against the pad spring to align the pad
Always replace the
Temporarily tighten the pad pins.
brake pads in pairs
to ensure even disc
pressure.
correctly.
pin holes.
Becarefulnot to
Install the brake caliper so the disc is positioned
damage the pads.
between the pads.
Install new mounting bolts and tighten them.
TORQUE: 30 N-m (3.1 kgf-m, 22 Ibf.ft)
Tighten the pad pins.
TORQUE: 18 N-m (1.8 kgf-m, 13 Ibf4t)
Install the pad pin plugs and tighten them.
TORQUE: 2.5 N-m (0.25 kgf-m, 1.8 Ibf-ft)
Squeeze the brake lever to seat the caliper piston
against the pad.
16-9
