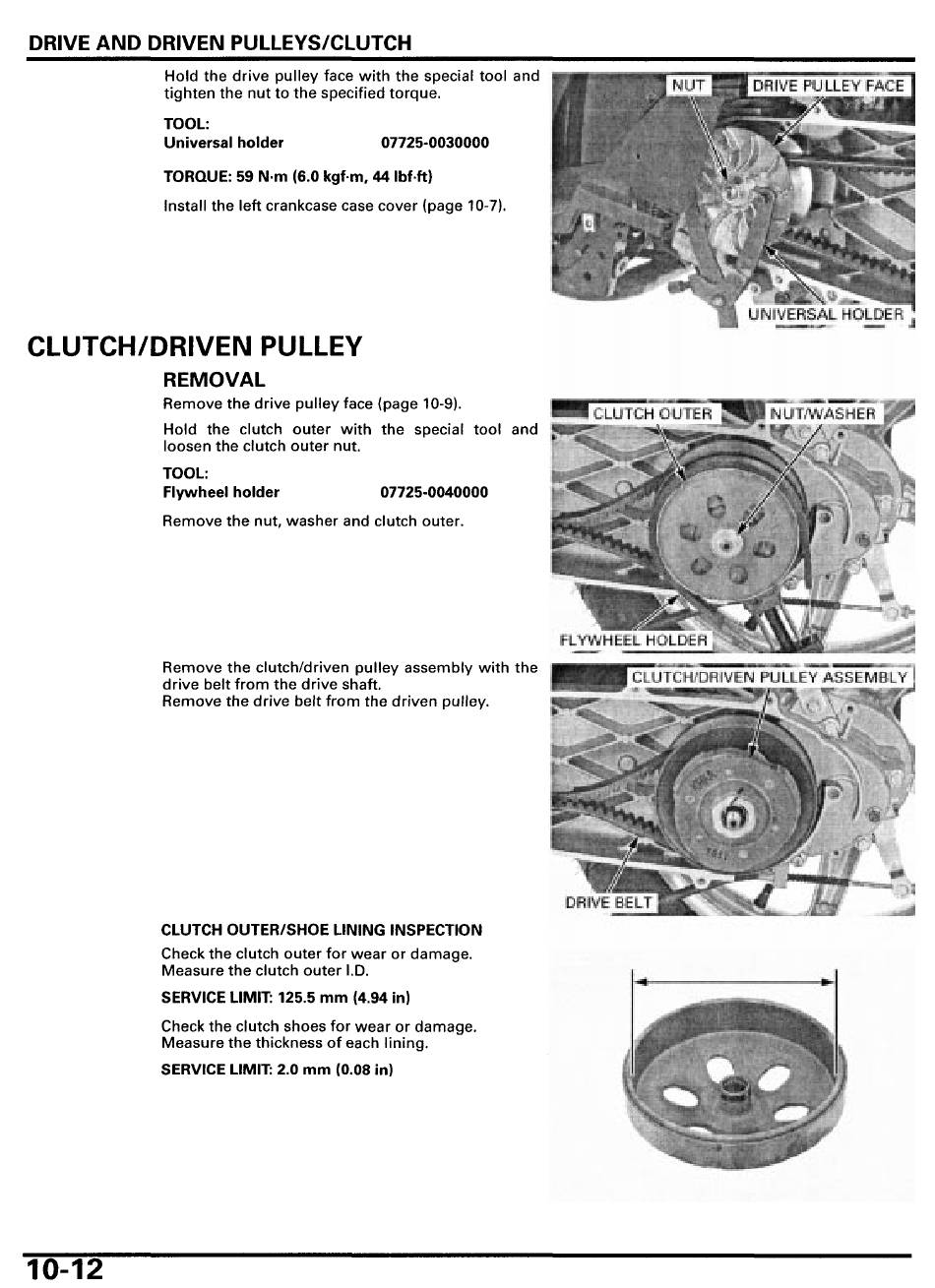

DRIVE AND DRIVEN PULLEYSICLUTCH
Hold the drive pulley face with the special tool and
tighten the nut to the specified torque.
TOOL:
Universal holder
07725-0030000
TORQUE: 59 N-m (6.0 kgf-m, 44 Ibf4-t)
Install the left crankcase case cover (page 10-7).
CLUTCHIDRIVEN PULLEY
REMOVAL
Remove the drive pulley face (page 10-9).
Hold the clutch outer with the special tool and
loosen the clutch outer nut.
TOOL:
Flywheel holder
07725-0040000
Remove the nut, washer and clutch outer.
Remove the clutch/driven pulley assembly with the
drive belt from the drive shaft.
Remove the drive belt from the driven pulley.
CLUTCH OUTERISHOE LINING INSPECTION
Check the clutch outer for wear or damage.
Measure the clutch outer I.D.
SERVICE LIMIT 125.5 mm (4.94 in)
Check the clutch shoes for wear or damage.
Measure the thickness of each lining.
SERVICE LIMIT 2.0 mm
(0.08
in)
