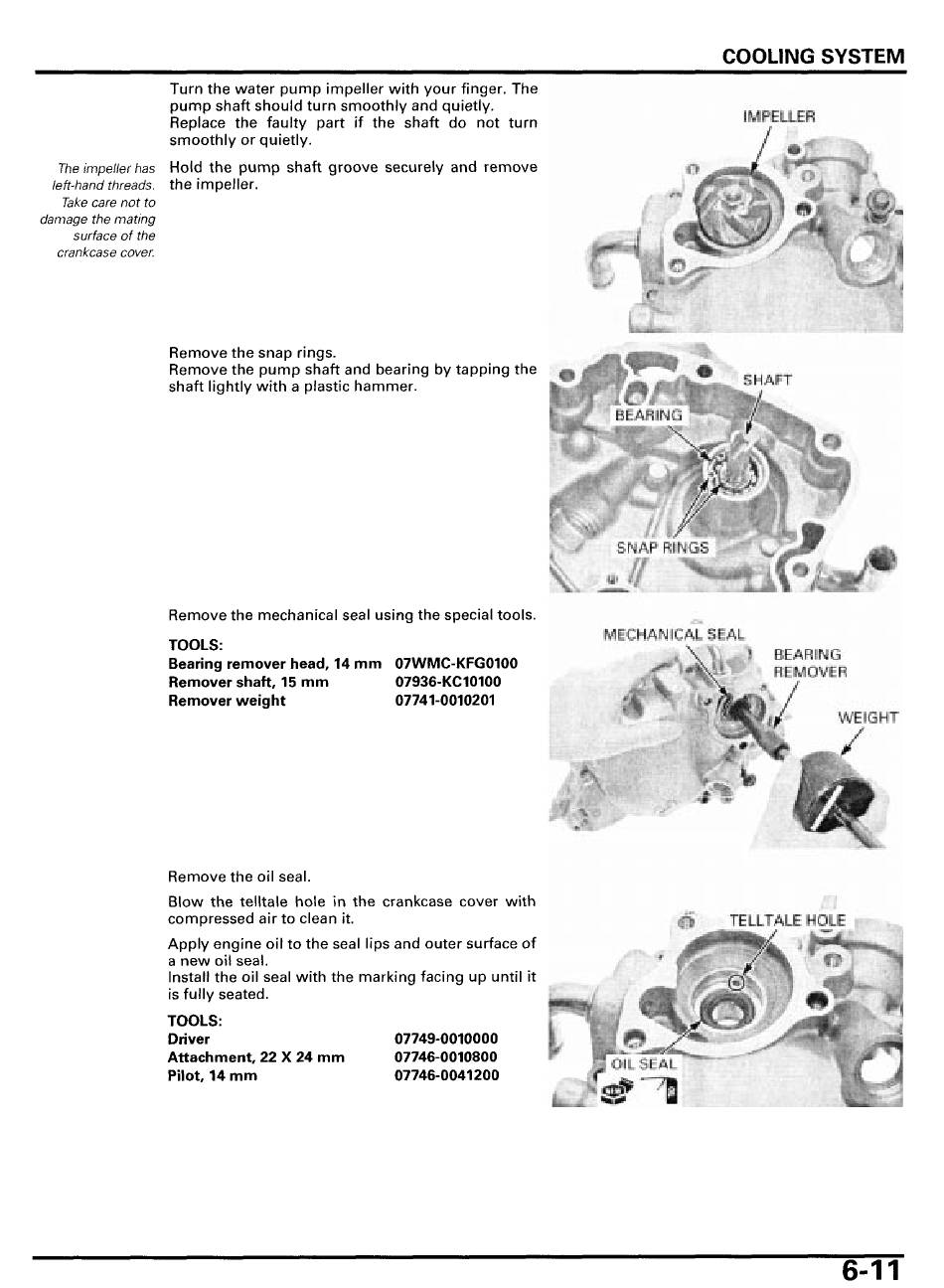

Honda SH125 Manual page 142

Turn the water pump impeller with your finger. The
pump shaft should turn smoothly and quietly.
Replace the faulty part if the shaft do not turn
smoothly or quietly.
The impeller has
Hold the pump shaft groove securely and remove
Take care not to
damage the mating
surface of the
crankcase cover.
/eft-hand threads.
the impeller.
Remove the snap rings.
Remove the pump shaft and bearing by tapping the
shaft lightly with a plastic hammer.
Remove the mechanical seal using the special tools.
TOOLS:
Bearing remover head, 14 m m 07WMC-KFG0100
Remover shaft, 15 mm 07936-KC10100
Remover weight 07741-0010201
Remove the oil seal.
Blow the telltale hole in the crankcase cover with
compressed air to clean it.
Apply engine oil to the seal lips and outer surface of
a new oil seal.
Install the oil seal with the marking facing up until it
is fully seated.
TOOLS:
Driver 07749-0010000
Attachment, 22 X 24 mm 07746-0010800
Pilot, 14 mm 07746-0041200
6-1 1
