Set-up and pre-delivery service
must be performed by an authorized
Honda motorcycle dealer.
©2004 American Honda Motor Co., Inc. - All Rights Reserved

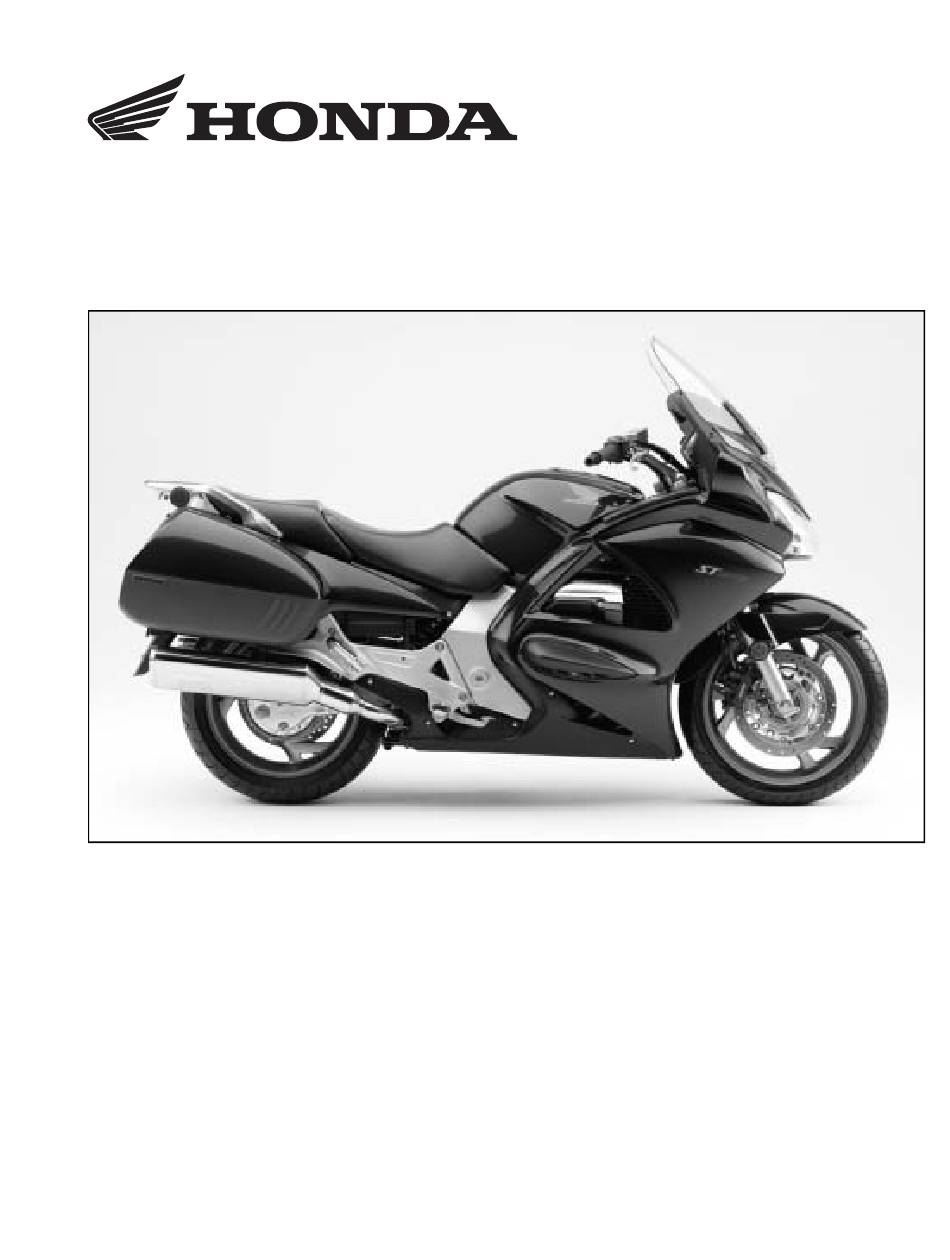

2004 ST1300/A
SET-UP
INSTRUCTIONS
MPD 10515 (0403)
Issued: March 2004
Reorder: S0107

Advertisement

loading

Summary of Contents for Honda ST1300 2004

  • Page 1 2004 ST1300/A SET-UP INSTRUCTIONS Set-up and pre-delivery service must be performed by an authorized Honda motorcycle dealer. MPD 10515 (0403) Issued: March 2004 Reorder: S0107 ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 2 To reduce the possibility of a fire or explosion, be careful when working around gasoline or batteries. Use only a nonflammable solvent, not gasoline, to clean parts. Keep all cigarettes, sparks and flames away from the battery and all fuel-related parts. ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 3 Indicates the Pre-delivery section Modifications and Accessories Modifications that you may have made, or should make in the future, to any Honda product, shall be deemed by our company to have been performed at your sole risk and responsibility, and without our company's or the manufacturer's approval, or consent, implied or expressed.
  • Page 4 3. Remove the side braces, wheel, loose parts carton and crate frame. Remove the ties securing the front wheel and loose parts cartons. PARTS PARTS TIES CARTON CARTON ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 5 BRACES of delivery. FRAME BOLTS Remove the nuts, plate, and bolts. NUTS PLATE Using two people, carefully remove the crate frame, being careful not to damage the motorcycle. ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 6 4. Loose Parts Information. Unpack the remaining loose parts and check them against this illustration. Report any damaged or missing parts immediately to American Honda by calling (800) 421-1900, ext. 1. DESCRIPTION PART NUMBER STEP Cover, R, mirror 88111-MCS-G00 Cover, L, mirror...
  • Page 7 Claims for missing loose parts or those damaged during transit should be submitted to American Honda, not the carrier. After completing repairs, submit a Transportation Claim via iN. For complete details, please refer to the Warranty Policy and Procedures Manual.
  • Page 8 Lift the slings just enough to remove the slack. Remove the shipping bolts and washers from BOLT / WASHER the forks; discard the bolts and washers. (discard) ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 9 6 x 16 mm flange bolts. BOLT Torque the bolts. RUBBER WASHER 6 x 20 mm Torque: 9 ft-lbs (1.2 kg-m, 12 N·m) BOLT REFLECTOR 6 mm NUT ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 10: Install The Front Wheel

    Torque: 23 ft-lbs (3.2 kg-m, 31 N·m) Clean both sides of the rear brake disc with a clean shop towel and Pro Honda Brake Cleaner or equivalent. 0.4 - 1.2 mm (0.02 - 0.05 in) ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 11: Install The Mirrors

    RUBBER COVER Check that the mirror rubber cover and mirror cover are installed securely. Complete this installation for both sides of the motorcycle. HOLE TERMINALS SUSPENSION BAND MIRROR COVER ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 12 4 x 6.5 mm IGNITION KEY saddlebag lever lock. SPECIAL SCREWS Remove the ignition switch key from the ignition. Attach the handlebar cover using two 4 x 6.5 mm special screws. HANDLEBAR COVER ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 13 REAR SEAT Insert the ignition key and turn it clockwise to LATCH LEVER open the latch lever. Pull the rear seat back and up while depressing the seat opener. SEAT OPENER ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 14 Install the engine guard covers and secure them with a 6 x 11 mm pan head screw. Complete the installation on both sides of the motorcycle. 6 x 11 mm PAN HEAD SCREW ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 15 After attaching the pads, press down firmly over the entire area of the pad to ensure maximum adhesion. Avoid washing the motorcycle or riding in wet conditions for 24 hours after attaching the pads. ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 16 LIGHT SIGNAL 2P CONNECTOR (ORANGE) CONNECTOR RIGHT HEADLIGHT SOCKET LEFT RUNNING LIGHT CONNECTOR HEADLIGHT AIMING MOTOR 3P (GRAY) LEFT POSITION LIGHT SOCKET CONNECTOR LEFT HEADLIGHT SOCKET RIGHT POSITION LIGHT SOCKET ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 17 Remove the right side saddlebag by lifting up and pulling it out. SADDLE BAG Remove the right side cover: BOLTS Remove the bolts and the right side cover. SIDE COVER ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 18 Do not allow the positive (+) cable to contact any metal parts. Reinstall the side cover and saddlebag in the reverse order of removal. ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 19: Check The Coolant Level

    Throttle free play: 1/16 - 1/4 in. (2 - 6 mm) Make adjustments at the throttle grip adjuster by loosening the lock nut and turning the adjuster. Tighten the lock nut ADJUSTER after adjustment. ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 20: Check The Oil Level

    API service label JASO T 903 standard: MA • Crankcase capacity (after draining): • 3.8 US Quarts, 3.6 Liters Reinstall the oil filler cap and right cylinder head over-head cover. ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 21 Operate the hand lever and foot pedal. If the free play is excessive or the brake feels spongy and the reservoir fluid level is correct, bleed the system. ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 22: Check The Tire Pressure

    If an adjustment is needed, turn the throttle stop screw to set the idle speed INCREASE using a screwdriver. Stop the engine and remove the tachometer. 24. Check the tire pressure. Front and rear: 42 psi. ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 23 HIGH POSITION MIDDLE POSITION LOW POSITION 26. Complete the Set-Up/Pre-Delivery Checklist. Complete an On-Road Motorcycle Set-up/Pre- delivery Checklist (Reorder No. S0299) by checking the boxes confirming that the steps were done. ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 24 ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 25 2004 ST1300/A ©2004 American Honda Motor Co., Inc. - All Rights Reserved...
  • Page 26 Printed in U.S.A...
