Table 10: Link and Activity LED on SFP+ Ports

LED Color
Link and activity Green

Table 11: Link/Activity LED on QSFP+ Ports

LED Color
Link and activity Green
Related
Documentation
Copyright © 2017, Juniper Networks, Inc.

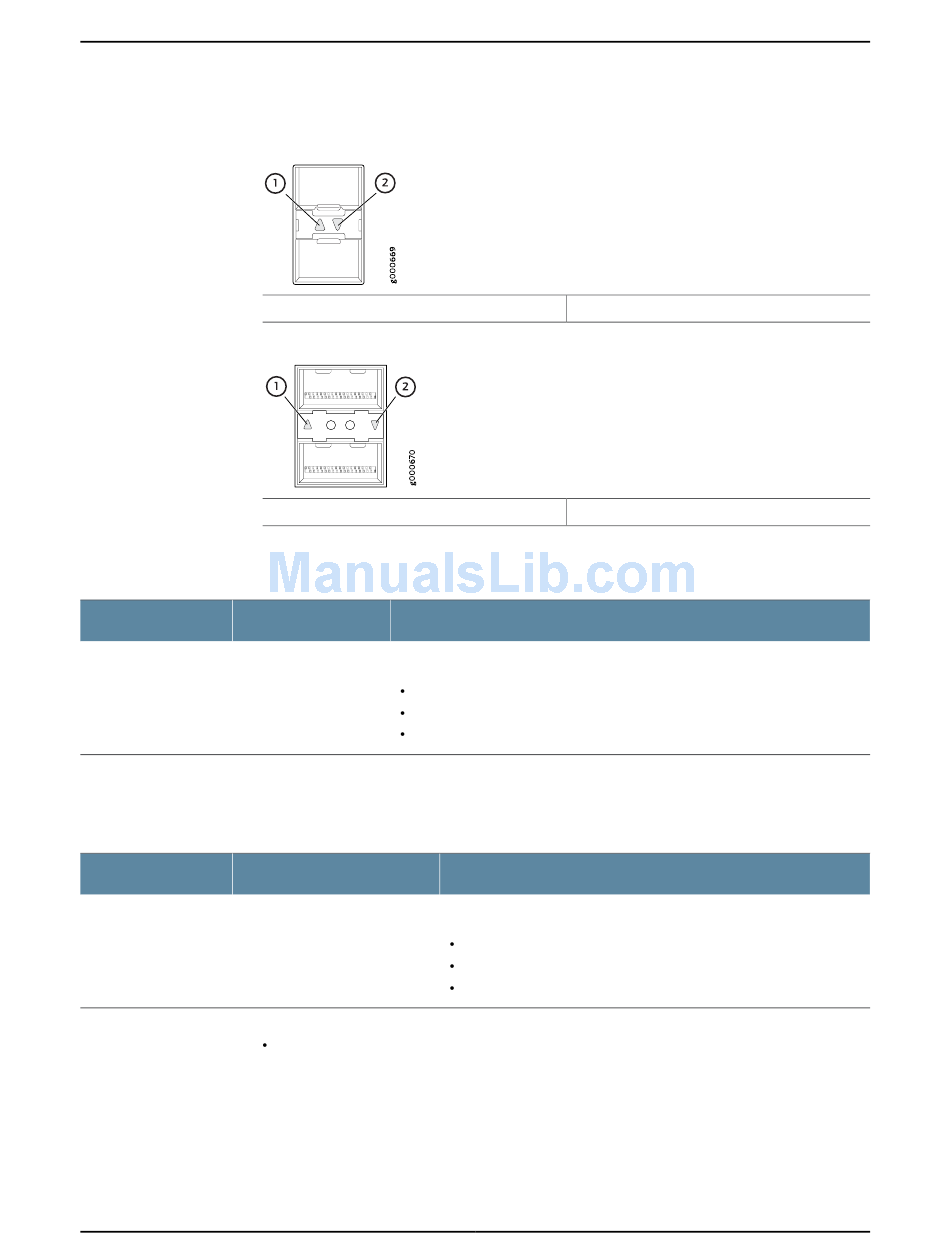

Figure 7: LEDs on SFP+ Ports

1— Link and activity LED of the upper port

Figure 8: LEDs on QSFP+ Ports

1— Link and activity LED of the upper port
Table 10 on page 15 describes the link and activity LED on SFP+ ports in OCX1100 switches.
State and Description
Indicates the status. The status indicators are:
On steadily—Secure 10-Gbps connection is active.
Blinking—Packets transmitted and received.
Off—No active connection or port disabled.
Table 11 on page 15 describes the link and activity LED on QSFP+ ports in OCX1100
switches.
OCX1100 Switches Hardware Overview on page 3
Chapter 2: Chassis Components and Descriptions
2— Link and activity LED of the lower port
2— Link and activity LED of the lower port
State and Description
Indicates the status. The status indicators are:
On steadily—Secure 40-Gbps connection is active.
Blinking—Packets transmitted and received.
Off—No active connection or port disabled.
