Compression pressure (with oil applied
inside the cylinder)
LecturaDiagnóstico
Greater than without oil piston rings are
Worn or damaged
Repair
Piston, valves, packing
possibly the cylinder head
Oil-like
defective
Repair / replace
7. Remove:
The gauge
8. Assembly:
Plug.
Plug
13 Nm (1.3 m · kg, 9.4 ft · lb)
T.
R
9. Connect:
Spark plug cap.

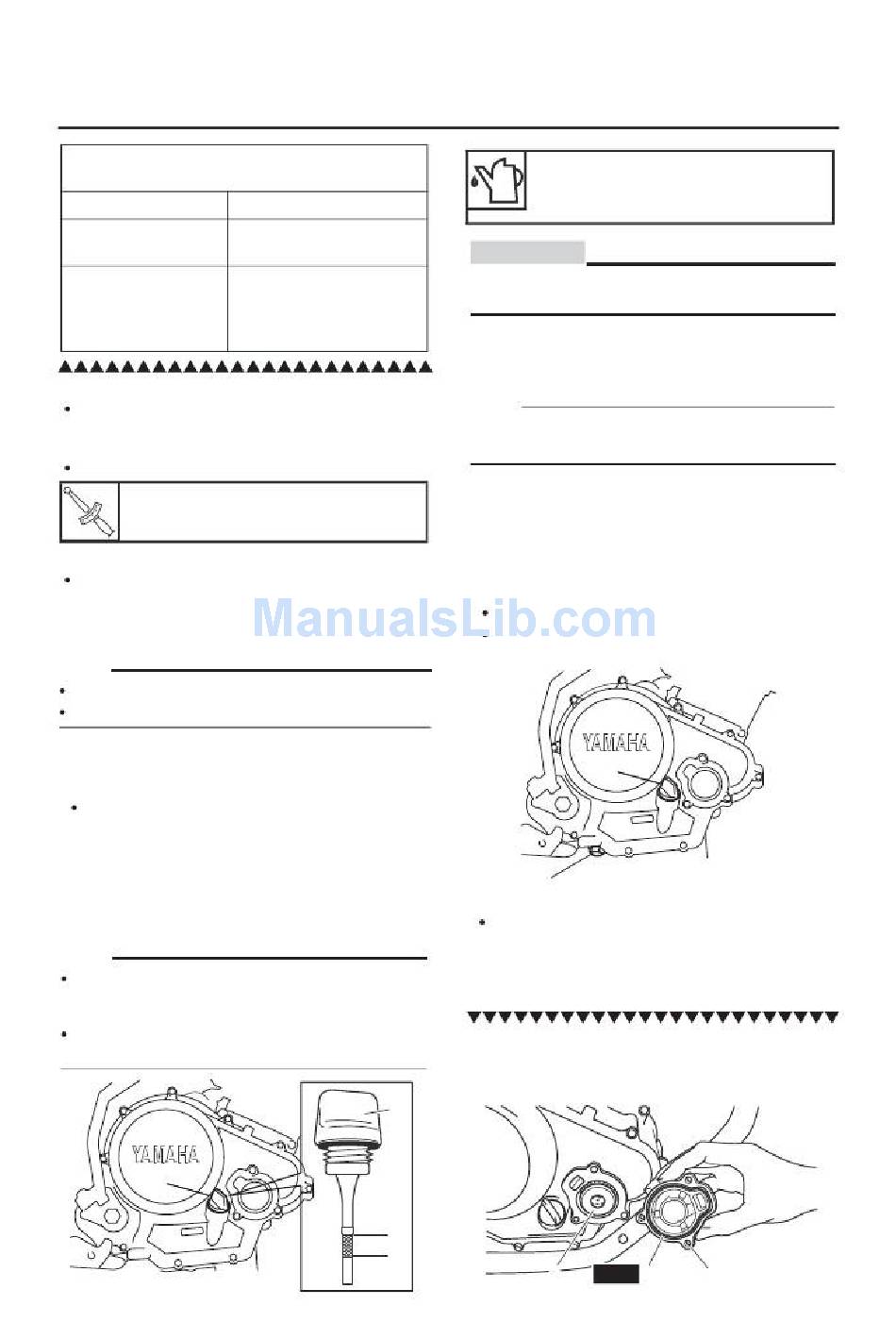

CHECKING THE OIL LEVEL
ENGINE
1. I placed the vehicle on a flat surface.
Note:
Place the vehicle on the main stand.
Make sure the vehicle is upright.
2. Start the engine, warm it up for some
minutes and then off.
3. Check:
Engine oil level.
The engine oil level should be between
minimum marks "a" and maximum
"B"
Below the minimum level mark
add engine oil type recommended
to the specified level.
Note:
Before checking the engine oil level,
wait a few minutes until the oil is
has settled.
Do not screw the dipstick "1" when
Check the oil level.
1
Type
SAE 20W50 (Engine Oil
YAMALUBE-4 times)
CAUTION
Do not let foreign materials enter
in the crankcase.
4. Start the engine, warm it up for some
minutes and then off.
5. Check the engine oil level again.
NOTE:
Before checking the engine oil level,
wait a few minutes until the oil is
has settled.

CHANGE ENGINE OIL

1. Start the engine, warm it up for some
minutes and then off.
2. Place a container under the screw
Drain engine oil.
3. Remove:
Meter engine oil level "1".
Plug "2".
2
4. Drain:
Engine Oil
(Completely
5. If the oil filter element also
must be replaced, proceed as follows
manner.
a. Remove the cover of the filter element
oil "1" and the oil filter element "2".
b. Install new O-Rings "3"
1
b
to
2
3-9
1
Crankcase).
3
1
New
ENGINE
