1
PANEL DESCRIPTION

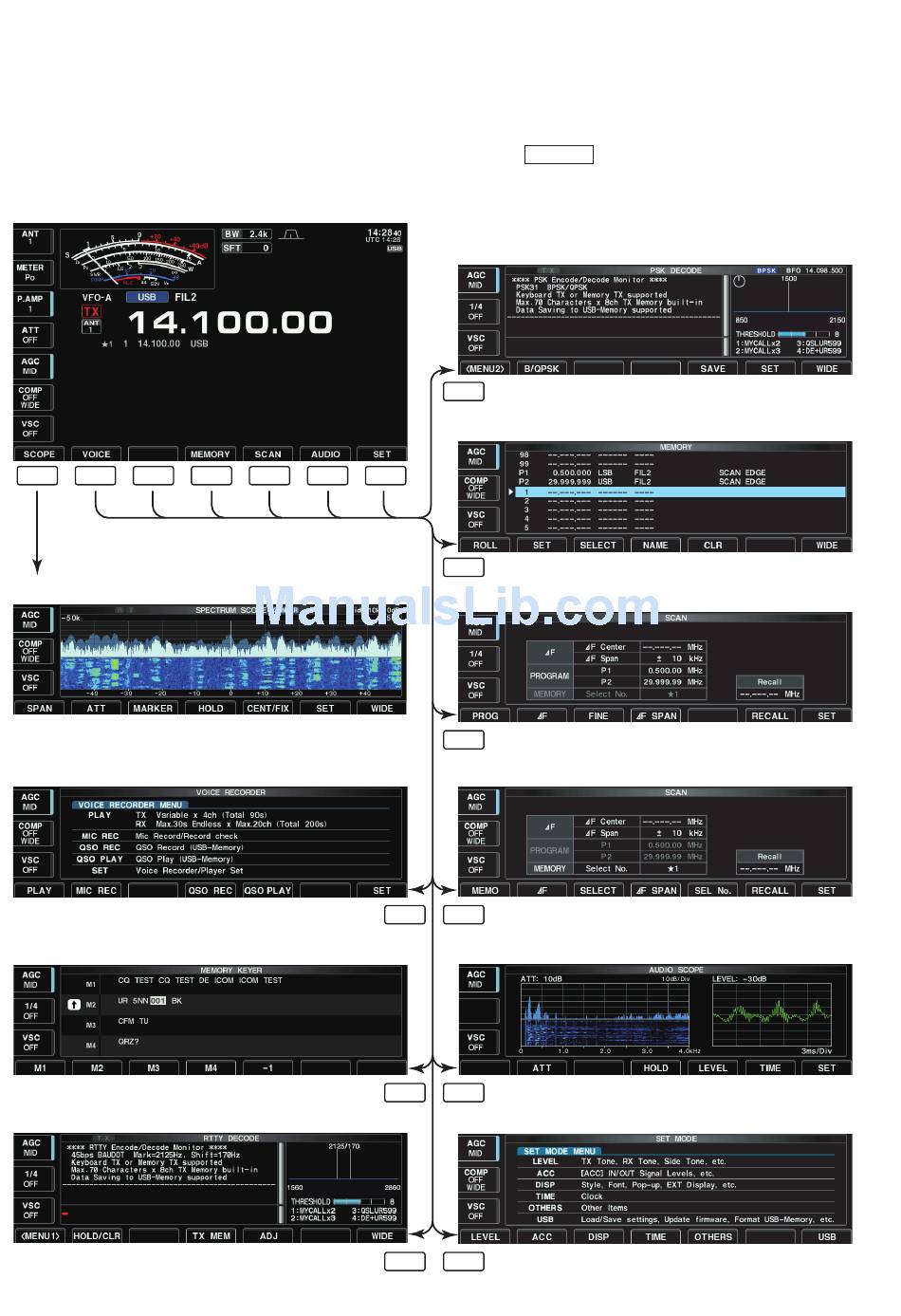

■ Screen menu arrangement

The following screens can be selected from the start
up screen. Choose the desired screen using the fol-
lowing chart.
F-1 F-2 F-3
• Spectrum scope screen (p. 5-2)
• Voice recorder screen (p. 7-3)
• Memory keyer screen (CW mode; p. 4-8)
• RTTY decoder screen (RTTY mode; p. 4-13)
F-4 F-5 F-6
Pushing
EXIT/SET
up screen. See page 12-3 for set mode arrangement.
• PSK31 decoder screen (PSK mode; p. 4-21)
F-3
• Memory list screen (p. 8-5)
F-7
F-4
• Scan screen (VFO mode; p. 9-4)
F-5
• Scan screen (Memory mode; p. 9-6)
F-2 F-5
• Audio scope screen (p. 5-20)
F-3 F-6
• Set mode menu screen (p. 12-2)
F-3 F-7
1-16
several times returns to the start
