SCOPE-DSP UPDATING...
Please wait for 10sec.
WARNING! NEVER turn power OFF.
TRX-DSP UPDATING...
Please wait for 25sec.
WARNING! NEVER turn power OFF.

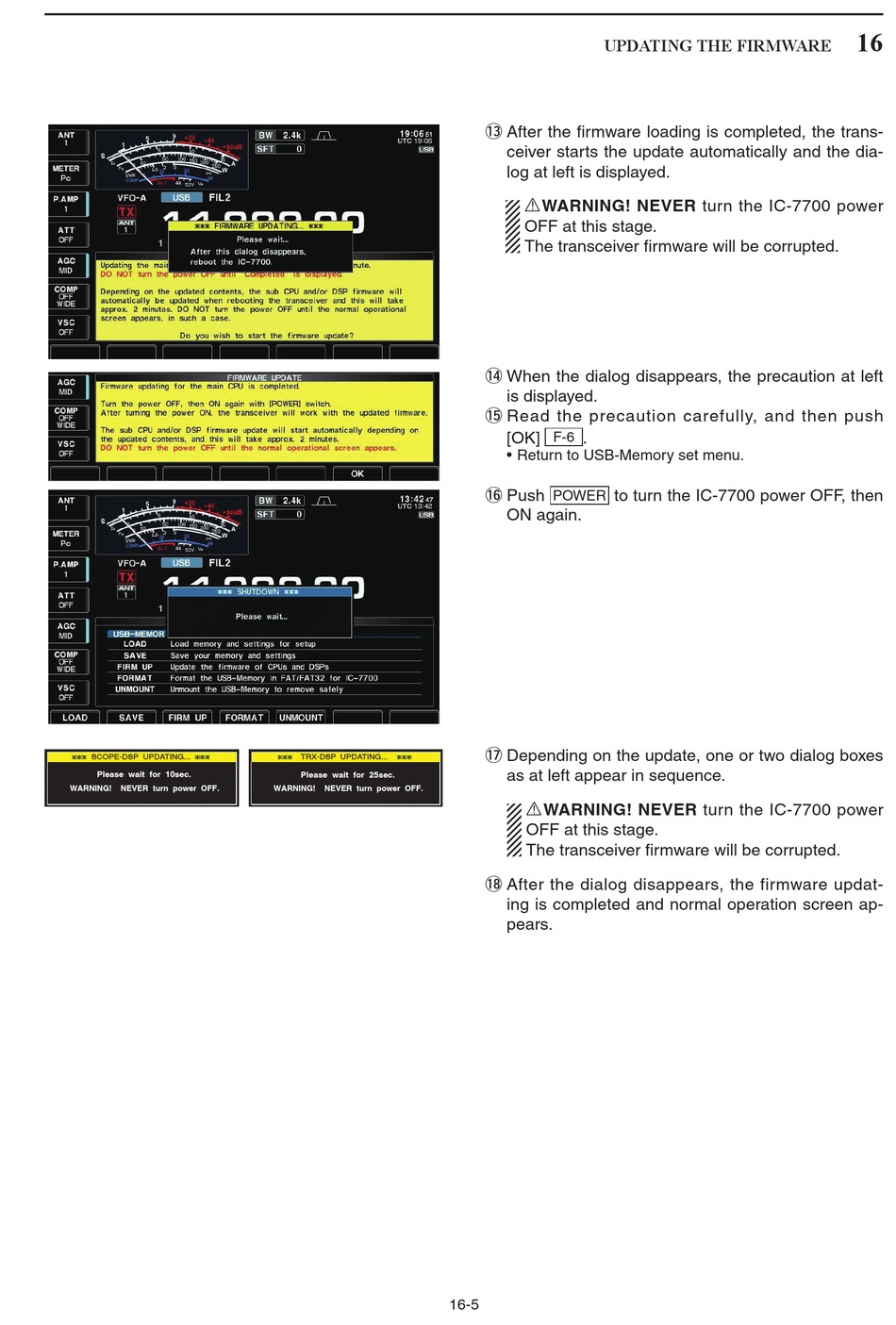

UPDATING THE FIRMWARE
!3 After the firmware loading is completed, the trans-
ceiver starts the update automatically and the dia-
log at left is displayed.
RWARNING! NEVER turn the IC-7700 power
OFF at this stage.
The transceiver firmware will be corrupted.
!4 When the dialog disappears, the precaution at left
is displayed.
!5 Read the precaution carefully, and then push
[OK] F-6 .
• Return to USB-Memory set menu.
!6 Push to turn the IC-7700 power OFF, then
POWER
ON again.
!7 Depending on the update, one or two dialog boxes
as at left appear in sequence.
RWARNING! NEVER turn the IC-7700 power
OFF at this stage.
The transceiver firmware will be corrupted.
!8 After the dialog disappears, the firmware updat-
ing is completed and normal operation screen ap-
pears.
16-5
