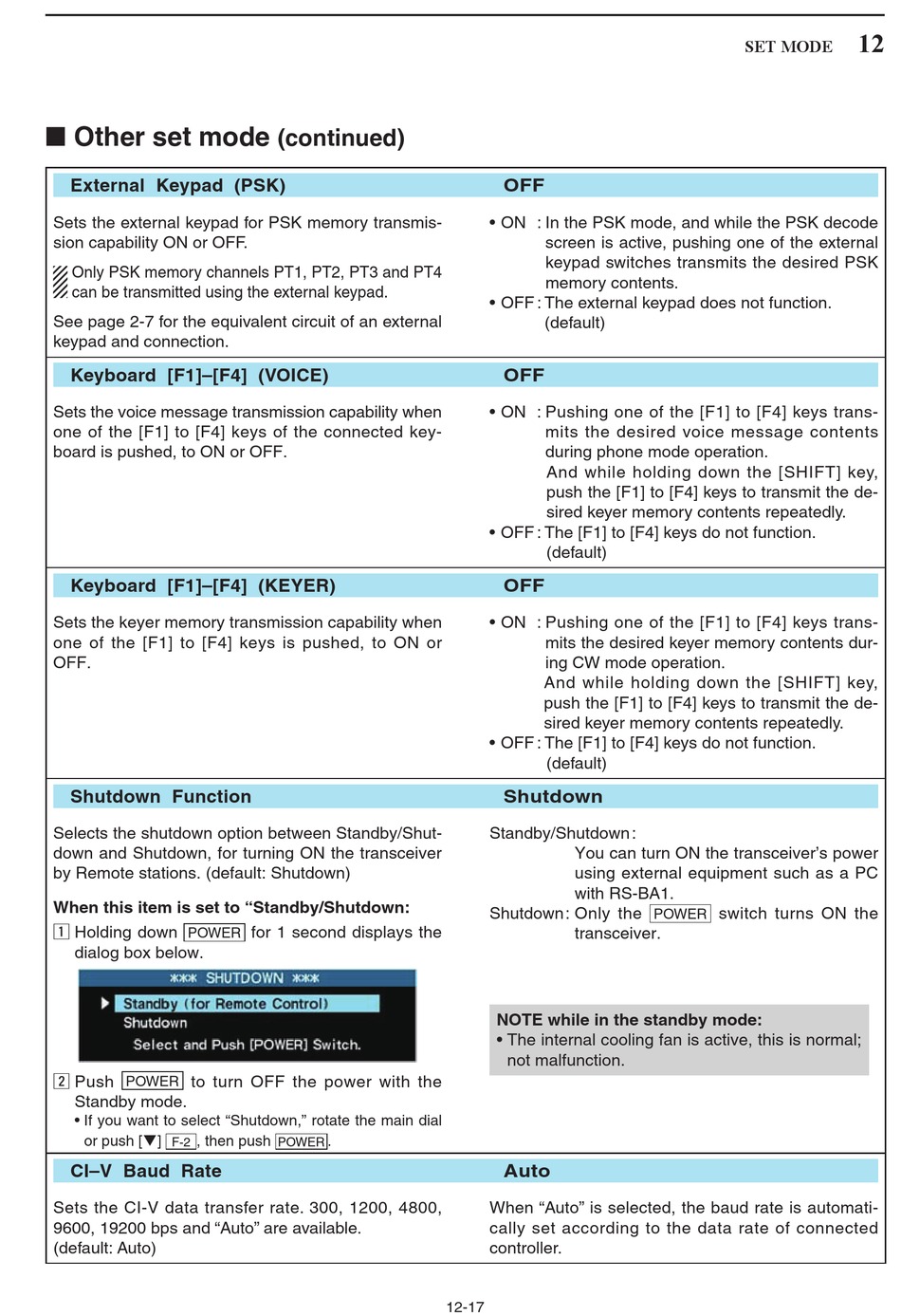

■ Other set mode
External Keypad (PSK)
Sets the external keypad for PSK memory transmis-
sion capability ON or OFF.
Only PSK memory channels PT1, PT2, PT3 and PT4
can be transmitted using the external keypad.
See page 2-7 for the equivalent circuit of an external
keypad and connection.
Keyboard [F1]–[F4] (VOICE)
Sets the voice message transmission capability when
one of the [F1] to [F4] keys of the connected key-
board is pushed, to ON or OFF.
Keyboard [F1]–[F4] (KEYER)
Sets the keyer memory transmission capability when
one of the [F1] to [F4] keys is pushed, to ON or
OFF.
Shutdown Function
Selects the shutdown option between Standby/Shut-
down and Shutdown, for turning ON the transceiver
by Remote stations. (default: Shutdown)
When this item is set to "Standby/Shutdown:
z Holding down
POWER
dialog box below.
x Push to turn OFF the power with the
POWER
Standby mode.
• If you want to select "Shutdown," rotate the main dial
or push [q] , then push
F-2
CI–V Baud Rate
Sets the CI-V data transfer rate. 300, 1200, 4800,
9600, 19200 bps and "Auto" are available.
(default: Auto)
(continued)
for 1 second displays the
.
POWER
OFF
• ON : In the PSK mode, and while the PSK decode
screen is active, pushing one of the external
keypad switches transmits the desired PSK
memory contents.
• OFF : The external keypad does not function.
(default)
OFF
• ON : Pushing one of the [F1] to [F4] keys trans-
mits the desired voice message contents
during phone mode operation.
And while holding down the [SHIFT] key,
push the [F1] to [F4] keys to transmit the de-
sired keyer memory contents repeatedly.
• OFF : The [F1] to [F4] keys do not function.
(default)
OFF
• ON : Pushing one of the [F1] to [F4] keys trans-
mits the desired keyer memory contents dur-
ing CW mode operation.
And while holding down the [SHIFT] key,
push the [F1] to [F4] keys to transmit the de-
sired keyer memory contents repeatedly.
• OFF : The [F1] to [F4] keys do not function.
(default)
Shutdown
Standby/Shutdown :
You can turn ON the transceiver's power
using external equipment such as a PC
with RS-BA1.
Shutdown : Only the
transceiver.
NOTE while in the standby mode:
• The internal cooling fan is active, this is normal;
not malfunction.
Auto
When "Auto" is selected, the baud rate is automati-
cally set according to the data rate of connected
controller.
12-17
SET MODE
switch turns ON the
POWER
12
