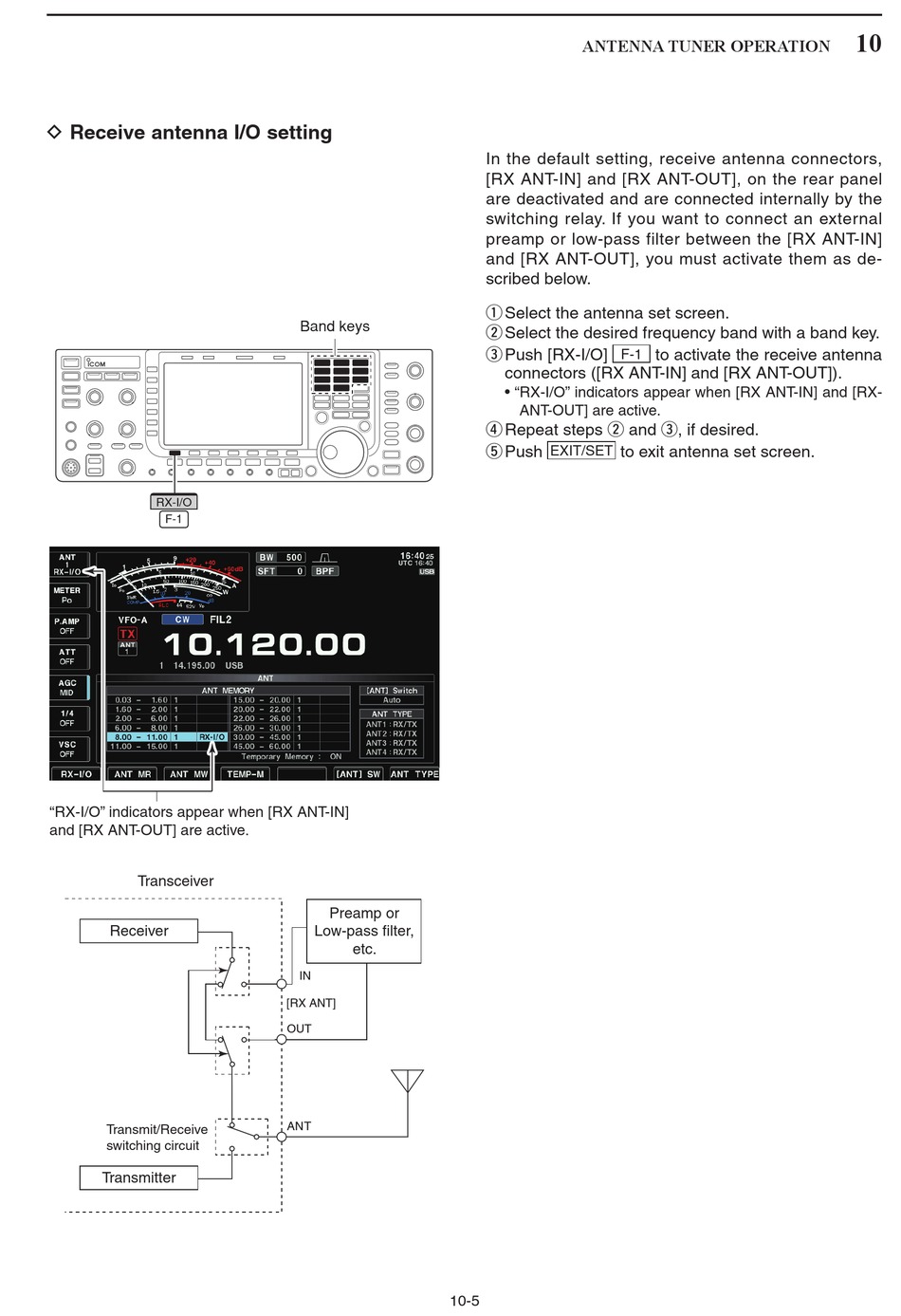

D Receive antenna I/O setting

RX-I/O
F-1
"RX-I/O" indicators appear when [RX ANT-IN]
and [RX ANT-OUT] are active.
Transceiver
Receiver
Transmit/Receive
switching circuit
Transmitter
Band keys
Preamp or
Low-pass filter,
etc.
IN
[RX ANT]
OUT
ANT
10-5
ANTENNA TUNER OPERATION
In the default setting, receive antenna connectors,
[RX ANT-IN] and [RX ANT-OUT], on the rear panel
are deactivated and are connected internally by the
switching relay. If you want to connect an external
preamp or low-pass filter between the [RX ANT-IN]
and [RX ANT-OUT], you must activate them as de-
scribed below.
q Select the antenna set screen.
w Select the desired frequency band with a band key.
e Push [RX-I/O]
F-1
connectors ([RX ANT-IN] and [RX ANT-OUT]).
• "RX-I/O" indicators appear when [RX ANT-IN] and [RX-
ANT-OUT] are active.
r Repeat steps w and e, if desired.
t Push to exit antenna set screen.
EXIT/SET
to activate the receive antenna
