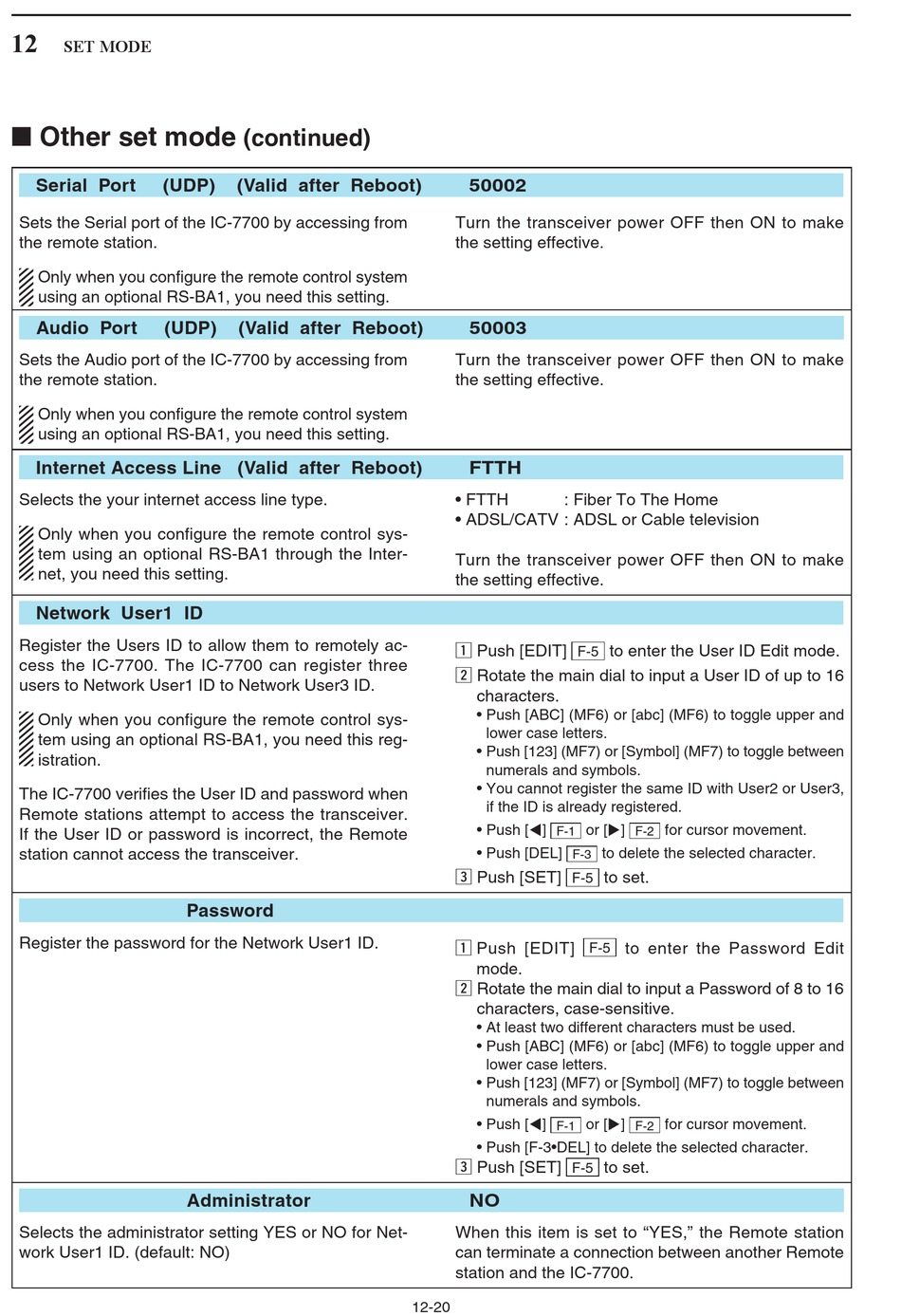

Icom ic-7700 Instruction Manual page 182

12
SET MODE
■ Other set mode
Serial Port (UDP)
Sets the Serial port of the IC-7700 by accessing from
the remote station.
Only when you configure the remote control system
using an optional RS-BA1, you need this setting.
Audio Port (UDP)
Sets the Audio port of the IC-7700 by accessing from
the remote station.
Only when you configure the remote control system
using an optional RS-BA1, you need this setting.
Internet Access Line (Valid after Reboot)
Selects the your internet access line type.
Only when you configure the remote control sys-
tem using an optional RS-BA1 through the Inter-
net, you need this setting.
Network User1 ID
Register the Users ID to allow them to remotely ac-
cess the IC-7700. The IC-7700 can register three
users to Network User1 ID to Network User3 ID.
Only when you configure the remote control sys-
tem using an optional RS-BA1, you need this reg-
istration.
The IC-7700 verifies the User ID and password when
Remote stations attempt to access the transceiver.
If the User ID or password is incorrect, the Remote
station cannot access the transceiver.
Register the password for the Network User1 ID.
Selects the administrator setting YES or NO for Net-
work User1 ID. (default: NO)
(continued)
(Valid after Reboot)
(Valid after Reboot)
Password
Administrator
50002
Turn the transceiver power OFF then ON to make
the setting effective.
50003
Turn the transceiver power OFF then ON to make
the setting effective.
FTTH
• FTTH : Fiber To The Home
• ADSL/CATV : ADSL or Cable television
Turn the transceiver power OFF then ON to make
the setting effective.
z Push [EDIT]
F-5
x Rotate the main dial to input a User ID of up to 16
characters.
• Push [ABC] (MF6) or [abc] (MF6) to toggle upper and
lower case letters.
• Push [123] (MF7) or [Symbol] (MF7) to toggle between
numerals and symbols.
• You cannot register the same ID with User2 or User3,
if the ID is already registered.
• Push [t]
F-1
• Push [DEL]
F-3
c Push [SET]
F-5
z Push [EDIT]
mode.
x Rotate the main dial to input a Password of 8 to 16
characters, case-sensitive.
• At least two different characters must be used.
• Push [ABC] (MF6) or [abc] (MF6) to toggle upper and
lower case letters.
• Push [123] (MF7) or [Symbol] (MF7) to toggle between
numerals and symbols.
• Push [t]
F-1
• Push [F-3•DEL] to delete the selected character.
c Push [SET]
F-5
NO
When this item is set to "YES," the Remote station
can terminate a connection between another Remote
station and the IC-7700.
12-20
to enter the User ID Edit mode.
or [u] for cursor movement.
F-2
to delete the selected character.
to set.
to enter the Password Edit
F-5
or [u] for cursor movement.
F-2
to set.
