FUNCTIONS FOR TRANSMIT

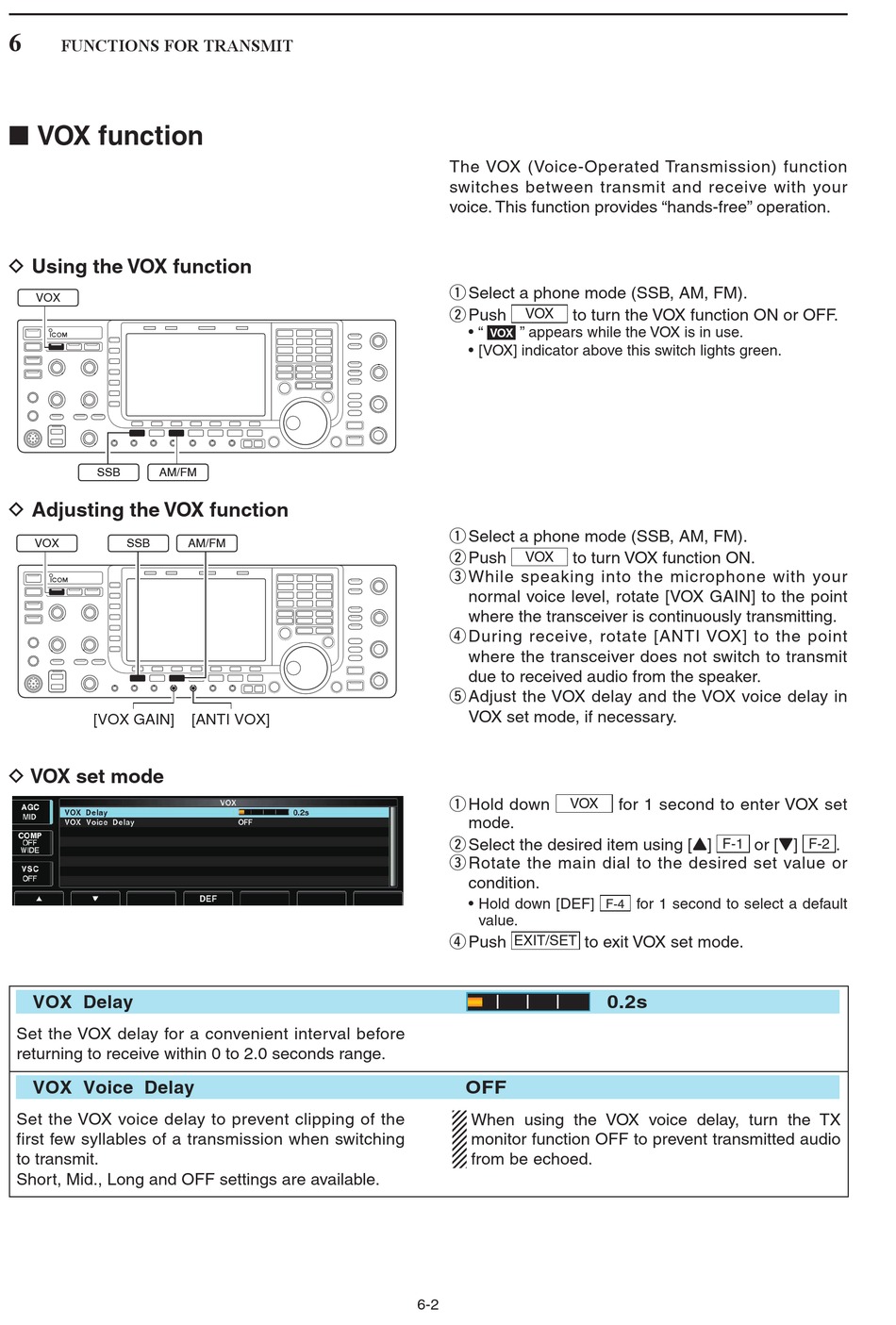

■ VOX function

D Using the VOX function

VOX
SSB AM/FM

D Adjusting the VOX function

VOX SSB
[VOX GAIN]

D VOX set mode

VOX Delay
Set the VOX delay for a convenient interval before
returning to receive within 0 to 2.0 seconds range.
VOX Voice Delay
Set the VOX voice delay to prevent clipping of the
first few syllables of a transmission when switching
to transmit.
Short, Mid., Long and OFF settings are available.
AM/FM
[ANTI VOX]
The VOX (Voice-Operated Transmission) function
switches between transmit and receive with your
voice. This function provides "hands-free" operation.
q Select a phone mode (SSB, AM, FM).
w Push to turn the VOX function ON or OFF.
VOX
• " " appears while the VOX is in use.
VOX
• [VOX] indicator above this switch lights green.
q Select a phone mode (SSB, AM, FM).
w Push to turn VOX function ON.
VOX
e While speaking into the microphone with your
normal voice level, rotate [VOX GAIN] to the point
where the transceiver is continuously transmitting.
r During receive, rotate [ANTI VOX] to the point
where the transceiver does not switch to transmit
due to received audio from the speaker.
t Adjust the VOX delay and the VOX voice delay in
VOX set mode, if necessary.
q Hold down VOX
mode.
w Select the desired item using [Y]
e Rotate the main dial to the desired set value or
condition.
• Hold down [DEF]
value.
r Push to exit VOX set mode.
EXIT/SET
OFF
When using the VOX voice delay, turn the TX
monitor function OFF to prevent transmitted audio
from be echoed.
6-2
for 1 second to enter VOX set
or [Z]
F-1
for 1 second to select a default
F-4
0.2s
.
F-2
