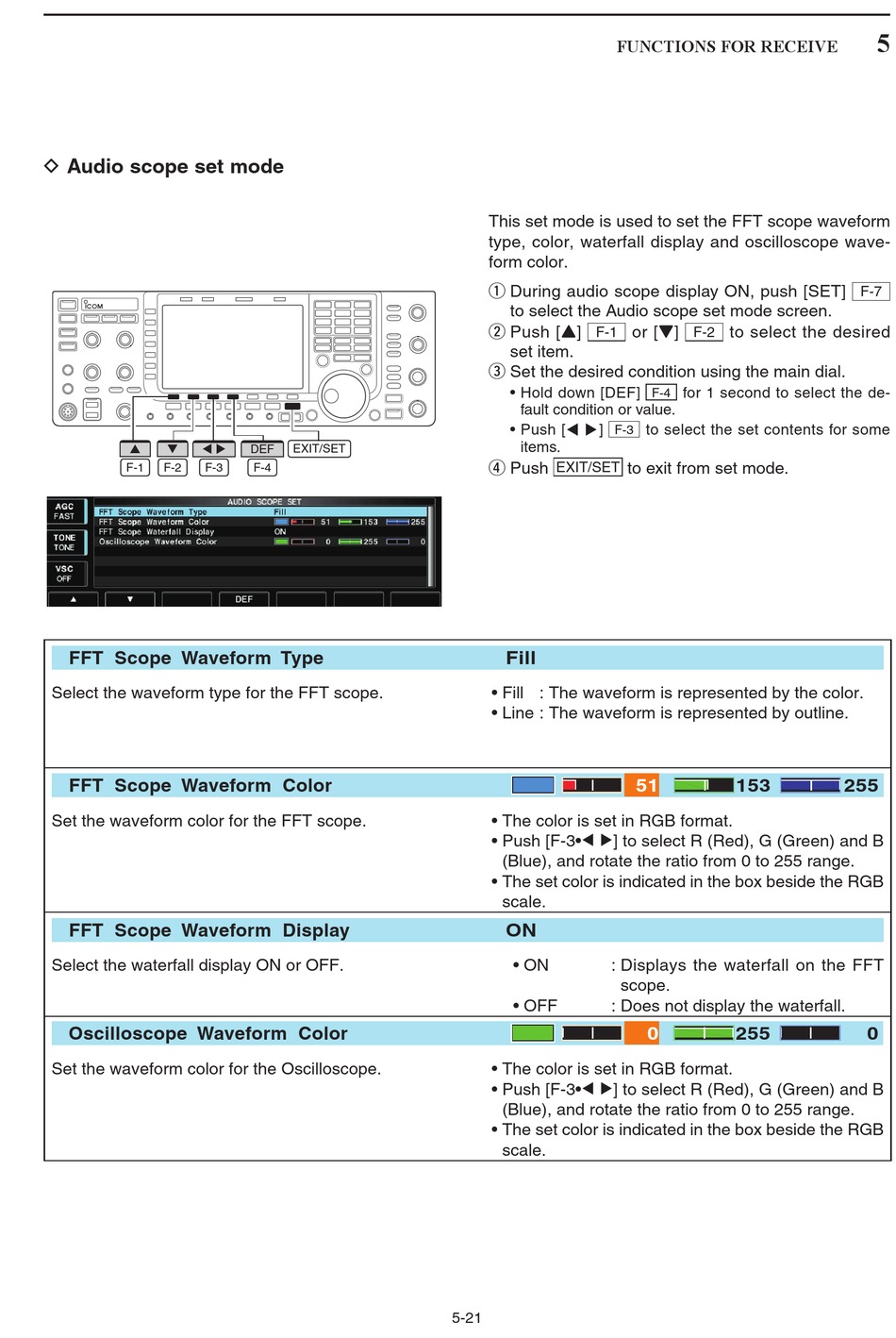

D Audio scope set mode

� � � �
F-1 F-2 F-3
FFT Scope Waveform Type
Select the waveform type for the FFT scope.
FFT Scope Waveform Color
Set the waveform color for the FFT scope.
FFT Scope Waveform Display
Select the waterfall display ON or OFF.
Oscilloscope Waveform Color
Set the waveform color for the Oscilloscope.
DEF EXIT/SET
F-4
FUNCTIONS FOR RECEIVE
This set mode is used to set the FFT scope waveform
type, color, waterfall display and oscilloscope wave-
form color.
q During audio scope display ON, push [SET]
to select the Audio scope set mode screen.
w Push [Y]
F-1
set item.
e Set the desired condition using the main dial.
• Hold down [DEF]
fault condition or value.
• Push [t u]
F-3
items.
r Push EXIT/SET
Fill
• Fill : The waveform is represented by the color.
• Line : The waveform is represented by outline.
• The color is set in RGB format.
• Push [F-3•Ω ≈] to select R (Red), G (Green) and B
(Blue), and rotate the ratio from 0 to 255 range.
• The set color is indicated in the box beside the RGB
scale.
ON
• ON : Displays the waterfall on the FFT
scope.
• OFF : Does not display the waterfall.
• The color is set in RGB format.
• Push [F-3•Ω ≈] to select R (Red), G (Green) and B
(Blue), and rotate the ratio from 0 to 255 range.
• The set color is indicated in the box beside the RGB
scale.
5-21
or [Z] to select the desired
F-2
for 1 second to select the de-
F-4
to select the set contents for some
to exit from set mode.
51 153
0 255
5
F-7
255
0
