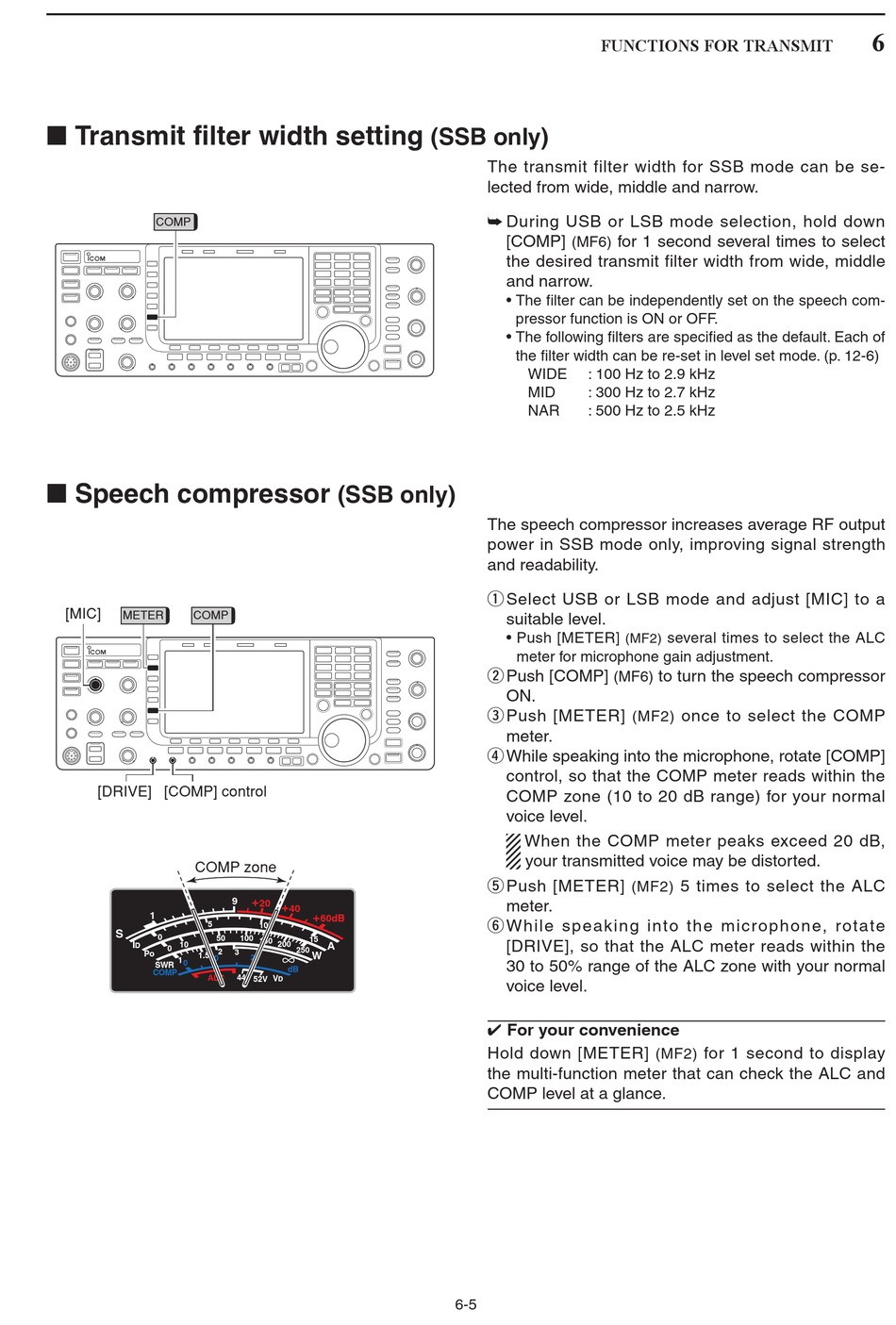

■ Transmit filter width setting
COMP
■ Speech compressor
[MIC]
METER COMP
[DRIVE] [COMP] control
COMP zone
5
1
5
S
0
I
10
D
0
Po
1.5
10
1
0
SWR
COMP
ALC
(SSB only)
+
9
20
+
40
+
60dB
10
50 100 150
15
200 A
250
2 ∞
3
W
20
dB
44 52V V
D
(SSB only)
The transmit filter width for SSB mode can be se-
lected from wide, middle and narrow.
➥ During USB or LSB mode selection, hold down
[COMP]
(MF6)
the desired transmit filter width from wide, middle
and narrow.
• The filter can be independently set on the speech com-
pressor function is ON or OFF.
• The following filters are specified as the default. Each of
the filter width can be re-set in level set mode. (p. 12-6)
WIDE : 100 Hz to 2.9 kHz
MID : 300 Hz to 2.7 kHz
NAR : 500 Hz to 2.5 kHz
The speech compressor increases average RF output
power in SSB mode only, improving signal strength
and readability.
q Select USB or LSB mode and adjust [MIC] to a
suitable level.
• Push [METER]
meter for microphone gain adjustment.
w Push [COMP]
ON.
e Push [METER]
meter.
r While speaking into the microphone, rotate [COMP]
control, so that the COMP meter reads within the
COMP zone (10 to 20 dB range) for your normal
voice level.
When the COMP meter peaks exceed 20 dB,
your transmitted voice may be distorted.
t Push [METER]
meter.
y While speaking into the microphone, rotate
[DRIVE], so that the ALC meter reads within the
30 to 50% range of the ALC zone with your normal
voice level.
✔ For your convenience
Hold down [METER]
the multi-function meter that can check the ALC and
COMP level at a glance.
