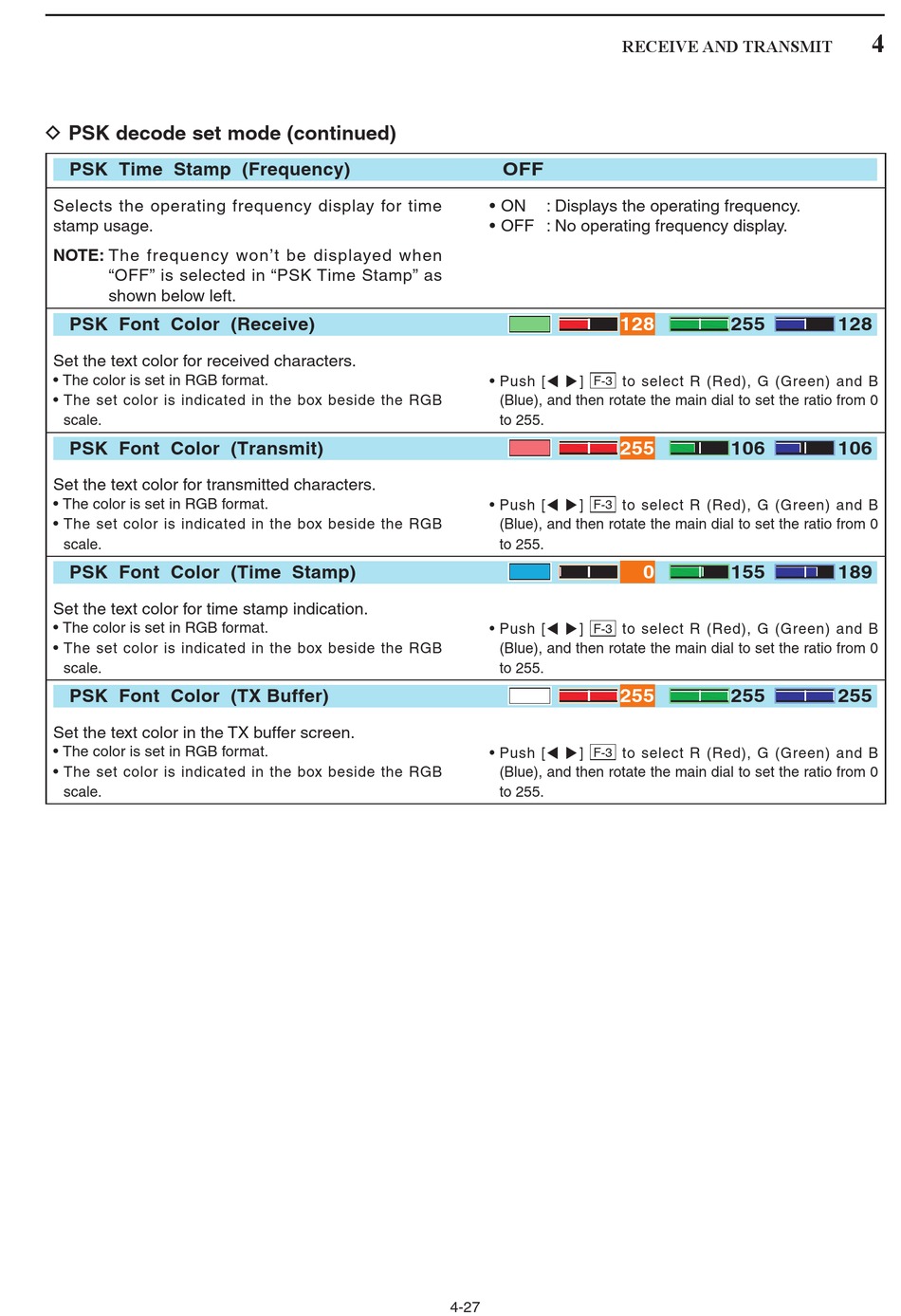

Icom ic-7700 Instruction Manual page 79

D PSK decode set mode (continued)
PSK Time Stamp (Frequency)
Selects the operating frequency display for time
stamp usage.
NOTE: The frequency won't be displayed when
"OFF" is selected in "PSK Time Stamp" as
shown below left.
PSK Font Color (Receive)
Set the text color for received characters.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB
scale.
PSK Font Color (Transmit)
Set the text color for transmitted characters.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB
scale.
PSK Font Color (Time Stamp)
Set the text color for time stamp indication.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB
scale.
PSK Font Color (TX Buffer)
Set the text color in the TX buffer screen.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB
scale.
OFF
• ON : Displays the operating frequency.
• OFF : No operating frequency display.
• Push [t u]
F-3
(Blue), and then rotate the main dial to set the ratio from 0
to 255.
• Push [t u]
F-3
(Blue), and then rotate the main dial to set the ratio from 0
to 255.
• Push [t u]
F-3
(Blue), and then rotate the main dial to set the ratio from 0
to 255.
• Push [t u]
F-3
(Blue), and then rotate the main dial to set the ratio from 0
to 255.
4-27
RECEIVE AND TRANSMIT
128 255
to select R (Red), G (Green) and B
255 106
to select R (Red), G (Green) and B
0 155
to select R (Red), G (Green) and B
255 255
to select R (Red), G (Green) and B
4
128
106
189
255
