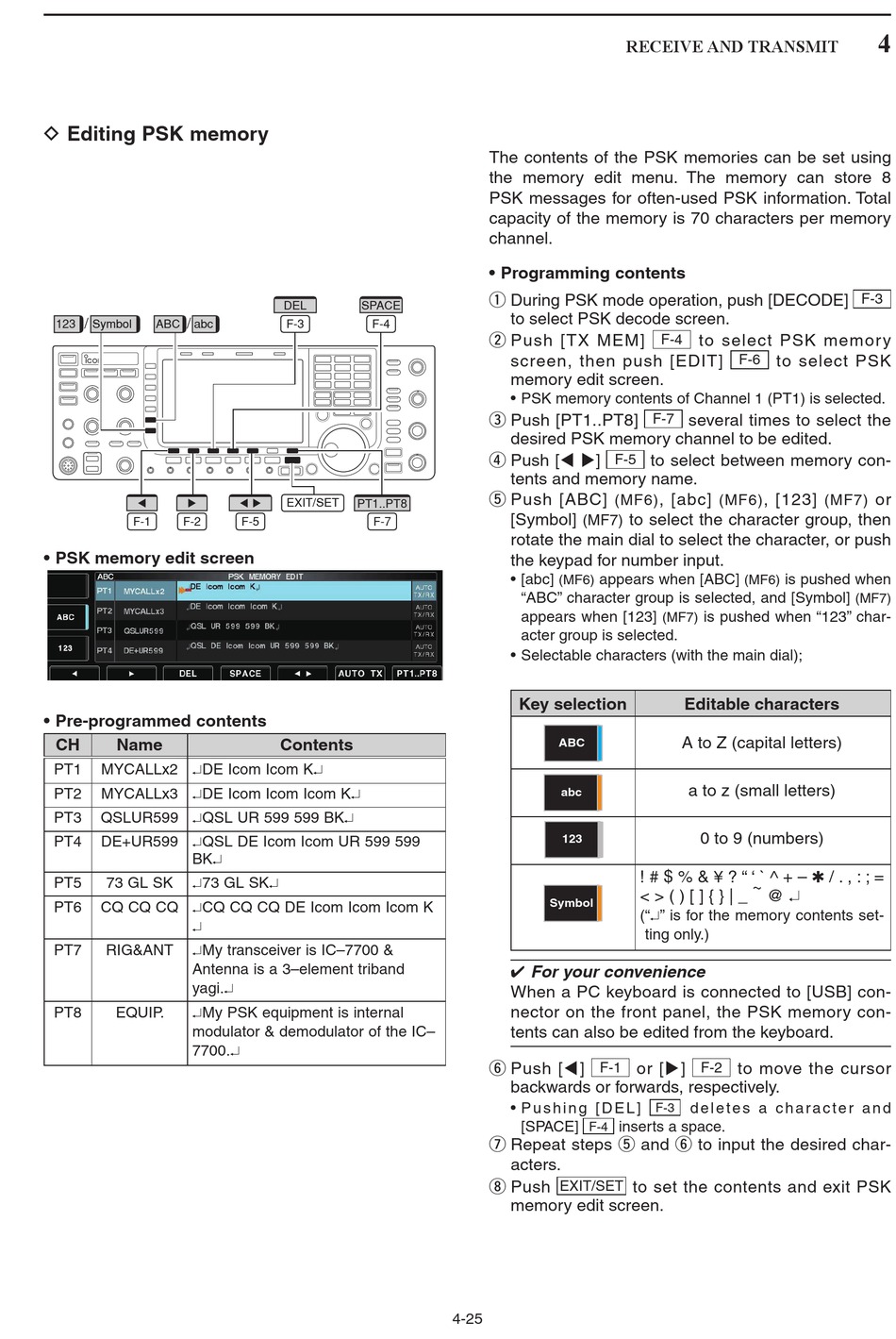

D Editing PSK memory

/ /
123 Symbol ABC abc
Ω ≈
F-1 F-2
• PSK memory edit screen
• Pre-programmed contents
CH Name
MYCALLx2 ↵DE Icom Icom K↵
PT1
MYCALLx3 ↵DE Icom Icom Icom K↵
PT2
QSLUR599 ↵QSL UR 599 599 BK↵
PT3
DE+UR599 ↵QSL DE Icom Icom UR 599 599
PT4
BK↵
↵73 GL SK↵
PT5 73 GL SK
CQ CQ CQ ↵CQ CQ CQ DE Icom Icom Icom K
PT6
↵
↵My transceiver is IC–7700 &
PT7 RIG&ANT
Antenna is a 3–element triband
yagi.↵
↵My PSK equipment is internal
PT8 EQUIP.
modulator & demodulator of the IC–
7700.↵
DEL SPACE
F-3 F-4
EXIT/SET
Ω ≈ PT1..PT8
F-5 F-7
Contents
The contents of the PSK memories can be set using
the memory edit menu. The memory can store 8
PSK messages for often-used PSK information. Total
capacity of the memory is 70 characters per memory
channel.
• Programming contents
q During PSK mode operation, push [DECODE]
to select PSK decode screen.
w Push [TX MEM]
screen, then push [EDIT]
memory edit screen.
• PSK memory contents of Channel 1 (PT1) is selected.
e Push [PT1..PT8]
desired PSK memory channel to be edited.
r Push [t u]
F-5
tents and memory name.
t Push [ABC]
(MF6)
[Symbol]
(MF7)
rotate the main dial to select the character, or push
the keypad for number input.
• [abc] appears when [ABC]
(MF6)
"ABC" character group is selected, and [Symbol]
appears when [123]
acter group is selected.
• Selectable characters (with the main dial);
Key selection
ABC
abc
123
Symbol
✔ For your convenience
When a PC keyboard is connected to [USB] con-
nector on the front panel, the PSK memory con-
tents can also be edited from the keyboard.
y Push [t] F-1
backwards or forwards, respectively.
• P u s h i n g [ D E L ]
[SPACE] inserts a space.
F-4
u Repeat steps t and y to input the desired char-
acters.
i Push EXIT/SET
memory edit screen.
4-25
RECEIVE AND TRANSMIT
to select PSK memor y
F-4
F-6 to select PSK
F-7 several times to select the
to select between memory con-
, [abc] , [123]
(MF6)
to select the character group, then
is pushed when
(MF6)
is pushed when "123" char-
(MF7)
Editable characters
A to Z (capital letters)
a to z (small letters)
0 to 9 (numbers)
! # $ % & ¥ ? " ' ` ^ + – ✱ / . , : ; =
~
@ ↵
< > ( ) [ ] { } | _
( "↵" is for the memory contents set-
ting only.)
or [u] F-2 to move the cursor
d e l e t e s a c h a r a c t e r a n d
F-3
to set the contents and exit PSK
4
F-3
or
(MF7)
(MF7)
