Paperfeed unit clutch removal

Note: This procedure applies to all the clutches on the paperfeed unit.
1.
Remove the paperfeed unit. See
2.

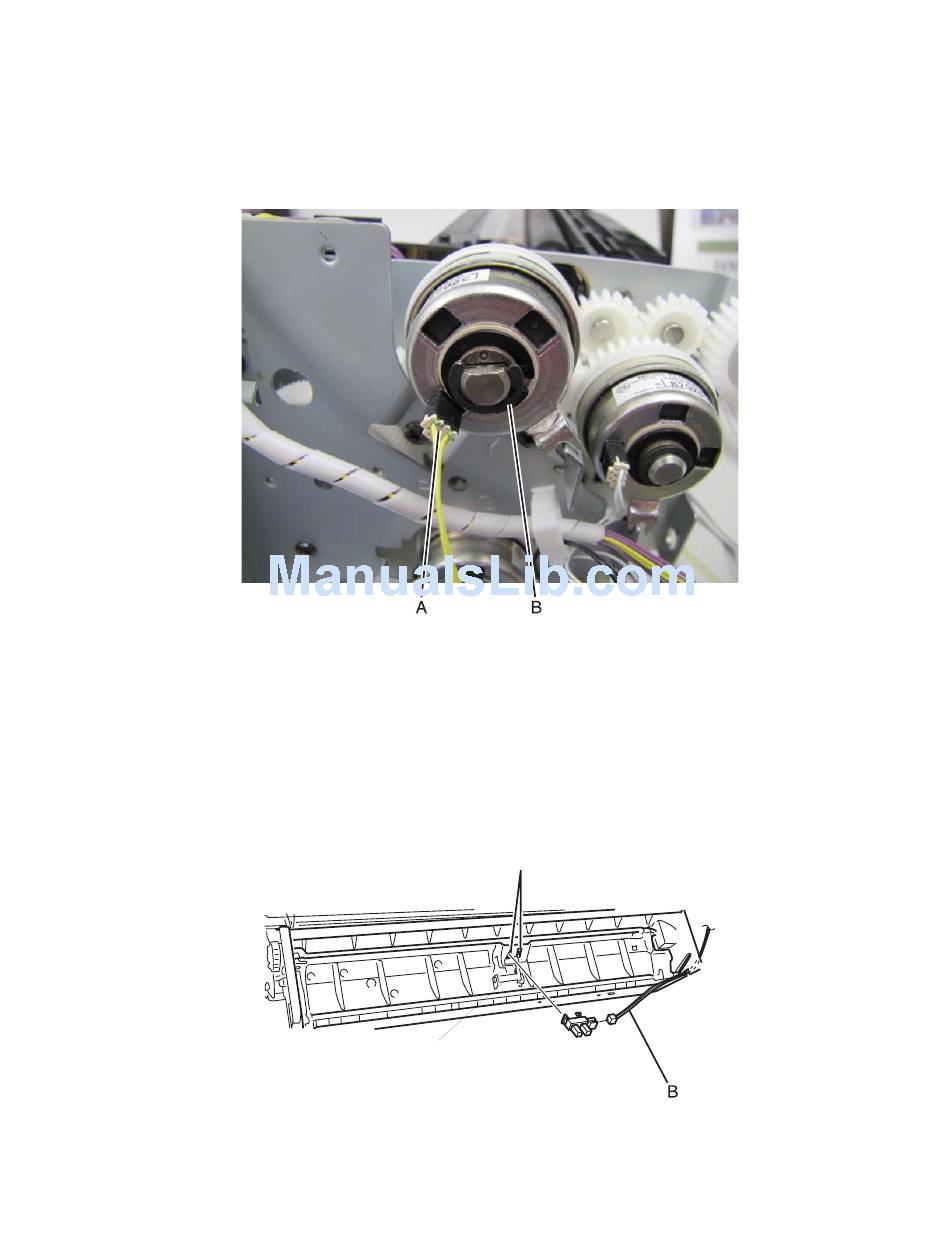

Disconnect the wiring harness (A) from the clutch.
3.
Remove the e-clip (B) securing the clutch to the shaft.
Note: When reinstalling the clutch make sure the clutch stopper on the paperfeed unit is lined up with the stop
on the clutch.

Registration sensor (MPF tray) removal

1.
Open the right cover door.
2.
Pull the cassette guide down.
3.
Pinch the tabs (A) that secure the sensor to the cassette guide, releasing the sensor.
4.
Disconnect the sensor from the sensor wire harness (B).
"Power supply fan removal" on page
A
7541-03x
4-55.
4-179
Repair information
