Bin full sensor removal

1.
Remove the paper exit guide. See
2.

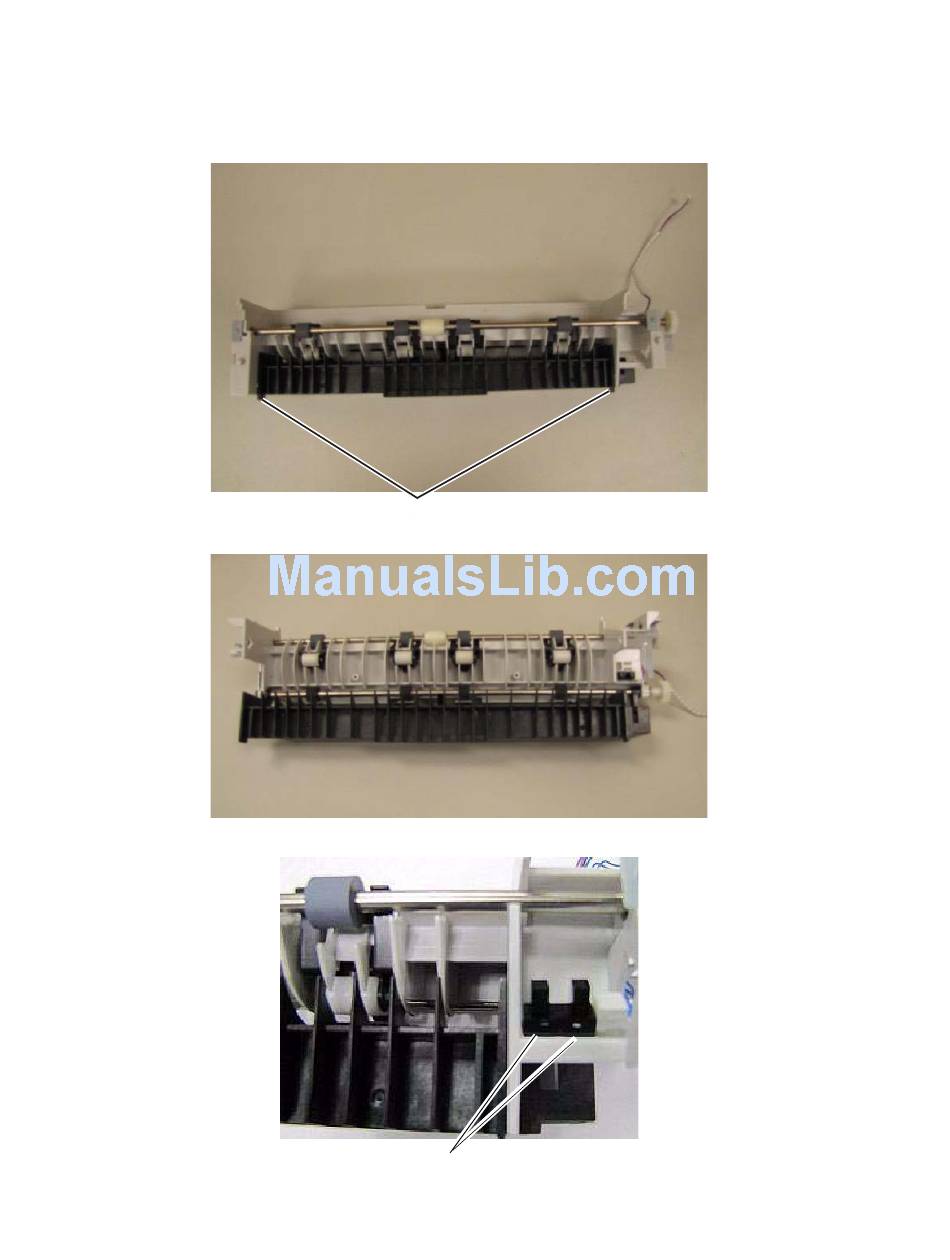

Release the tabs (A) securing the black exit guide.
3.
Open the guide, exposing the bin full sensor.
4.
Release the tabs (B) securing the bin full sensor to the paper exit guide.
5.
Disconnect the blue cable from the sensor.
4-36
Service Manual
"Paper exit guide removal" on page
A
B
4-33.
