Touchscreen assembly removal

1.
Remove the upper operator panel assembly.
2.
Remove the UICC. See
3.

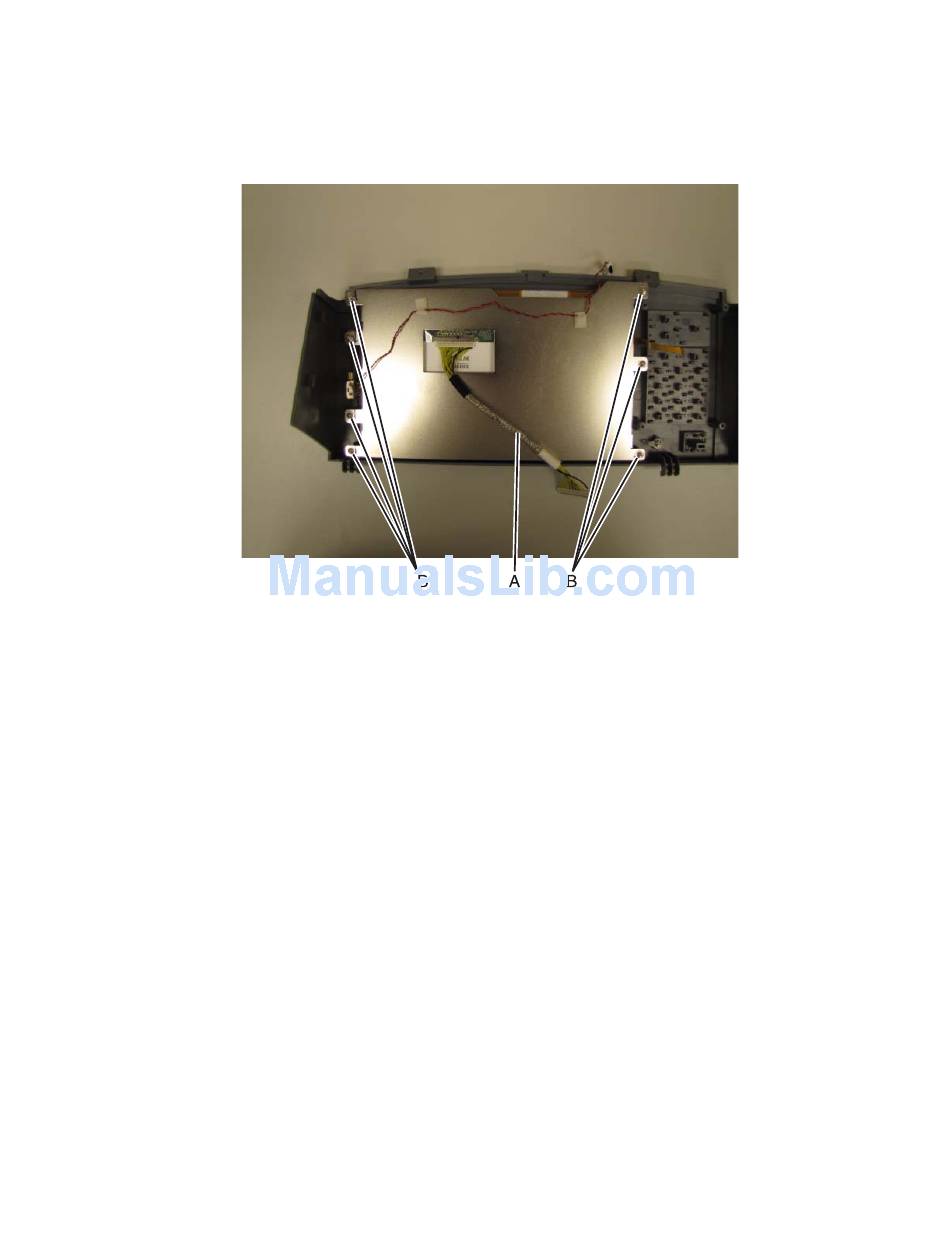

Disconnect the UICC cable (A) from the touchscreen from the touchscreen.
4.
Remove the seven screws (B) securing the touchscreen to the upper operator panel assembly.
Note: When reattaching the UICC cable to the display and the UICC card,ensure that the end of the cable with
the black tape is connected to the display.
"UICC removal" on page 4-120.
7541-03x
4-121
Repair information
