Color Alignment

When you enter Color Alignment, the printer generates four alignment pages that are used to set the color
alignment on the print engine. This needs to be run whenever a toner cartridge or imaging unit is installed on the
print engine.
To set the alignment, perform the following steps:
1.
Select Color Alignment from the configuration menu.
2.
Select Print Alignment Pages. The pages are printed.
The alignment pages that are printed out contain vertical and horizontal alignment settings labeled A
through L.

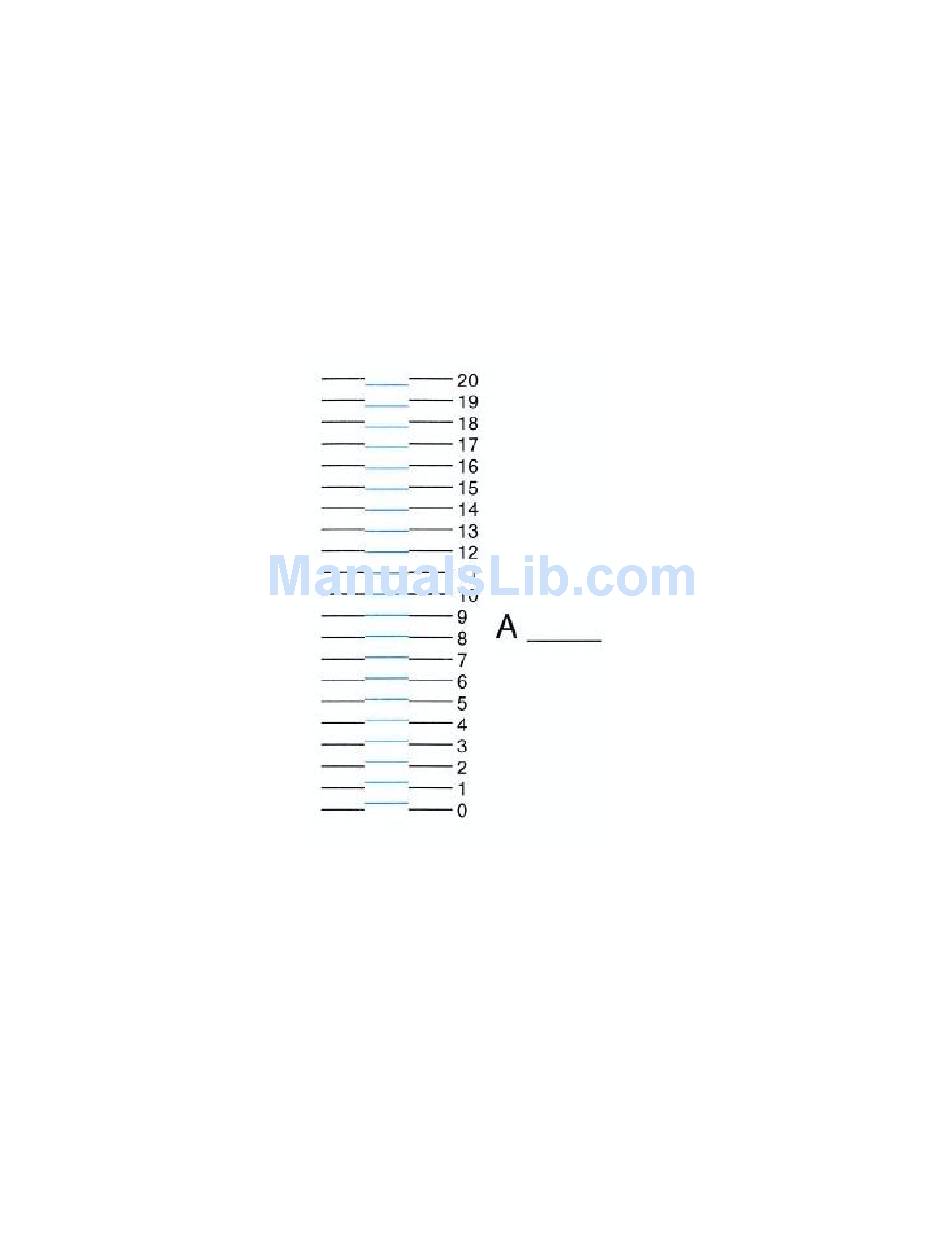

Example A is shown here:
3.
In the Color Alignment sub menu, Select A.
4.
Look at item A on the sheets.
5.
Look for the numerical value where the color lie is aligned with the two black lines on each end.
Note: In the example above, 10 would be the value to enter.
6.
Using the arrows on the touch screen, scroll to the value that matches the correct value on the printout.
7.
Touch the check mark.
8.
Repeat steps 3 through 6 for each alpha value on the printout.

ADF Edge Erase

The ADF Edge Erase setting specifies, in millimeters, the size of a border around the scanned image that will be
erased. For copies, the printed page will always have a at least a 2-mm no-print border. The larger of the 2-mm
no-print border and the Edge Erase setting will be used in this situation.
