4.

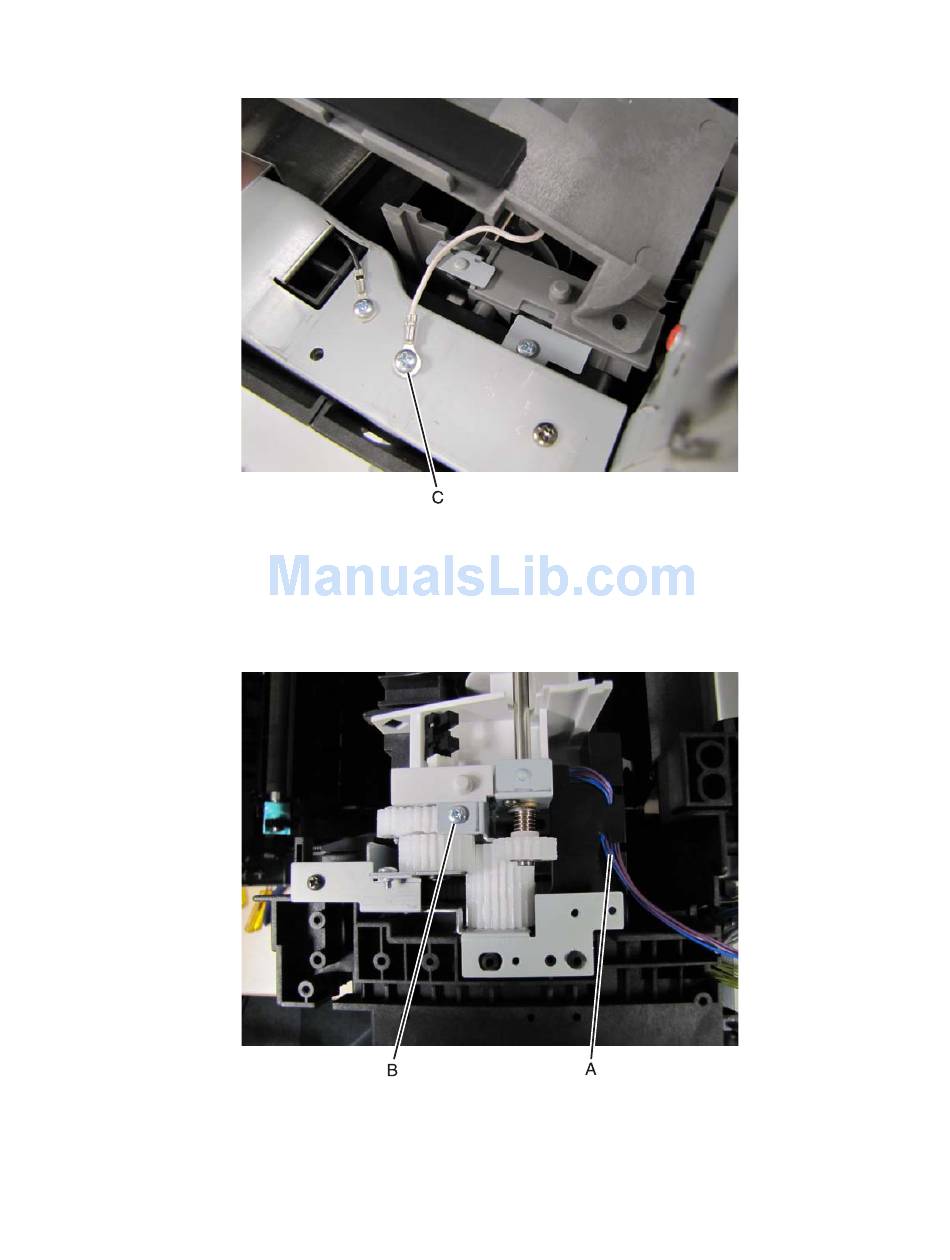

Remove the ground screw (C).
Paper exit guide removal
1.
Remove the top cover.
2.
Remove the op panel paper exit guide. See
3.
Disconnect the paper exit / bin full sensor cable from CN7 on the printhead controller board.
4.
Thread the cable (A) through the fuser fan duct.
5.
Remove the screw (B) securing the paper exit guide to the sub drive unit.
"Op panel paper exit guide removal" on page
7541-03x
4-32.
4-33
Repair information
