3: Maintenance and Upgrade Procedures
62
Notches

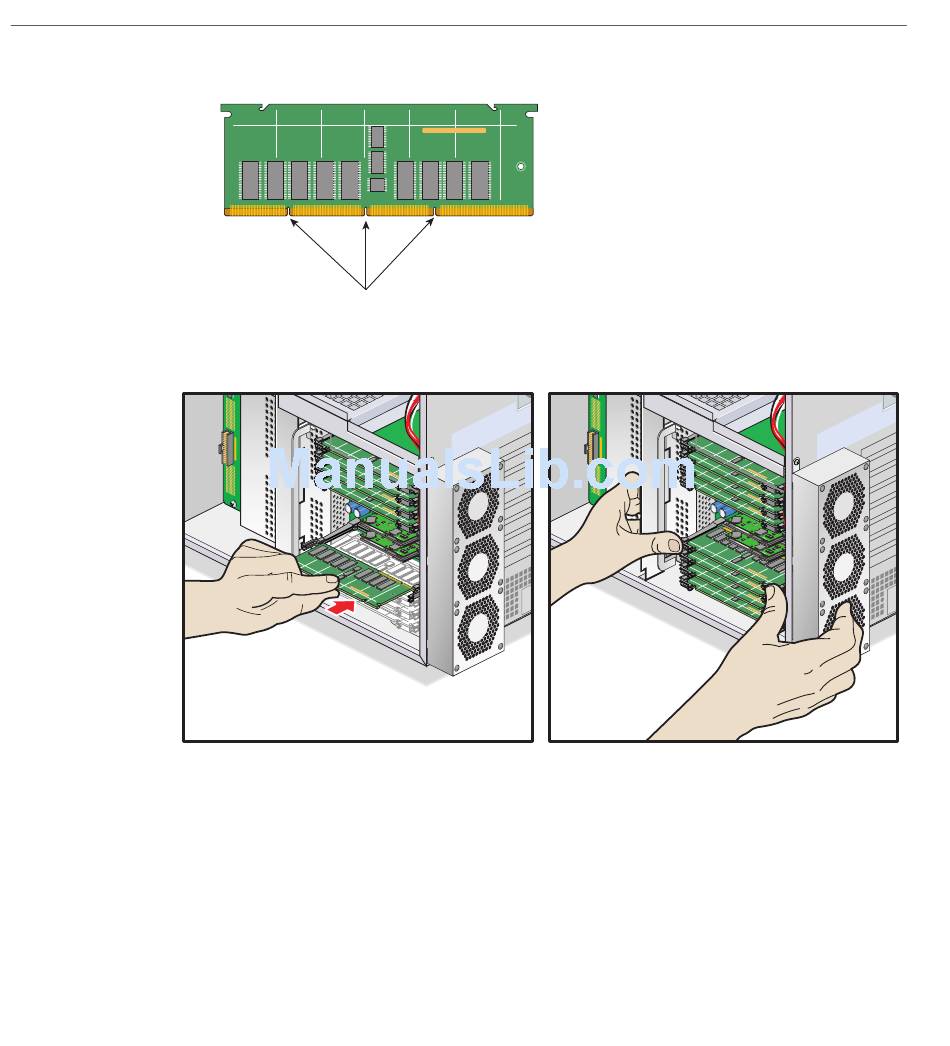

Figure 3-10
Locating the Notches on a DIMM
Figure 3-11
DIMM Installation Example
When the DIMM is fully seated in the connector, the ejector latches snap into place flush
with each end of the DIMM.
007-4772-002
