Figure 2-10 Pci Buses And Slots - Silicon Graphics Prism Hardware User's Manual

007-4772-002
USB
1 3
L1 UPLINK
2 4
B1-S1
B2-S2
B2-S1
B3-S2
B3-S1
B4-S2
B4-S1
AGP-6
AGP-5

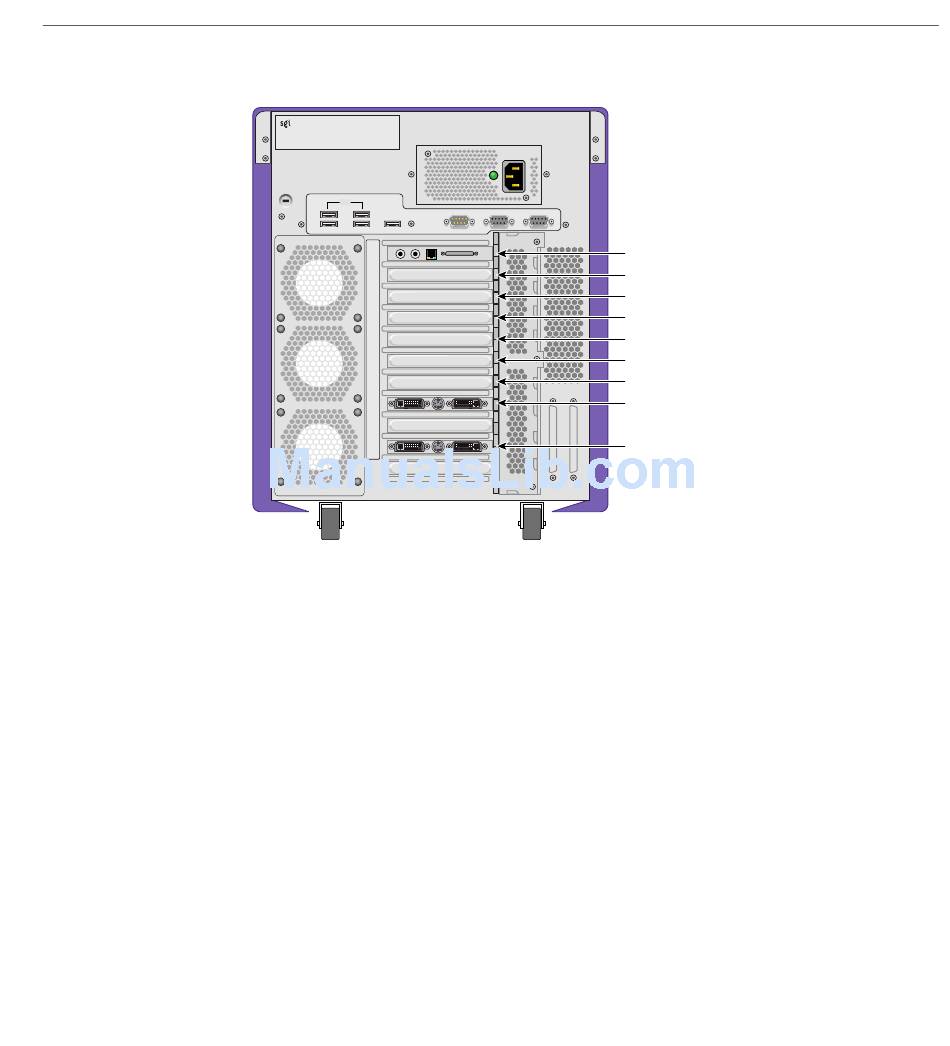

Figure 2-10 PCI Buses and Slots
For a list of available PCI boards see "PCI Boards" on page 37 or contact your SGI sales
representative.
CONSOLE IS IN IS REPEAT
PCI bus 1 slot 1
PCI bus 2 slot 2
PCI bus 2 slot 1
PCI bus 3 slot 2
PCI bus 3 slot 1
PCI bus 4 slot 2
PCI bus 4 slot 1
PCI AGP-6
PCI AGP-5
PCI Buses
33
