Figure 3-8 Layout Of Slots And Dimm Memory Groups - Silicon Graphics Prism Hardware User's Manual

3: Maintenance and Upgrade Procedures
!
58
Note: The DIMMs used in the Silicon Graphics Prism Deskside visualization
platform are not compatible with DIMMs used in the Origin 200, Origin 300, Origin
350 series, Origin 2000, Origin 3000, SGI 3000 series, SGI 2000 series, Onyx systems,
Fuel, Octane Octane2, O2, O2+, or Tezro systems.
Group 0
Group 1
Group 2

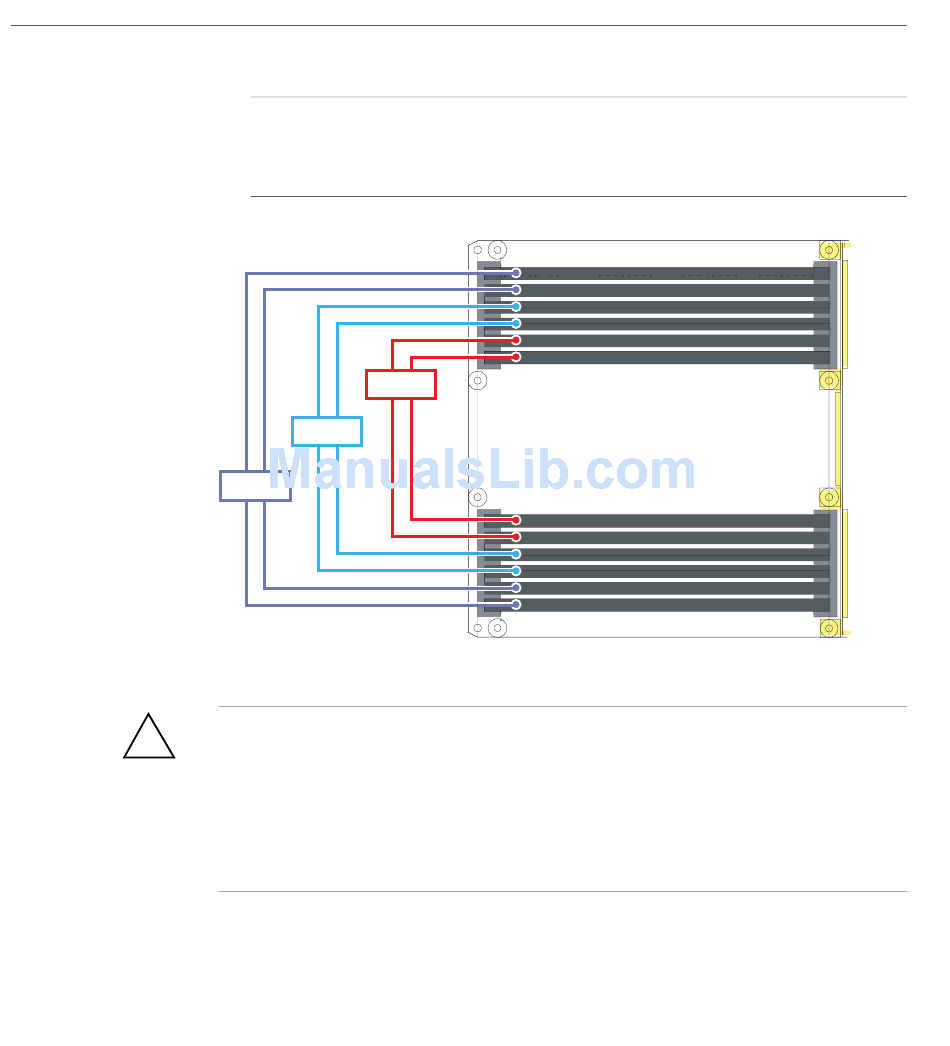

Figure 3-8 Layout of Slots and DIMM Memory Groups
Caution: Electronic equipment can be irreparably damaged by electrostatic discharge
(ESD). Always follow these preventive measures when you handle a system component:
- Remove a component from its antistatic bag only when you are ready to install it.
- If you handle a component before installation, do not place it on surfaces that produce
ESD (carpeting, for example) or near devices that create static electricity.
- Attach a static wrist strap to your wrist and to a grounded connection on your system
when you install or remove a component.
