3: Maintenance and Upgrade Procedures

Replacing the LED Cable

98
Follow these steps to replace the LED cable (see Figure 3-35).
Note: If you have not already done so, prepare your system for service. Refer to
"Preparing the System for Service" on page 44. In order to replace the LED cable, you
must remove the left side panel and the bezel.
1. Disconnect the LED cable from the interface board.
2. Use a small phillips-blade screwdriver to remove the two screws and latch-blocks
that secure the LED cable pass-through connector to the front of the enclosure. Place
the screws and latch-blocks in a secure location. Then remove the LED cable from
the enclosure.
3. Insert the new LED cable into the enclosure. Secure the pass-through connector to
the front of the enclosure using the screws and latch-blocks you removed in step 2.
4. Connect the other end of the LED cable to the interface board.

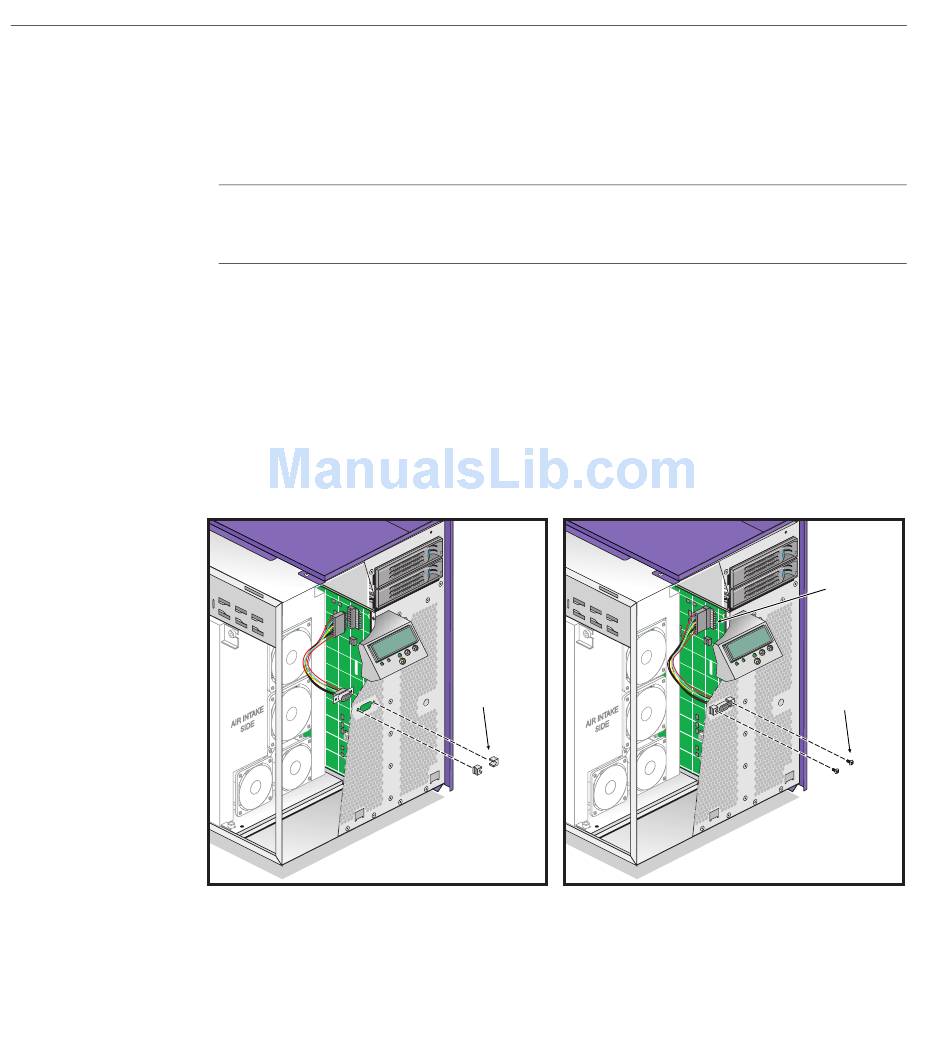

Figure 3-35 Replacing the LED Cable
Latch
blocks
Interface
board
connection
Screws
007-4772-002
