2: System Overview

Internal Hard Disk Drives

28
The Silicon Graphics Prism Deskside visualization system supports one or two internal
hard disk drives. These drives provide the unit with large amounts of storage and quick
access times.
The hard disk drives in the system are sled mounted (see Figure 2-7). The drive sleds
provide a safe and easy way to install and remove the drives. The drive sleds also
provides a positive, locking connection to the backplane, which connects the disk drives
to the base I/O board (see Figure 2-8).

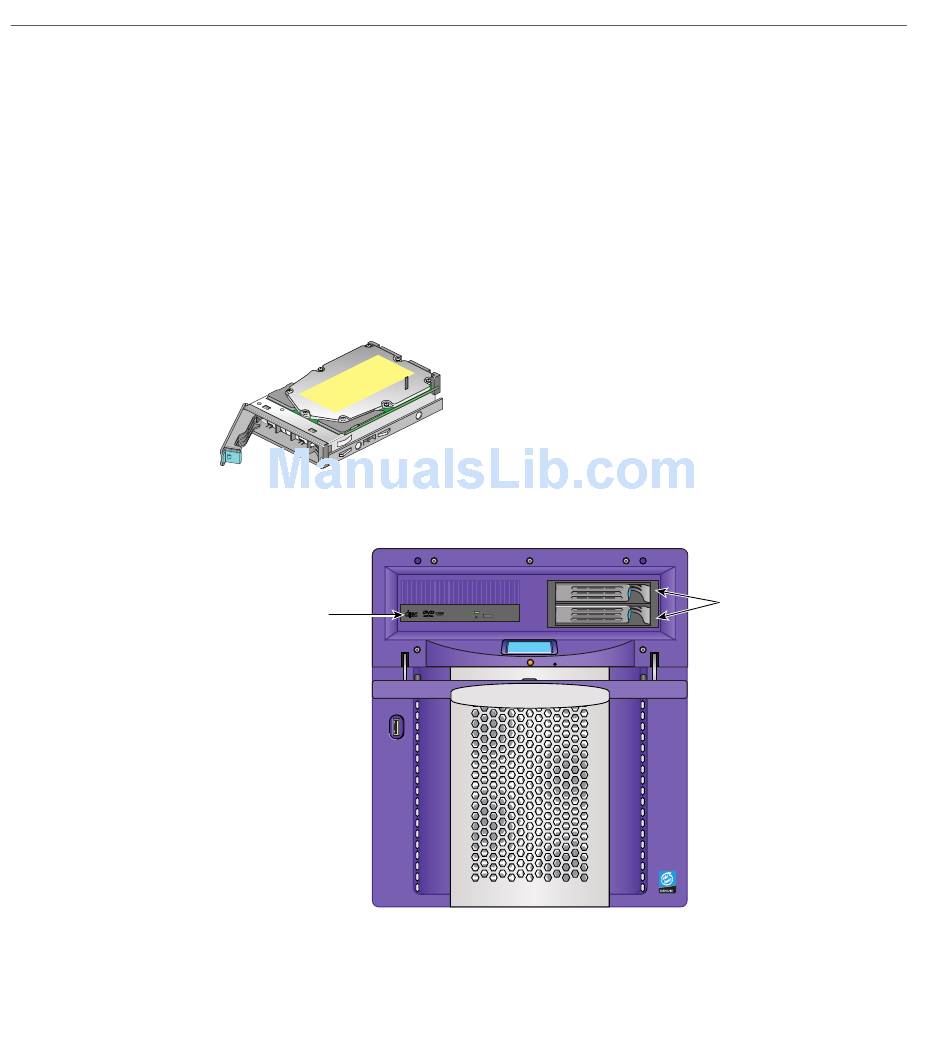

Figure 2-7 Hard Disk Drive Sled
DVD ROM drive
Figure 2-8 Internal Hard Disk Drive Locations
COMPACT
Hard disc
drives
2
