A: Technical Specifications and Pinouts

Serial Console Port

160
The deskside system features one 9-pin serial console port. Figure A-3 shows the serial
console port. The port is capable of transferring data at rates as high as 230 KB/s. Other
features of the port include:
• Programmable data, parity, and stop bits
• Programmable baud rate and modem control

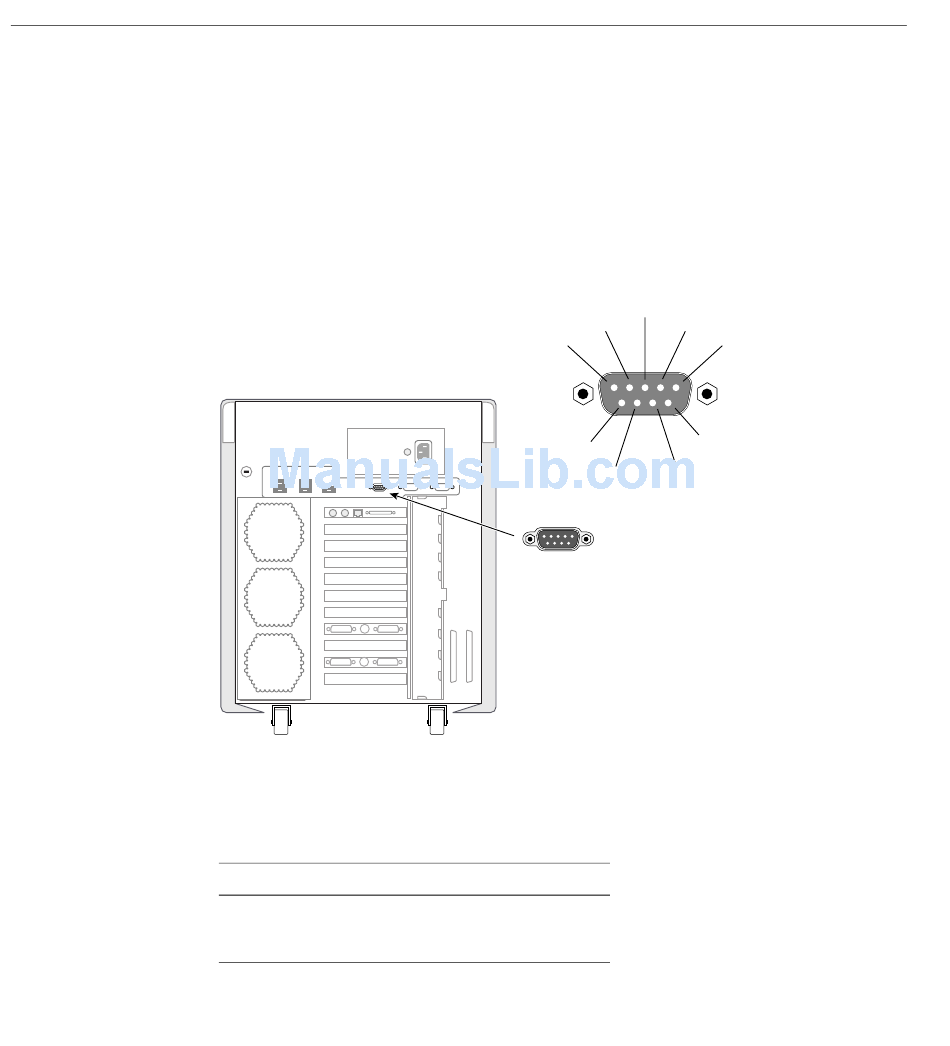

System Console Serial Port Pinout and Location
Figure A-3
Table A-4 shows pinout assignments for the 9-pin male DB-9 serial console connector.
Table A-4 9-Pin Serial Port Pinout
Pin Assignment
1 DCD
2 RXD
Pin 2
Pin 1
Pin 6
Pin 7
Description
Data carrier detect
Receive data
Pin 3
Pin 4
Pin 5
Pin 9
Pin 8
