1: Quick Start Installation and Operation Procedures
12
4. Connect the power cables to your system and monitor. Then plug them into
approved electrical outlets (see Figure 1-8).

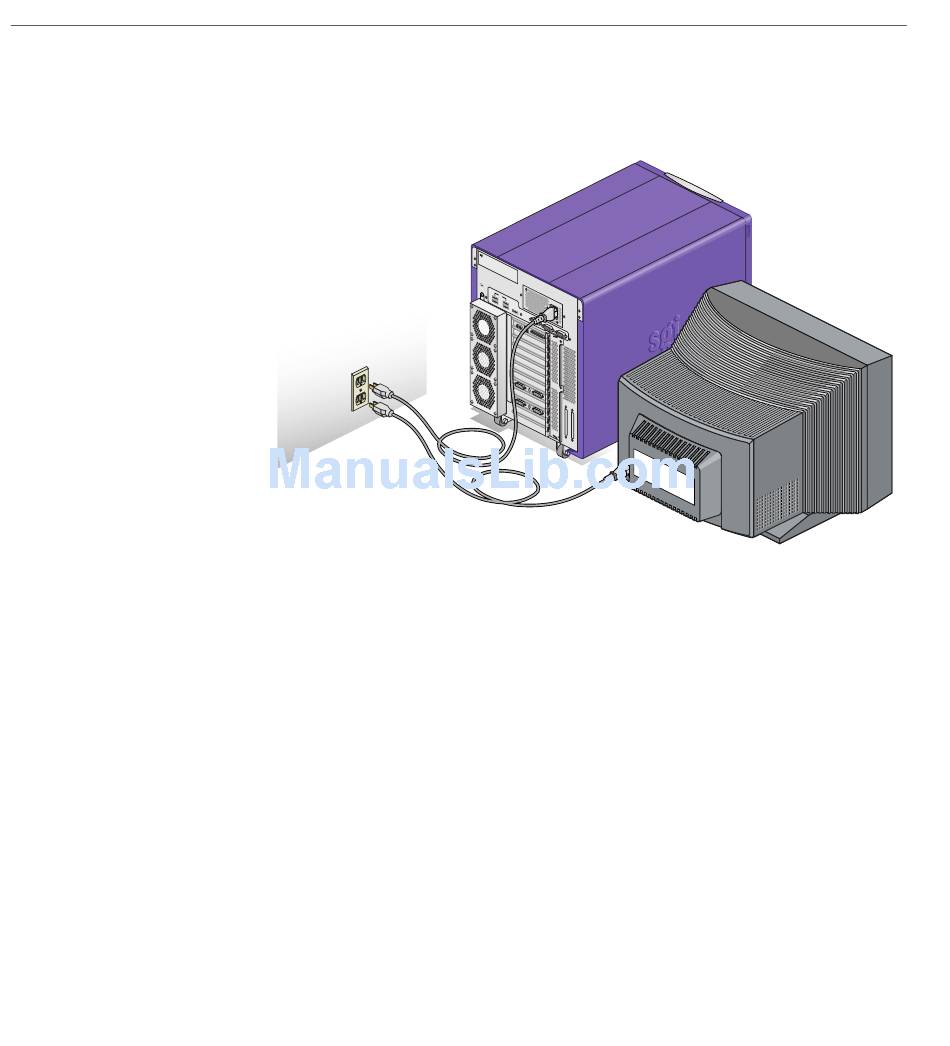

Figure 1-8 Connecting the System and Monitor Power Cables Example
You have finished the quick start setup of your system. Proceed to the next sections for
information on booting, configuration, and use of the visualization system.
US
B
1
2
3
L1 UP
4 LI NK
B1 -S
1
B2 -S
2
B2 -S
1
B3 -S
2
B3 -S
1
B4 -S
2
B4 -S
1
AG
P- 6
AG P- 5
A C
IN
007-4772-002
