Figure 3-38 Installing The L1 Display Board - Silicon Graphics Prism Hardware User's Manual

3: Maintenance and Upgrade Procedures
104
8. Slide the outside cover over the L1 display. Then install the two screws that secure
the L1 display to the front of the enclosure (see Figure 3-38).
This completes the replacement of the L1 display board. To return the system to service,
see "Returning the System to Service" on page 52.
A
C
CT
M PA
CO

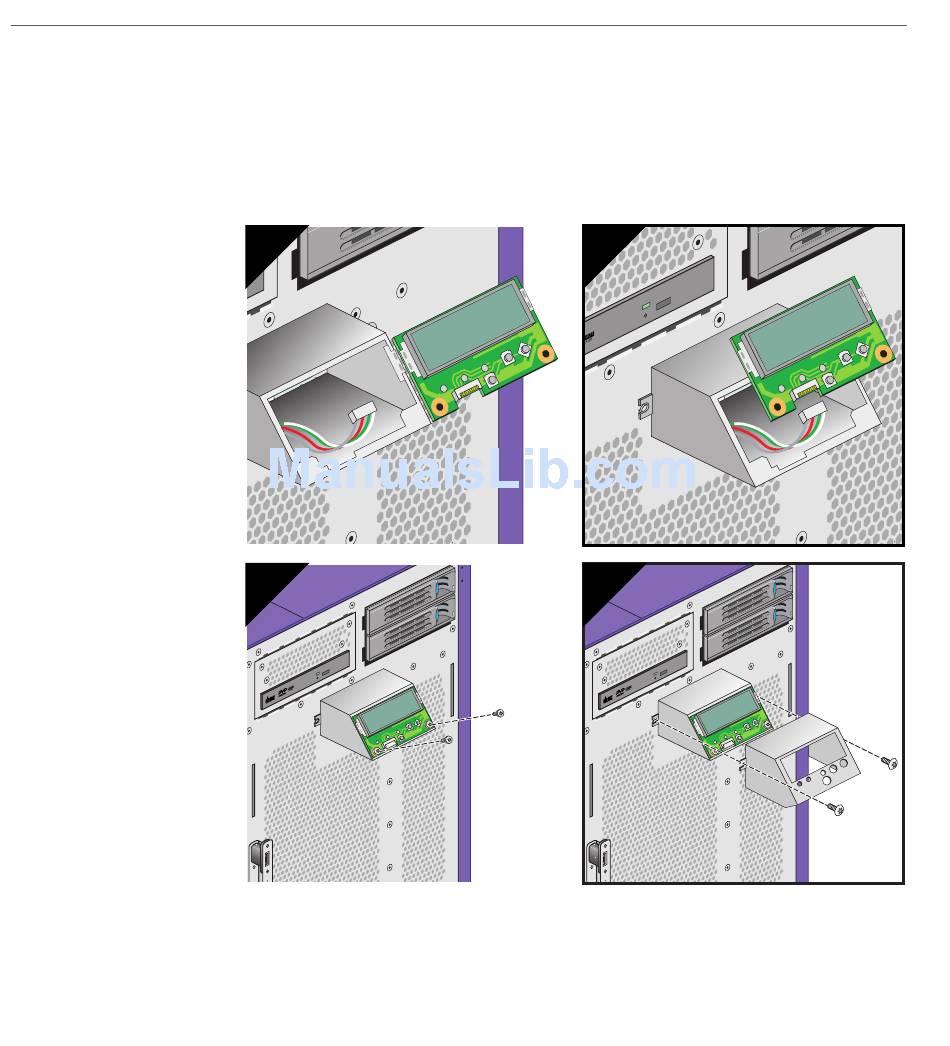

Figure 3-38 Installing the L1 Display Board
