2: System Overview

Graphics Boards

30
The graphics slots are located at the center-rear section of the system (near the bottom of
the enclosure), as shown in Figure 2-9. The graphics board(s) installed are tested and
configured to work with your Silicon Graphics Prism Deskside system. You should not
replace them with graphics cards from other systems unless directed to do so by your
service provider.
Graphics card
Graphics card

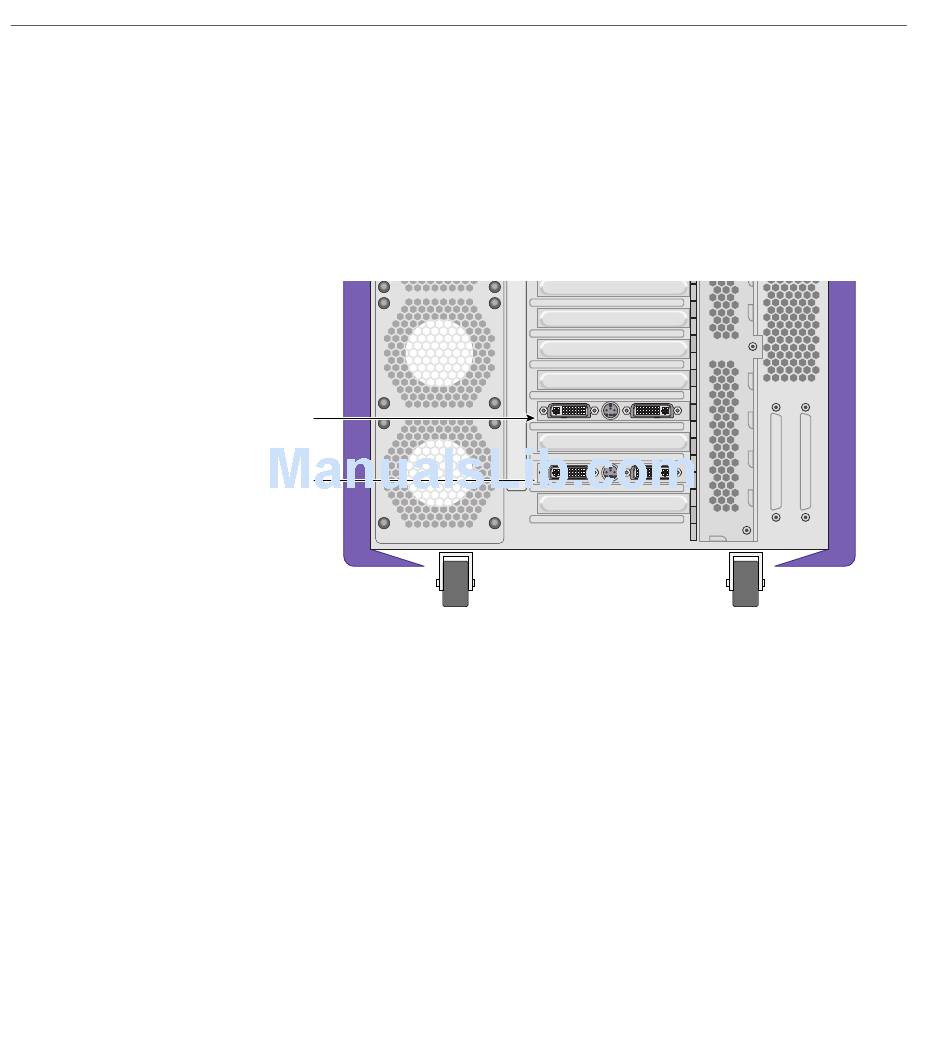

Locating the Graphics Board(s)
Figure 2-9
The Prism deskside system graphics board has the following features:
• Dual DVI-I graphics connectors
• High speed DDR memory
• Full scene anti-aliasing
• AGP 4X/8X support
B3-S2
B3-S1
B4-S2
B4-S1
AGP-5
AGP-6
007-4772-002
