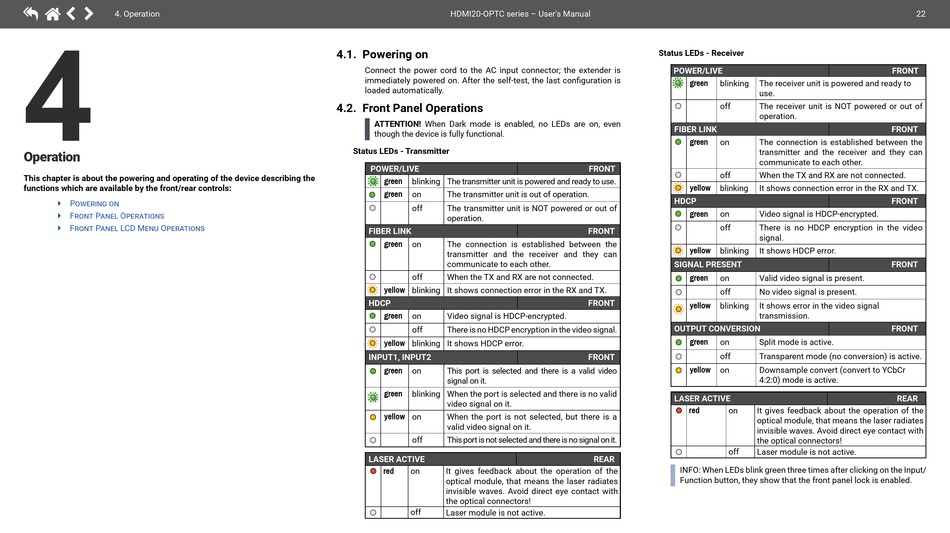

4. Operation

4
O peration
This chapter is about the powering and operating of the device describing the
functions which are available by the front/rear controls:

Powering on

Î

Front Panel Operations

Î
Front Panel LCD Menu Operations
Î
HDMI20-OPTC series – User's Manual
4.1. Powering on
Connect the power cord to the AC input connector; the extender is
immediately powered on. After the self-test, the last configuration is
loaded automatically.
4.2. Front Panel Operations
ATTENTION! When Dark mode is enabled, no LEDs are on, even
though the device is fully functional.
Status LEDs - Transmitter
POWER/LIVE
blinking The transmitter unit is powered and ready to use.
green
on The transmitter unit is out of operation.
green
off The transmitter unit is NOT powered or out of
operation.
FIBER LINK
green on The connection is established between the
transmitter and the receiver and they can
communicate to each other.
off When the TX and RX are not connected.
yellow blinking It shows connection error in the RX and TX.
HDCP
green on Video signal is HDCP-encrypted.
off There is no HDCP encryption in the video signal.
yellow blinking It shows HDCP error.
INPUT1, INPUT2
green on This port is selected and there is a valid video
signal on it.
blinking When the port is selected and there is no valid
green
video signal on it.
yellow on When the port is not selected, but there is a
valid video signal on it.
off This port is not selected and there is no signal on it.
LASER ACTIVE
red on It gives feedback about the operation of the
optical module, that means the laser radiates
invisible waves. Avoid direct eye contact with
the optical connectors!
off Laser module is not active.
Status LEDs - Receiver
POWER/LIVE
blinking The receiver unit is powered and ready to
green
use.
off The receiver unit is NOT powered or out of
operation.
FIBER LINK
green on The connection is established between the
transmitter and the receiver and they can
communicate to each other.
FRONT
off When the TX and RX are not connected.
yellow blinking It shows connection error in the RX and TX.
HDCP
green on Video signal is HDCP-encrypted.
off There is no HDCP encryption in the video
FRONT
signal.
blinking It shows HDCP error.
yellow
SIGNAL PRESENT
green on Valid video signal is present.
off No video signal is present.
FRONT
blinking It shows error in the video signal
yellow
transmission.
OUTPUT CONVERSION
green on Split mode is active.
off Transparent mode (no conversion) is active.
FRONT
yellow on Downsample convert (convert to YCbCr
4:2:0) mode is active.
LASER ACTIVE
on It gives feedback about the operation of the
red
optical module, that means the laser radiates
invisible waves. Avoid direct eye contact with
the optical connectors!
off
Laser module is not active.
REAR
INFO: When LEDs blink green three times after clicking on the Input/
Function button, they show that the front panel lock is enabled.
