Installing a DIMM

007-4564-001
Note: The workstation will not function if there are no memory DIMMs installed. Two
memory DIMMs of equal size must be installed in DIMM pair number 1.
To install a DIMM, follow these steps:
Caution: DIMMs are sensitive to static electricity. Be sure to wear the anti-static wrist
strap while you complete these steps.
1. Rotate the ejector latches on each end of the socket so that they stick straight out, as
shown in Figure 3-9.

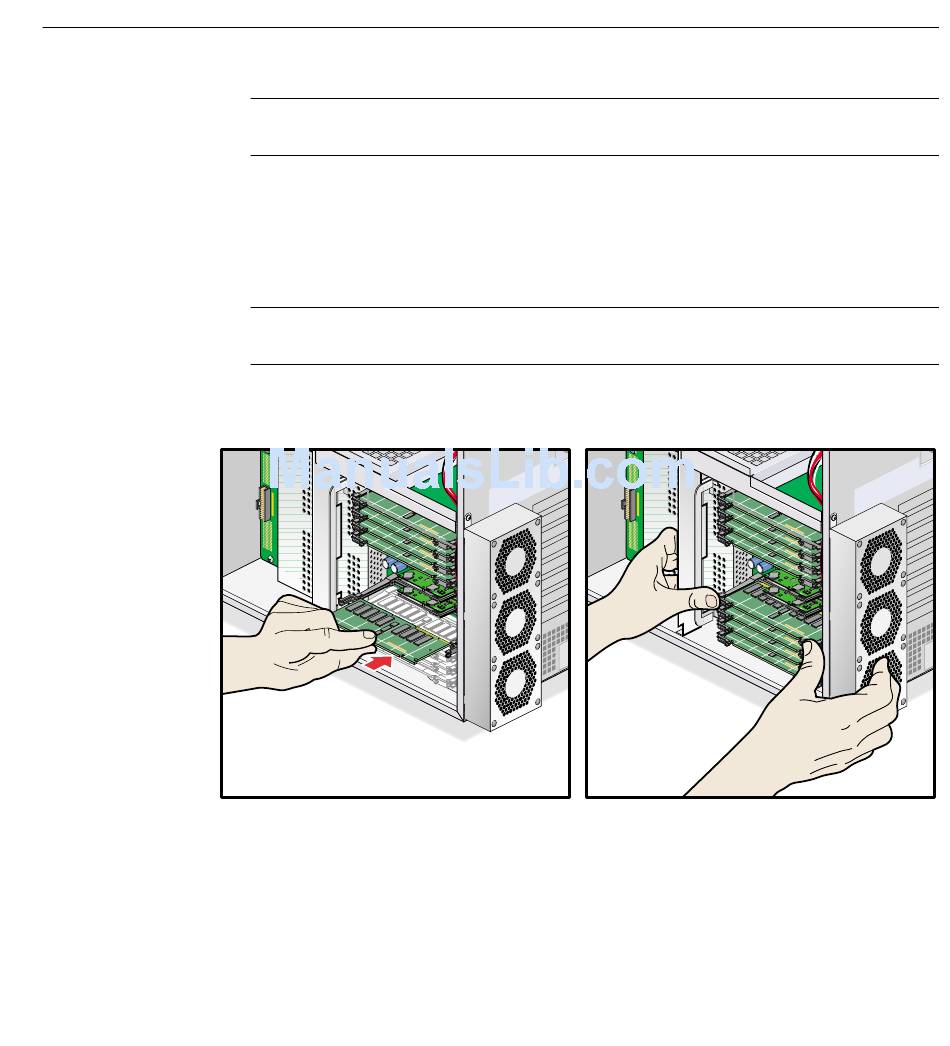

Figure 3-9 Installing a DIMM
2. Align the DIMM with the socket. Make sure that the notches on the bottom of the
DIMM align with the protrusions in the bottom of the socket (see Figure 3-10).
