Stereo View Port

140

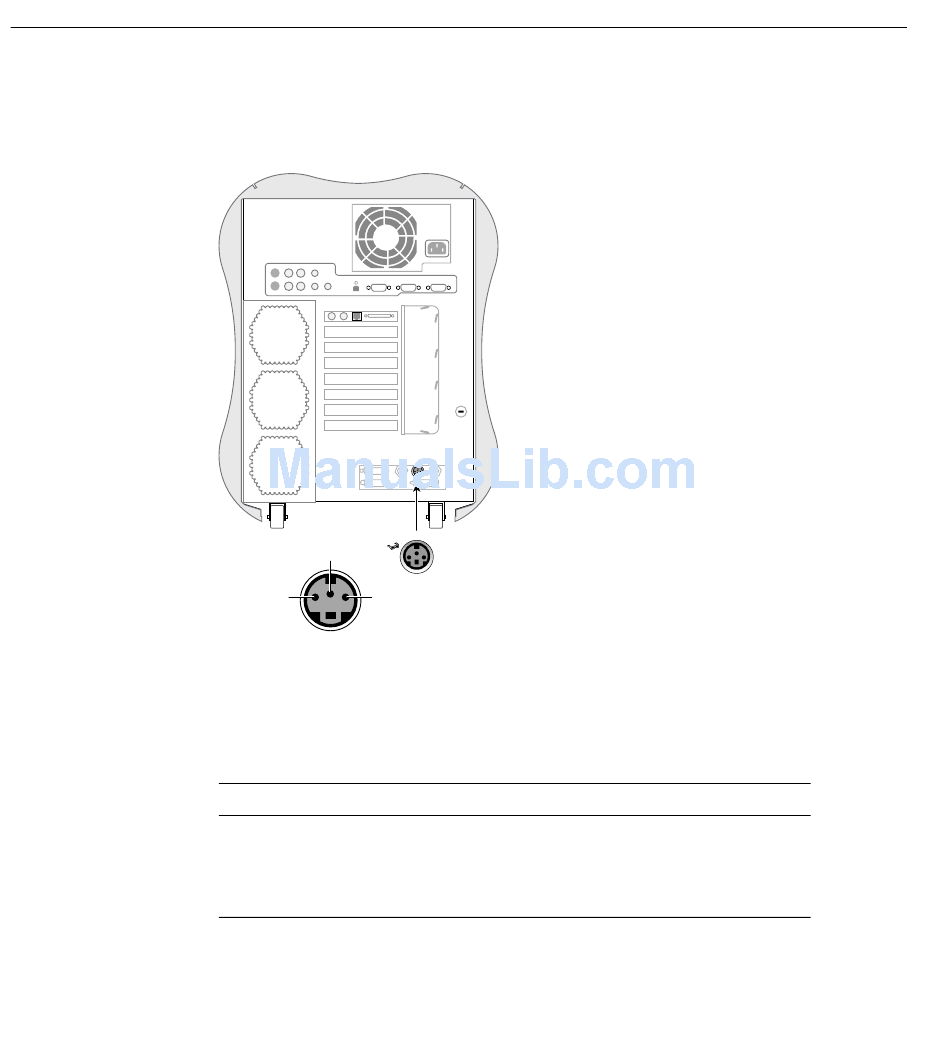

The following diagram shows the Stereo View port.
3
2 1
StereoView Port Pinout and Location
Figure A-5
Table A-12 shows the cable pinout assignments for the Stereo View port on the VPro
graphics board.
Stereo View Pinout Assignments
Table A-12
Pin Assignment
1 +12 VDC output to Stereo View device
2 Ground
3 Stereo left/right Eye signal (1=left, 0=right) (STEREO_LEFT)
