Replacing Internal Cables

007-4564-001

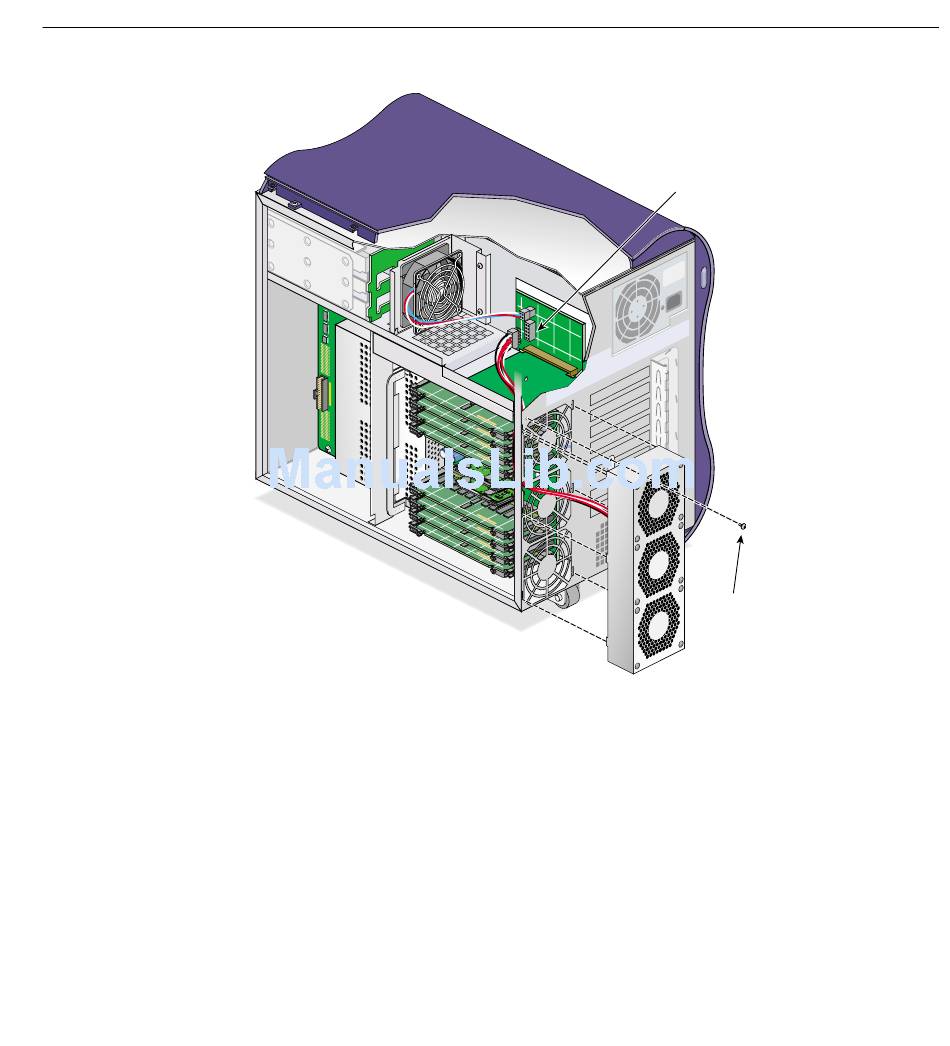

Figure 3-36 Replacing the Rear Fan Assembly
This completes the replacement of the rear fan assembly. To return the workstation to
service, see "Returning the Workstation to Service" on page 57.
The following sections contain instructions for replacing internal cables:
• "Replacing the L1 Display Cable" on page 100
• "Replacing the LED Cable" on page 103
Replacing Internal Cables
Rear fan power
connection
Rear fan
retaining screw
