3: Maintenance and Upgrade Procedures
72

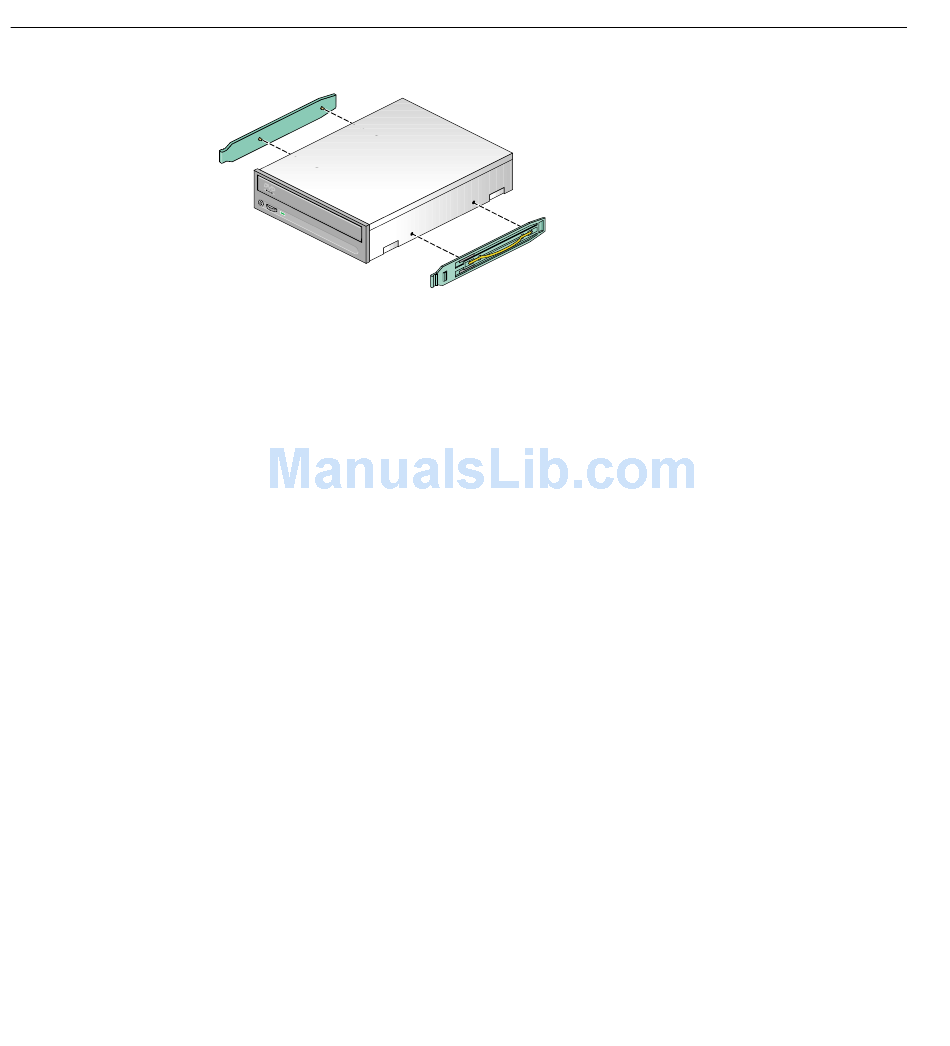

Figure 3-13 Installing the Drive Rails
3. Align the drive rails with the slots in the side of the drive cage and slide the drive
into the drive cage until it clicks into place (see Figure 3-14).
4. Connect the IDE cable as follows (see Figure 3-14):
a. Insert one end of the IDE cable into the IDE connector on the rear of the drive.
b. Open the latches of the IDE connector on the IO9 board. Then, insert the other
end of the IDE cable into the IO9 board IDE connector.
c. Close the latches on the IO9 board IDE connector. Press the IO9 board into the
interface board connectors to ensure that it is properly seated.
5. Connect the power cable to the rear of the drive (see Figure 3-14).
007-4564-001
