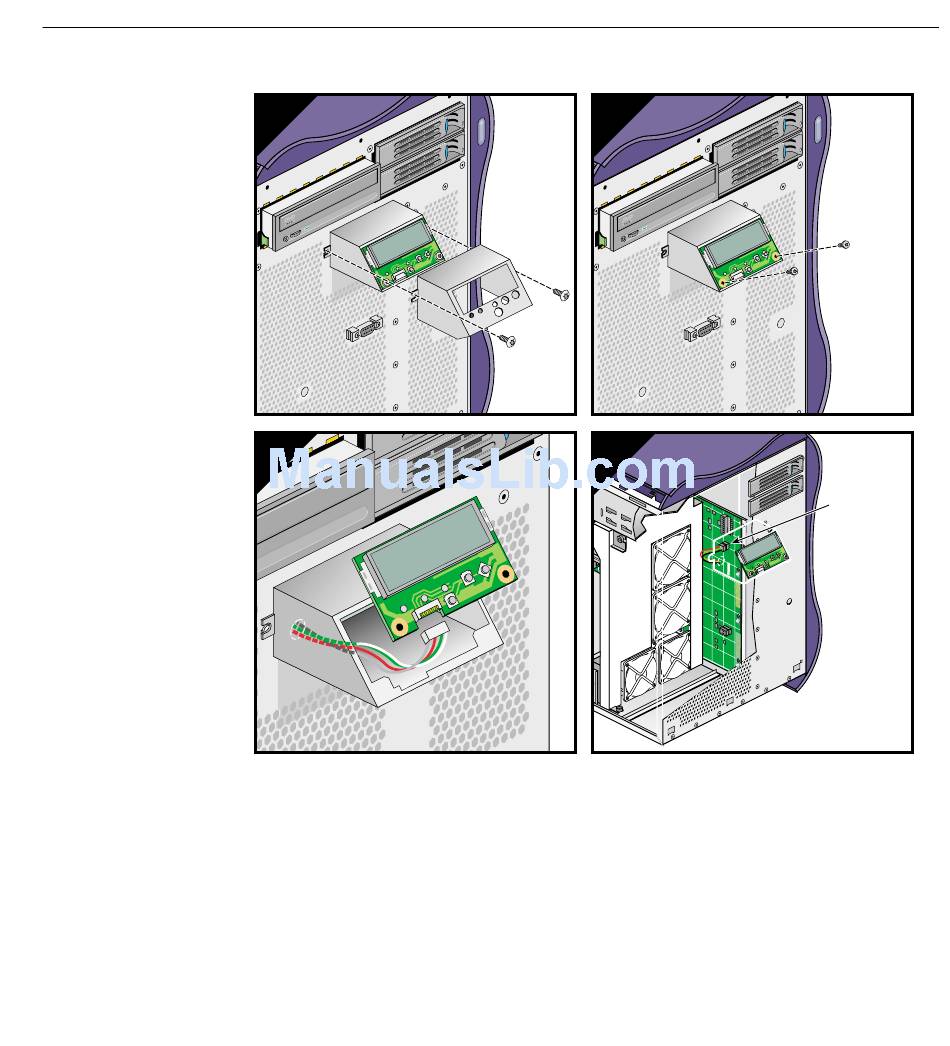

Figure 3-37 Removing The L1 Display Cable - Silicon Graphics Tezro Hardware User's Manual

007-4564-001
A
C
Removing the L1 Display Cable
Figure 3-37
7. If the replacement L1 display cable does not already have a grommet installed on it,
install the grommet now.
8. Push the L1 display board connector of the replacement L1 display cable out
through the hole in the front of the enclosure. Then seat the grommet in the hole
(see Figure 3-38).
Replacing Internal Cables
B
D
L1 display
connector
