A: Technical Specifications and Pinouts

Swap Ready Port

142
The following diagram shows the Swap Ready port.
1
2

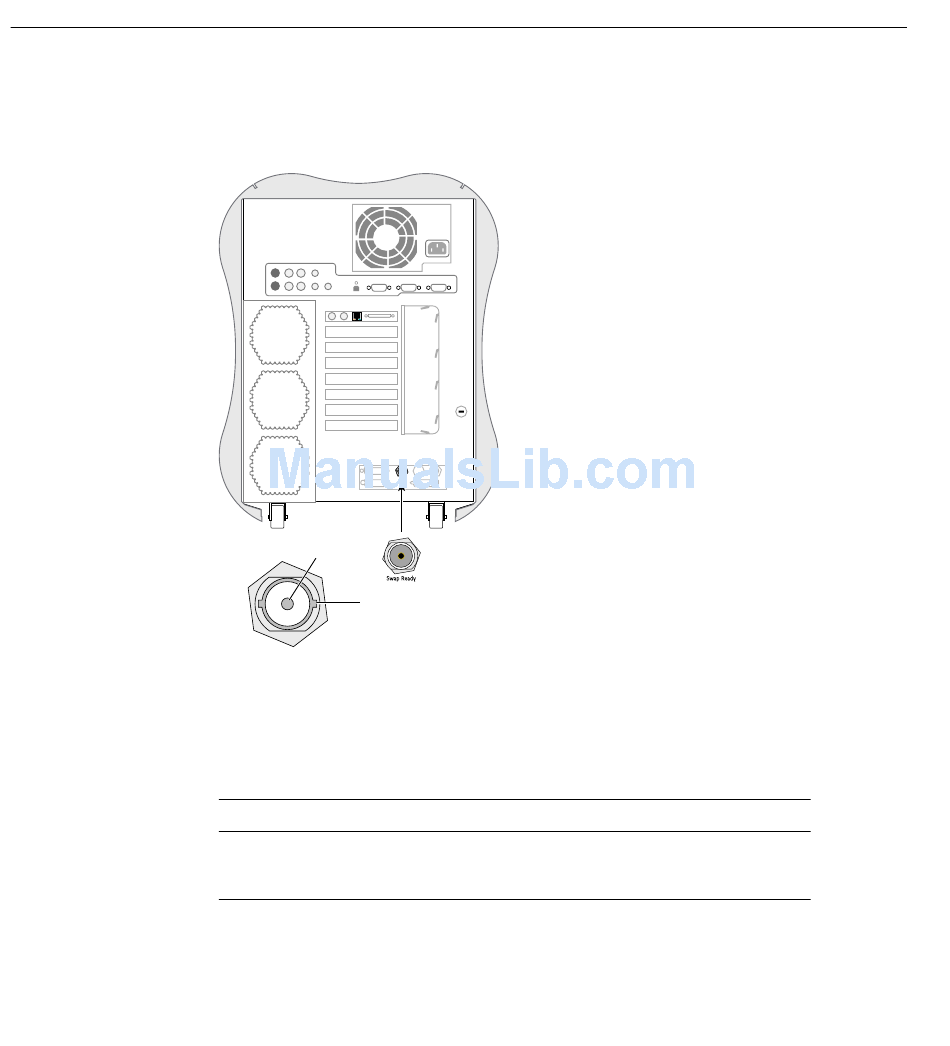

Figure A-7 Swap Ready Port Pinout and Location
Table A-14 shows the cable pinout assignments for the Swap Ready port on the VPro
graphics board.
Swap Ready Pinout Assignments
Table A-14
Pin Assignment
1 Swapbuffer gang sync open Collector I/O
2 Signal return ground
